ADJUSTMENTS

RECOMMENDATIONS FOR ADJUSTMENTS

Important

• The user must follow the procedures described in this manual when making

any adjustments. Do not make any adjustment which is not expressly indicated

in this manual.

• Any special adjustments, not expressly indicated in this manual, must only be

carried out by personnel from the Manufacturer’s Authorised Service Centres.

ADJUSTMENT OF CUTTING HEIGHT

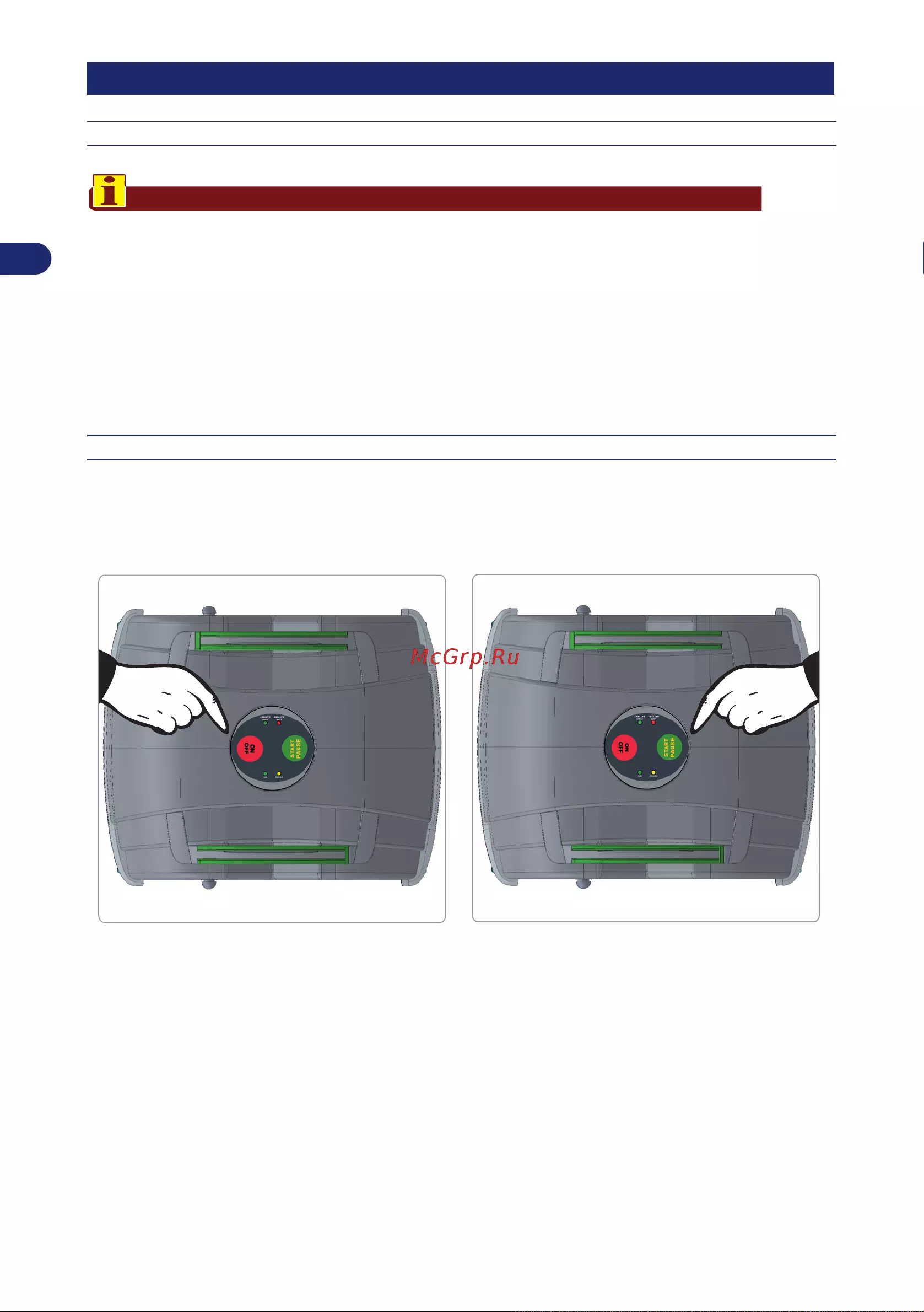

1 – Stop the robot safely by

pressing the ON/OFF key (see

“Robot safety stop”, page 34).

2 – Turn over the robot and

position it so as not to ruin the

covering hood.

Important

Use protective gloves to

prevent injury to your hands.

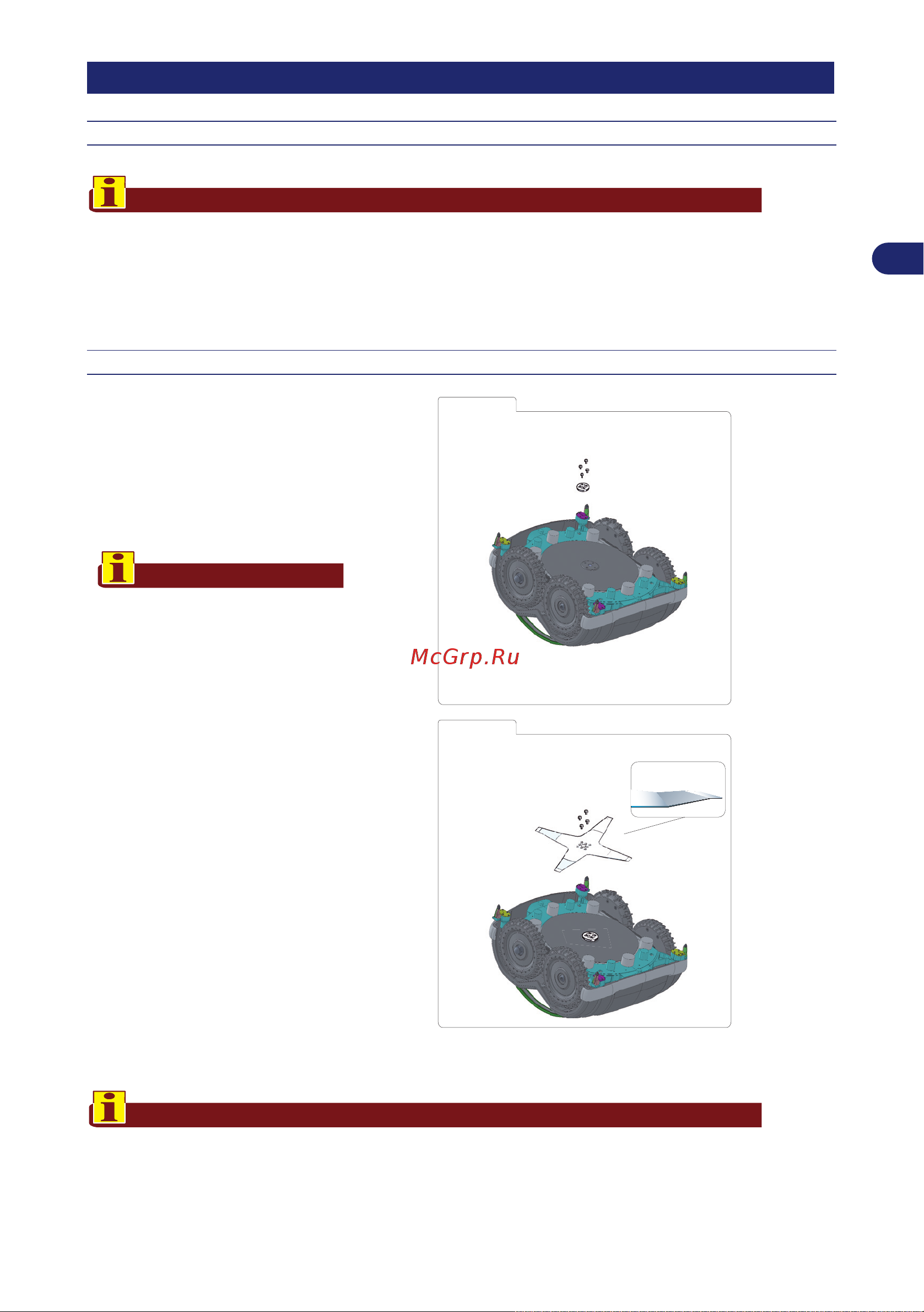

3 – Unscrew the screws to

remove the blade.

4 – Insert one or more spacers

to adjust the cutting height as

shown in the table on page 9.

5 – Reposition the blade (see

page 43) and fasten the screws.

6 – Turn the robot over to its

operating position.

INSERTING SPACERS

WITH SCREWS

INSERTING BLADE

WITH SCREWS

check that the slope of the blade,

with the robot in the start position,

is facing downwards.

Important

Reduce the cutting height gradually. It is recommended to add the spancer

every 2÷3 days until the ideal height of the grassy surface is reached gradually.
