User’s manual

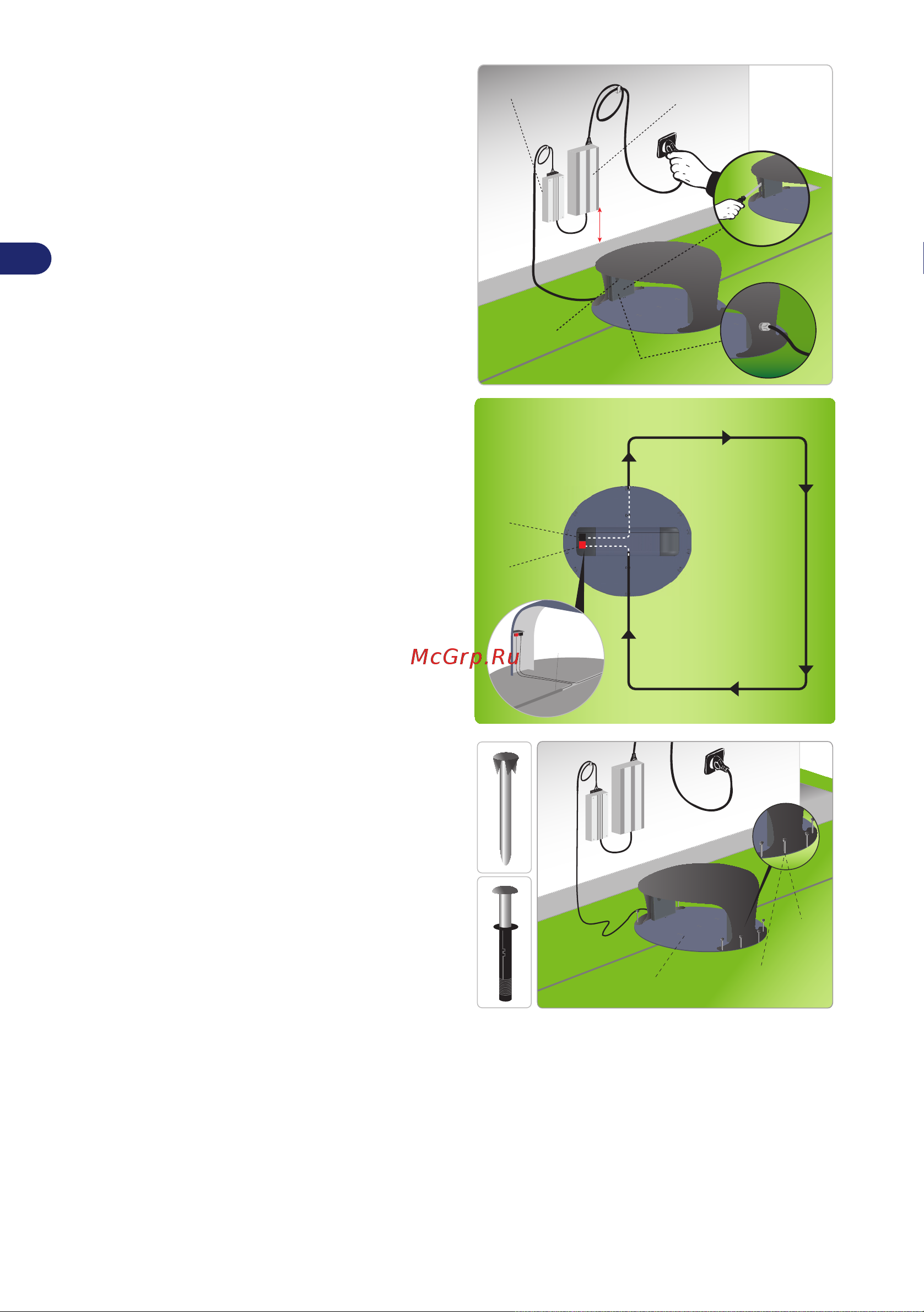

- Remove the protection (L).

current power supply unit (A)

protection (L)

transmitter (B)

H. min. 160 cm

(63.00 inc.)

- Insert the guide wire (M) under the base.

- Connect the two ends of the wire to the

terminals of the base. The incoming and

outgoing wires must not intersect (see the

 gure).

- Connect the power cord of the charging

station to the transmitter (B).

- Connect the plug of the power supply unit

(A) to the electrical outlet. If the LED  ashes,

the connection is correct. If not, search for

the fault (see “Troubleshooting Guide”).

red terminal

black terminal

perimeter wire (M)

- Replace the protection (L).

- Fasten the base (N) to the ground with the

pegs (P).

pegs (P)

screw anchors (Q)

charging station (N)
