Parameter listing and descriptions 193
ACH550-02 User's Manual
20 = KEYPAD(RNC) – Defines the control panel as the reference source.
A Stop command resets the reference to zero (the
R stands for
reset.). Changing the control source (
EXT1 to EXT2, EXT2 to EXT1)
does not copy the reference.
21 =
KEYPAD(NC) – Defines the control panel as the reference source. A
Stop command does not reset the reference to zero. The reference is
stored. Changing the control source (
EXT1 to EXT2, EXT2 to EXT1)
does not copy the reference.
Analogue input reference correction
Parameter values 9, 10, and 14…17 use the formula in the following
table.
Where:
• C = Main reference value
(=
COMM for values 9, 10 and = AI1 for values 14…17).
• B = Correcting reference
(=
AI1 for values 9, 10 and = AI2 for values 14…17).

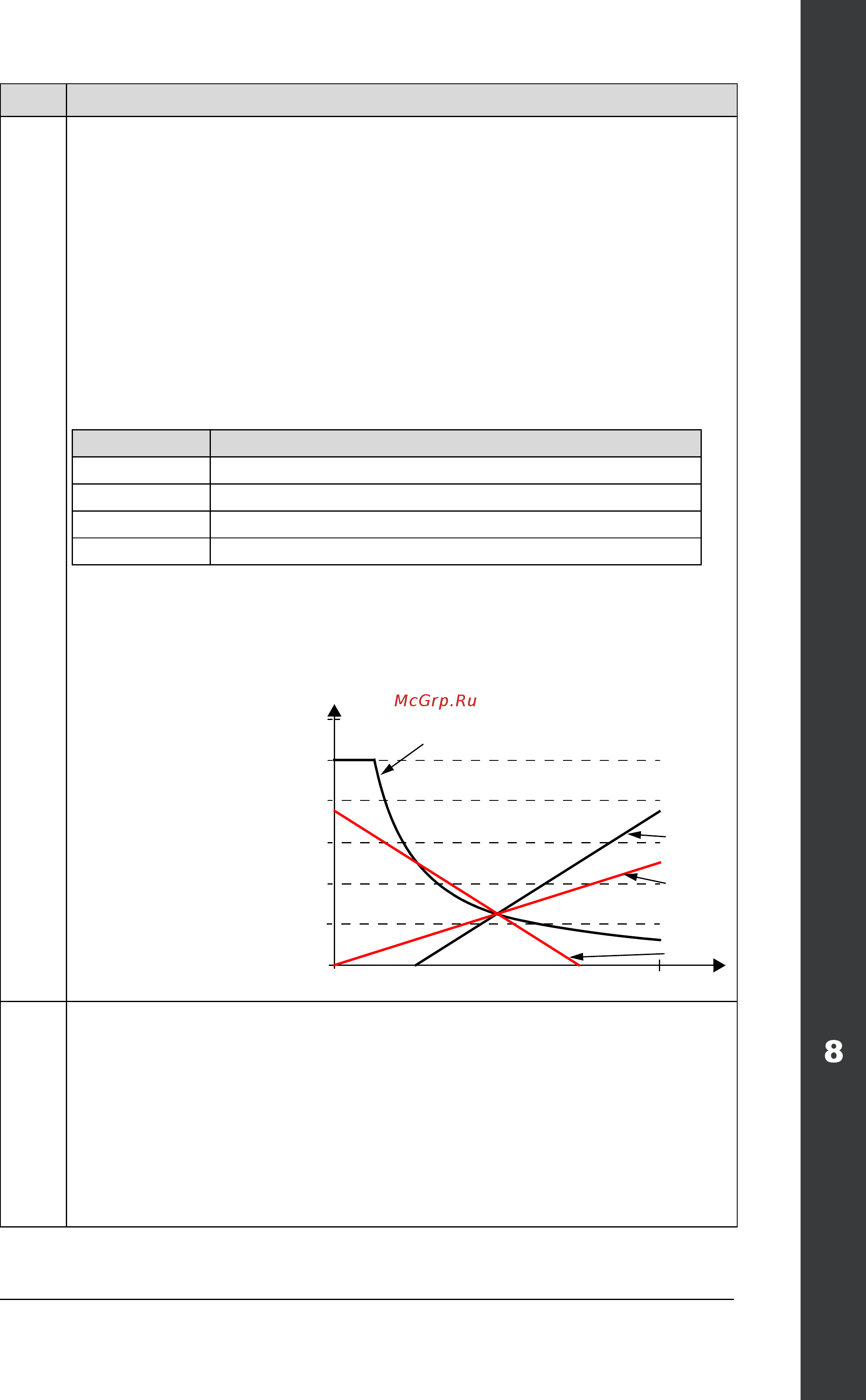

Example: The figure
shows the reference
source curves for
value settings 9, 10,
and 14…17, where:
•C = 25%.
• P 4012
SETPOINT
MIN = 0.
• P 4013
SETPOINT
MAX = 0.
• B varies along the
horizontal axis.
1104 REF1 MIN 0…500 Hz /
0…30000 rpm
Sets the minimum for external reference 1.
• The minimum analogue input signal (as a percentage of the full signal
in volts or amperes) corresponds to
REF1 MIN in Hz/rpm.
• Parameter 1301
MINIMUM AI1 or 1304 MINIMUM AI2 sets the minimum
analogue input signal.
• These parameters (reference and analogue min. and max. settings)
provide scale and offset adjustment for the reference.
Code Description Range
Value setting Calculation of the AI reference
C + B C value + (B value - 50% of reference value)
C
*
B C value · (B value / 50% of reference value)
C - B (C value + 50% of reference value) - B value
C / B (C value · 50% of reference value) / B value
120
100
80
60
40
20
0
0
100%
9, 14 (+)
16 (-)
10, 15 (
*
)
17 (/)
B
