ABB ACH550-02-645A-4 [38/454] Cabling instructions

34 Preparing for installation

ACH550-02 User’s Manual

Cabling instructions

Keep individual unshielded wires between the cable lead-

through plate and the terminals as short as possible. Route

control cables away from power cables.

Input power (mains) cables

See section Input power (mains) cables, fuses and circuit

breakers on page 398.

Motor and supply cables

See section Motor connection on page 404 for the maximum

motor cable lengths meeting the IEC/EN 61800-3 requirements

for category C2 or C3, as applicable.

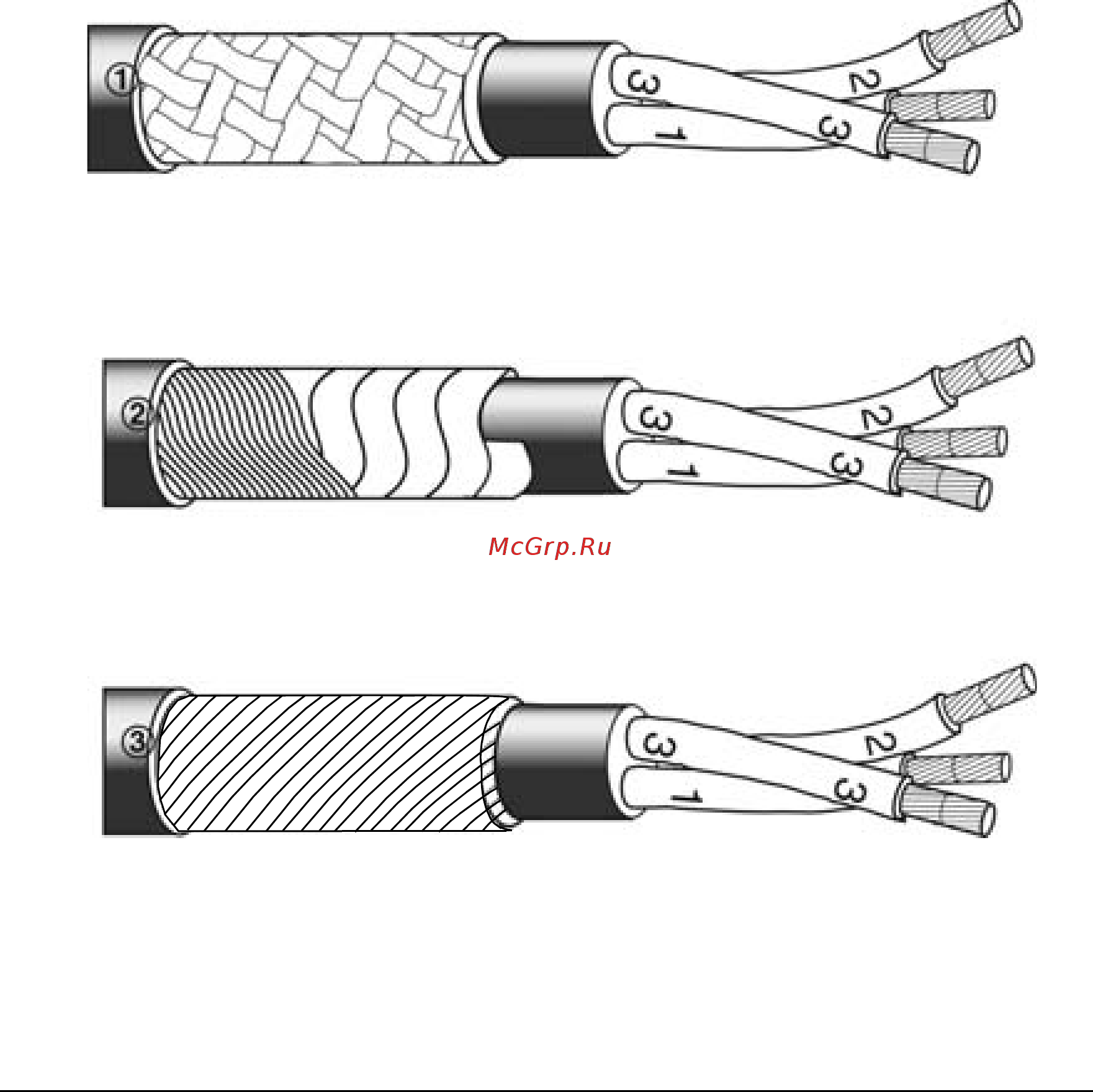

The figure below shows the minimum requirements for the motor

cable shield.

Galvanised steel or tinned copper wire with braided shield.

Layer of copper tape with concentric layer of copper wire.

Concentric layer of copper wire.
