Parameter listing and descriptions 209
ACH550-02 User's Manual
1502 AO1 CONTENT MIN -
Sets the minimum
content value.
• Content is the
parameter
selected by
parameter 1501.
• Minimum value
refers to the
minimum content
value that will be
converted to an
analogue output.
•These
parameters
(content and
current min. and
max. settings)
provide scale
and offset
adjustment for

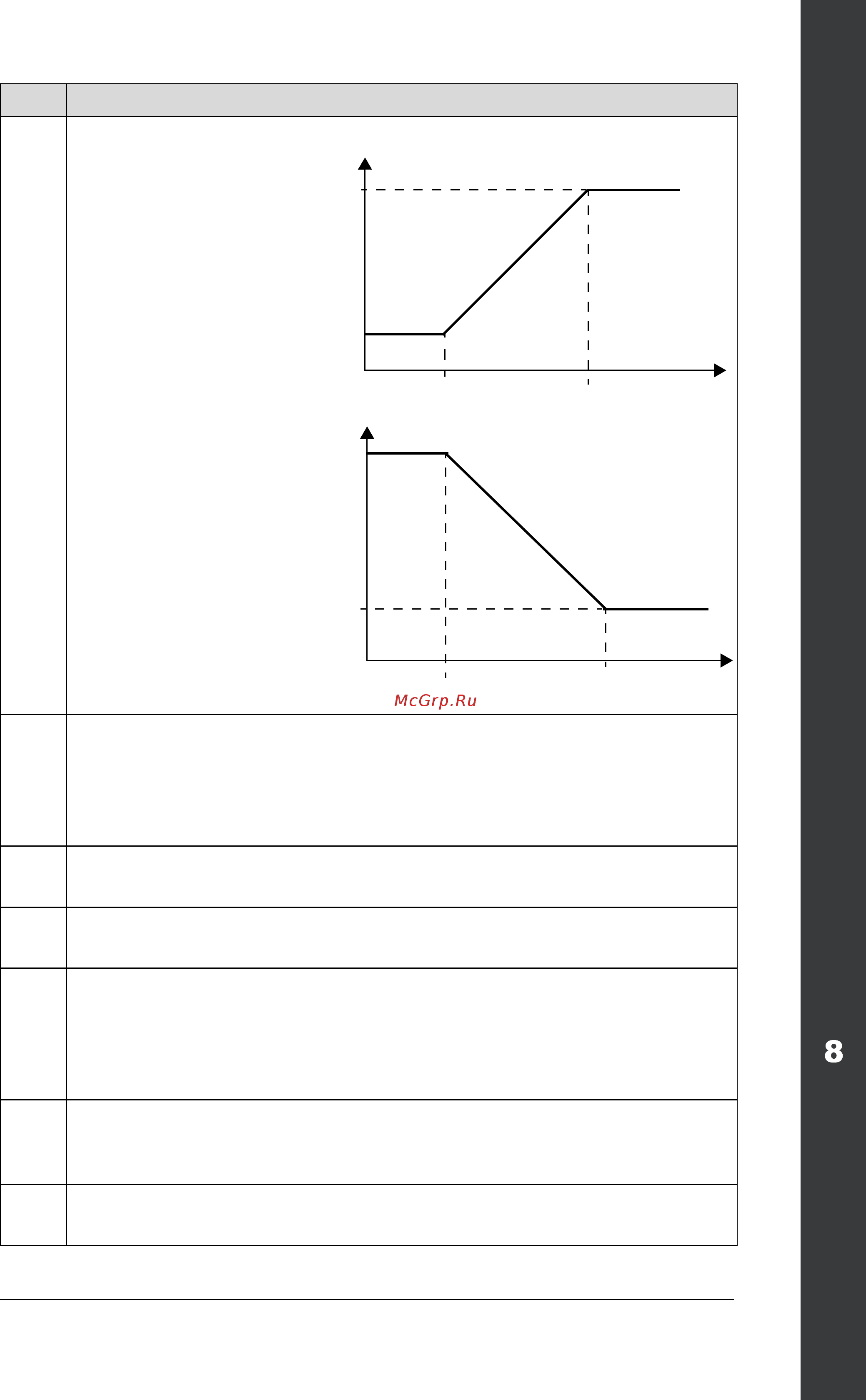

the output. See
the figure.
1503 AO1 CONTENT MAX -
Sets the maximum content value
• Content is the parameter selected by parameter 1501.
• Maximum value refers to the maximum content value that will be
converted to an analogue output.
1504 MINIMUM AO1 0.0…20.0 mA
Sets the minimum output current.
1505 MAXIMUM AO1 0.0…20.0 mA
Sets the maximum output current.
1506 FILTER AO1 0.0…10.0 s
Defines the filter time constant for
AO1.
• The filtered signal reaches 63% of a step change within the time
specified.
• See the figure for parameter 1303.
1507 AO2 CONTENT SEL 99…178
Defines the content for analogue output
AO2. See AO1 CONTENT SEL
above.
1508 AO2 CONTENT MIN -
Sets the minimum content value. See
AO1CONTENT MIN above.
Code Description Range
AO (mA)
AO CONTENT
P 1504 /
P 1502/1508
P 1503/1509
AO (mA)
AO CONTENT
P 1505 /
P 1504 /
P 1503/1509
P 1502/1508
P 1505 /
P 1511
P 1510
P 1511
P 1510
