48 Installing the drive
ACH550-02 User’s Manual
Installation, mounting orientations a and b
Refer to the figure on page 28 for the different orientations.
Removing the pedestal

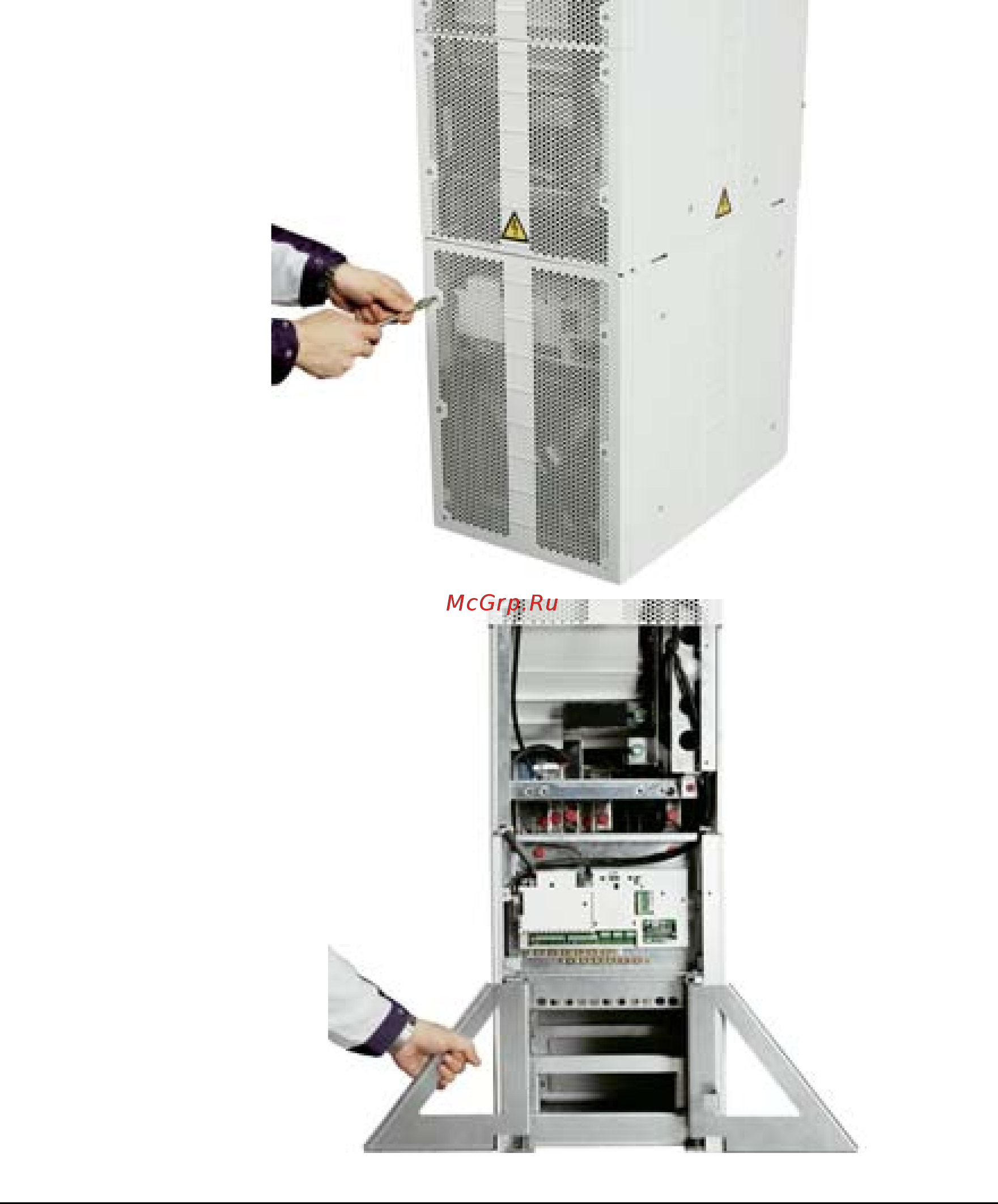

1. Remove the lower front covers by undoing the fixing
screws.
2. Press the left support leg a little down and turn it left. Let it
lock down. Turn the right leg aside in the same way. The
legs will prevent the drive from falling down during the
installation.
1
2
