64 Installing the drive
ACH550-02 User’s Manual
Settings of the cooling fan transformer
The voltage transformer of the cooling fan is located at the top
right-hand corner of the drive.

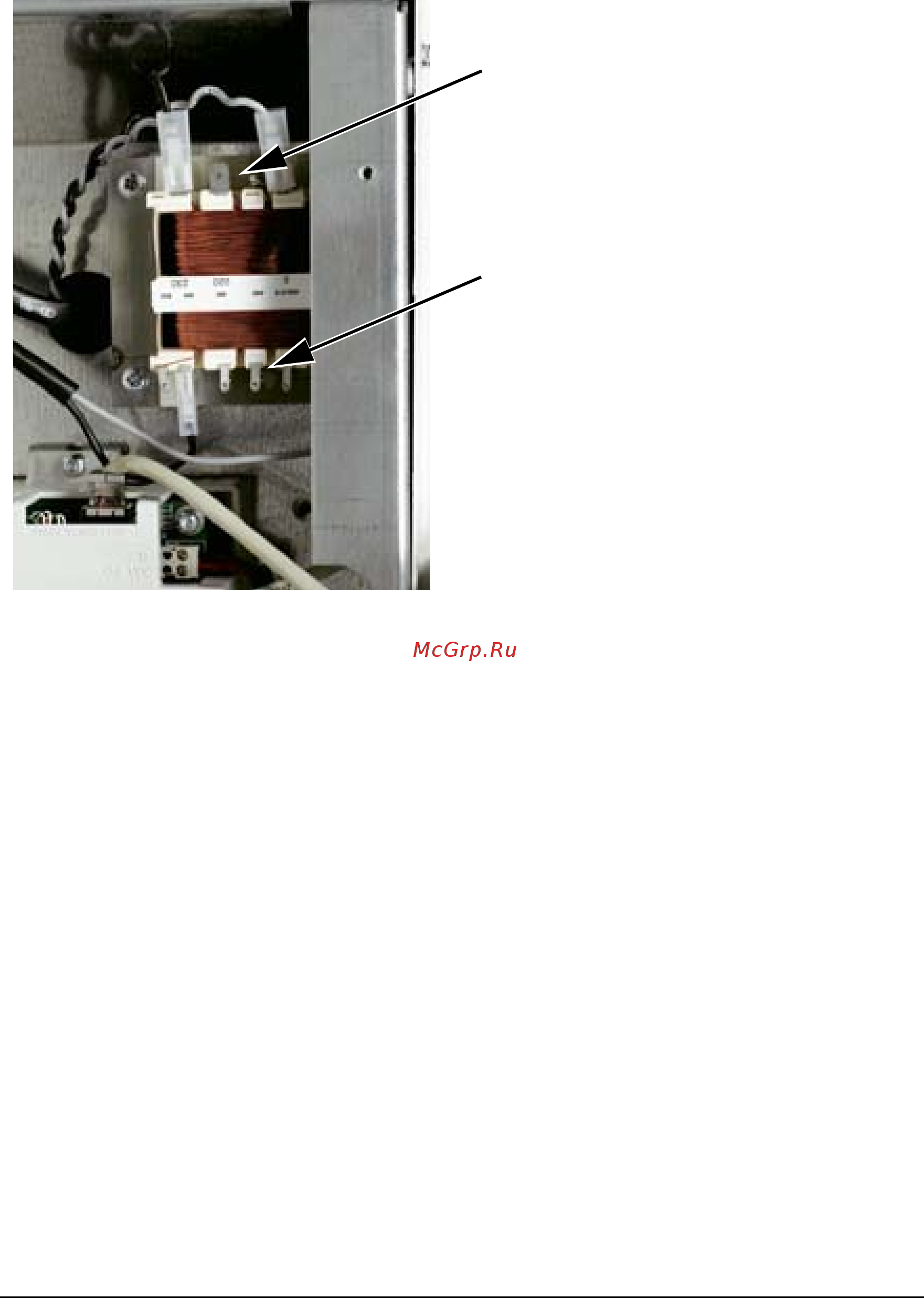

The following below shows the settings of the cooling fan
transformer.
Set to 220 V if the supply
frequency is 60 Hz. (The voltage
is set to 230 V (50 Hz) at the
factory.)
Set according to the supply
voltage: 380 V, 400 V, 415 V,
440 V, 460 V, 480 V.
