Start-up and control panel 91
ACH550-02 User's Manual

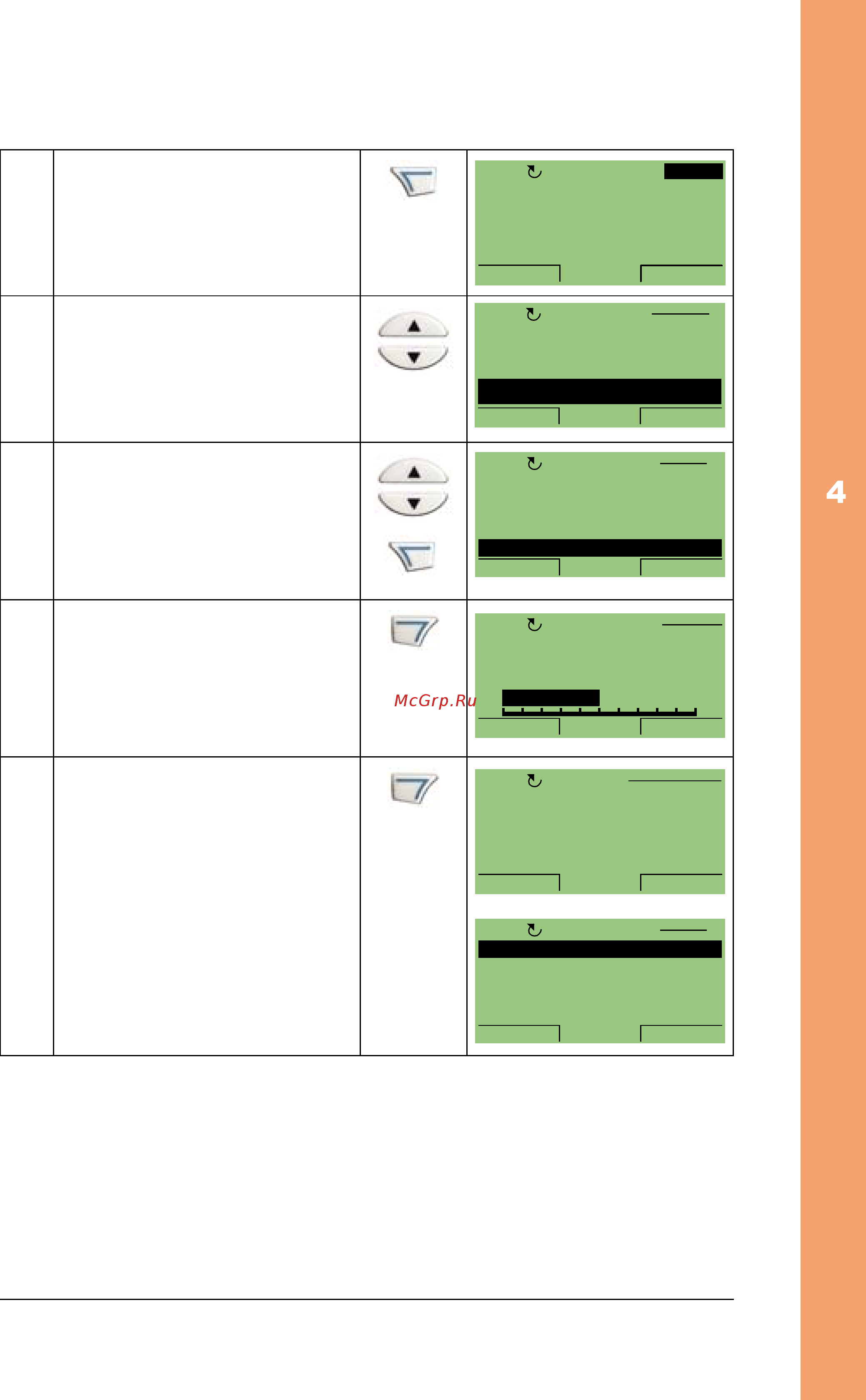

To download the user set 1, user set 2 or override set to a drive,
follow these steps:
1 Press MENU to go to the
main menu.
2 Select PAR BACKUP with
the UP/DOWN keys.
3 Scroll to DOWNLOAD
USER SET1 / USER SET2
/ OVERR SET and press
SEL. Note that the drive
has to be in the OFF mode
for downloading user sets.
4 Text “Downloading
parameters (user set 1 /
user set 2 / override set)” is
displayed. Press ABORT if
you want to stop the
process.
5 After the download stops,
the message “Parameter
download successfully
completed.” is displayed.
Press OK to return to the
PAR BACKUP menu.
Press EXIT twice to go to
the main menu.
0 A
0 Hz
0 %0.
0.
0.
0.0Hz
OFF
MENU
00:00
FAULT LOGGER
TIME & DATE
PAR BACKUP
EXIT ENTER
00:00
OFF
MAIN MENU 6
UPLOAD TO PANEL
BACKUP INFO
DOWNLOAD FULL SET
DOWNLOAD APPLICATION
DOWNLOAD USER SET1
PAR BACKUP 5
EXIT
SEL
00:00
OFF
ABORT
00:00
51%
PAR BACKUP
OFF
Downloading
parameters (user
set 1)
Parameter download
successfully
completed.
MESSAGE
OK
00:00
OFF
UPLOAD TO PANEL
BACKUP INFO
DOWNLOAD FULL SET
DOWNLOAD APPLICATION
DOWNLOAD USER SET1
PAR BACKUP 1
EXIT
SEL
00:00
OFF
