Parameter listing and descriptions 239
ACH550-02 User's Manual
Group 26: MOTOR CONTROL
This group defines variables used for motor control.
Code Description Range
2601 FLUX OPT ENABLE 0=OFF, 1=ON
Changes the magnitude of the flux depending on the actual load. Flux
Optimization can reduce the total energy consumption and noise, and it
should be enabled for drives that usually operate below nominal load.
0 =
OFF – Disables the feature.
1 =
ON – Enables the feature.
2602 FLUX BRAKING 0=OFF, 1=ON
Provides faster deceleration by raising the level of magnetisation in the
motor when needed, instead of limiting the deceleration ramp. By
increasing the flux in the motor, the energy of the mechanical system is
changed to thermal energy in the motor.
• The flux braking works in vector control mode only, i.e. when
parameter 9904
MOTOR CTRL MODE = 1 (VECTOR:SPEED).
0 =
OFF – Disables the feature.
1 =
ON – Enables the feature.

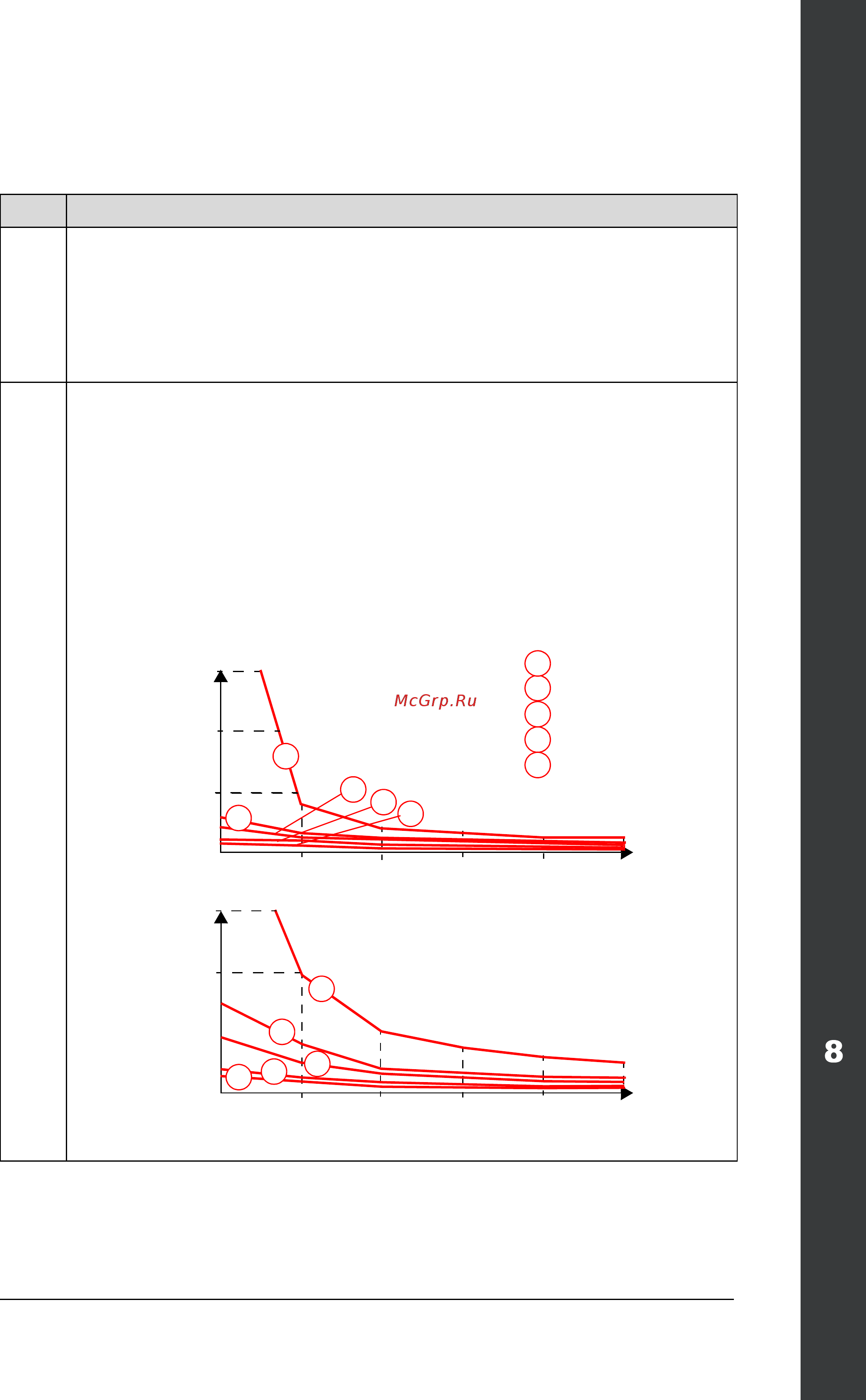

120%
80
40
0
Without flux braking
50
With flux braking
510203040
120%
80
40
0
50510203040
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
2.2 kW
15 kW
37 kW
75 kW
250 kW
Rated motor power
Braking
f (Hz)
f (Hz)
torque (%)
