Start-up and control panel 93
ACH550-02 User's Manual

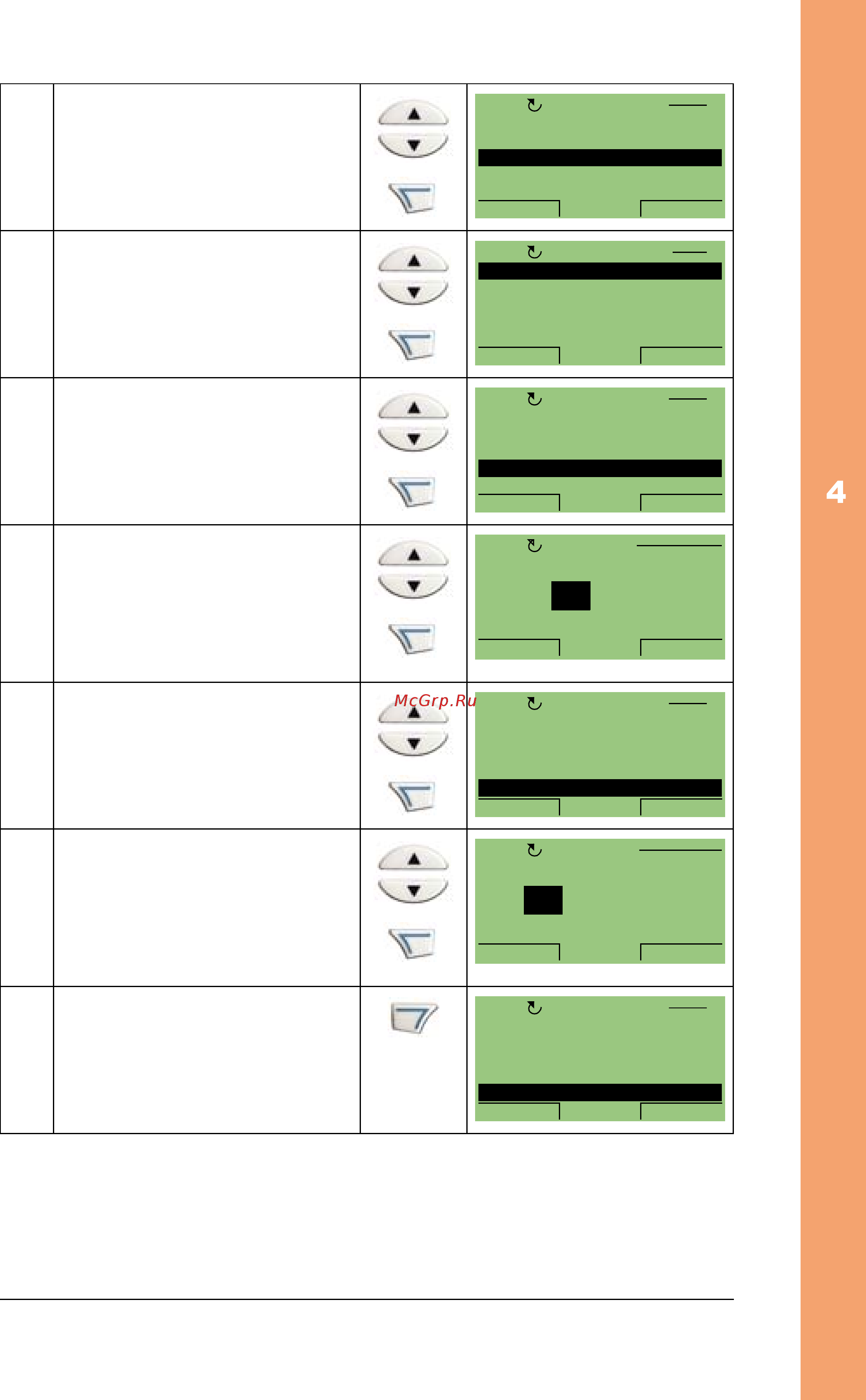

7 Scroll to DATE FORMAT
with the UP/DOWN keys
and press SEL.
8 The date formats are
displayed. Select a format
with the UP/DOWN keys
and press OK to confirm
the selection.
9 Scroll to SET TIME with the
UP/DOWN keys and press
SEL.
10 Change the hours and
minutes with the UP/
DOWN keys and press OK
to save the values. The
active value is highlighted
in inverted colour.
11 Scroll to SET DATE with
the UP/DOWN keys and
press SEL.
12 Change the days, months
and year with the UP/
DOWN keys and press OK
to save the values. The
active value is highlighted
in inverted colour.
13 Scroll to DAYLIGHT
SAVING with the UP/
DOWN keys and press
SEL.
CLOCK VISIBILITY
TIME FORMAT
DATE FORMAT
SET TIME
SET DATE
TIME & DATE 3
EXIT
SEL
00:00
OFF
dd.mm.yy
mm/dd/yy
dd.mm.yyyy
mm/dd/yyyy
DATE FORMAT 1
CANCEL
SEL
00:00
OFF
CLOCK VISIBILITY
TIME FORMAT
DATE FORMAT
SET TIME
SET DATE
TIME & DATE 4
EXIT
SEL00:00
OFF
00:00
CANCEL OK
OFF
SET TIME
CLOCK VISIBILITY
TIME FORMAT
DATE FORMAT
SET TIME
SET DATE
TIME & DATE 5
EXIT
SEL
00:00
OFF
01.01.08
SET DATE
CANCEL
OK
00:00
OFF
TIME FORMAT
DATE FORMAT
SET TIME
SET DATE
DAYLIGHT SAVING
TIME & DATE 6
EXIT SEL
00:00
OFF
