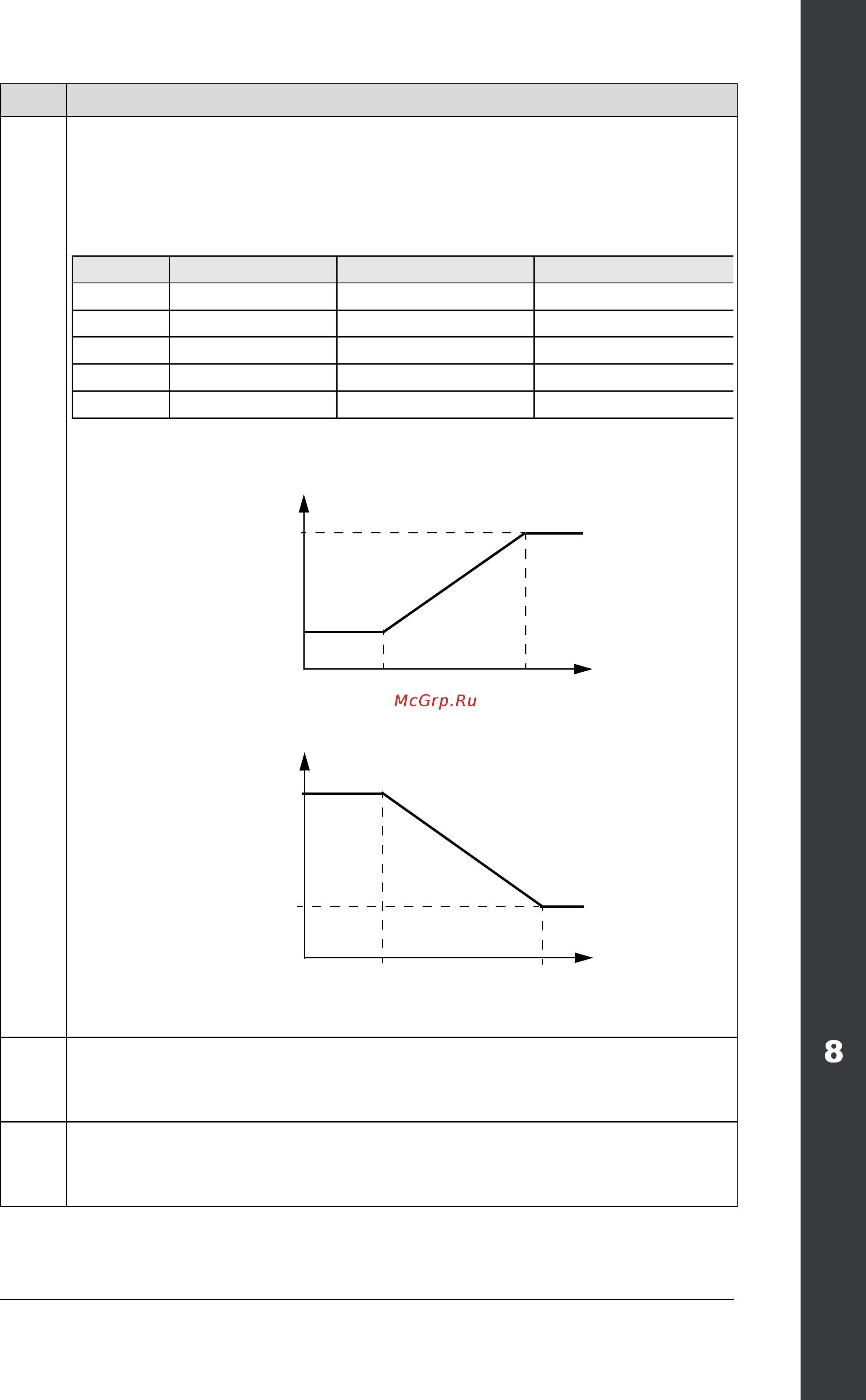

Parameter listing and descriptions 285
ACH550-02 User's Manual
4018 ACT1 MINIMUM -1000…1000%
Sets the minimum value for
ACT1.
• Scales the source signal used as the actual value
ACT1 (defined by
parameter 4016
ACT1 INPUT). For parameter 4016 values 6 (COMM
ACT 1) and 7 (COMM ACT 2) scaling is not done.
• See the figure: A = Normal; B = Inversion (
ACT1 MINIMUM > ACT1
MAXIMUM).
4019 ACT1 MAXIMUM -1000…1000%
Sets the maximum value for
ACT1.
•See 4018
ACT1 MINIMUM.
4020 ACT2 MINIMUM -1000…1000%
Sets the minimum value for
ACT2.
•See 4018
ACT1 MINIMUM.
Code Description Range
Par 4016 Source Source min. Source max.
1 Analogue input 1 1301
MINIMUM AI1 1302 MAXIMUM AI1
2 Analogue input 2 1304
MINIMUM AI2 1305 MAXIMUM AI2
3 Current 0 2 · nominal current
4 Torque -2 · nominal torque 2 · nominal torque
5 Power -2 · nominal power 2 · nominal power
P 4019
P 4018
P 1301 P 1302
P 1301 P 1302
P 4018
P 4019
ACT1 (%)
ACT1 (%)
A
B
Source signal
Source min. Source max.
Source signal
Source min. Source max.
