206 Parameter listing and descriptions
ACH550-02 User's Manual
1402 RELAY OUTPUT 2 0…47
Defines the event or condition that activates relay 2 – what relay output
2 means.
• See 1401
RELAY OUTPUT 1.
1403 RELAY OUTPUT 3 0…47
Defines the event or condition that activates relay 3 – what relay output
3 means.
• See 1401
RELAY OUTPUT 1.
1404 RO 1 ON DELAY 0…36
Defines the switch-on
delay for relay 1.
• On/off delays are
ignored when relay
output 1401 is set
to PFA.
1405 RO 1 OFF DELAY 0…3600 s
Defines the switch-off delay for relay 1.
• On/off delays are ignored when relay output 1401 is set to PFA.
1406 RO 2 ON DELAY 0…3600 s
Defines the switch-on delay for relay 2.
•See
RO 1 ON DELAY.
1407 RO 2 OFF DELAY 0…3600 s
Defines the switch-off delay for relay 2.
•See
RO 1 OFF DELAY.
1408 RO 3 ON DELAY 0…3600 s
Defines the switch-on delay for relay 3.
•See
RO 1 ON DELAY.
1409 RO 3 OFF DELAY 0…3600 s
Defines the switch-off delay for relay 3.
•See
RO 1 OFF DELAY.
1410
…
1412
RELAY OUTPUT 4…6 0…47
Defines the event or condition that activates relay 4…6 – what relay
outputs 4…6 means.
• See 1401
RELAY OUTPUT 1.
1413 RO 4 ON DELAY 0…3600 s
Defines the switch-on delay for relay 4.
•See
RO 1 ON DELAY.
1414 RO 4 OFF DELAY 0…3600 s
Defines the switch-off delay for relay 4.
•See
RO 1 OFF DELAY.

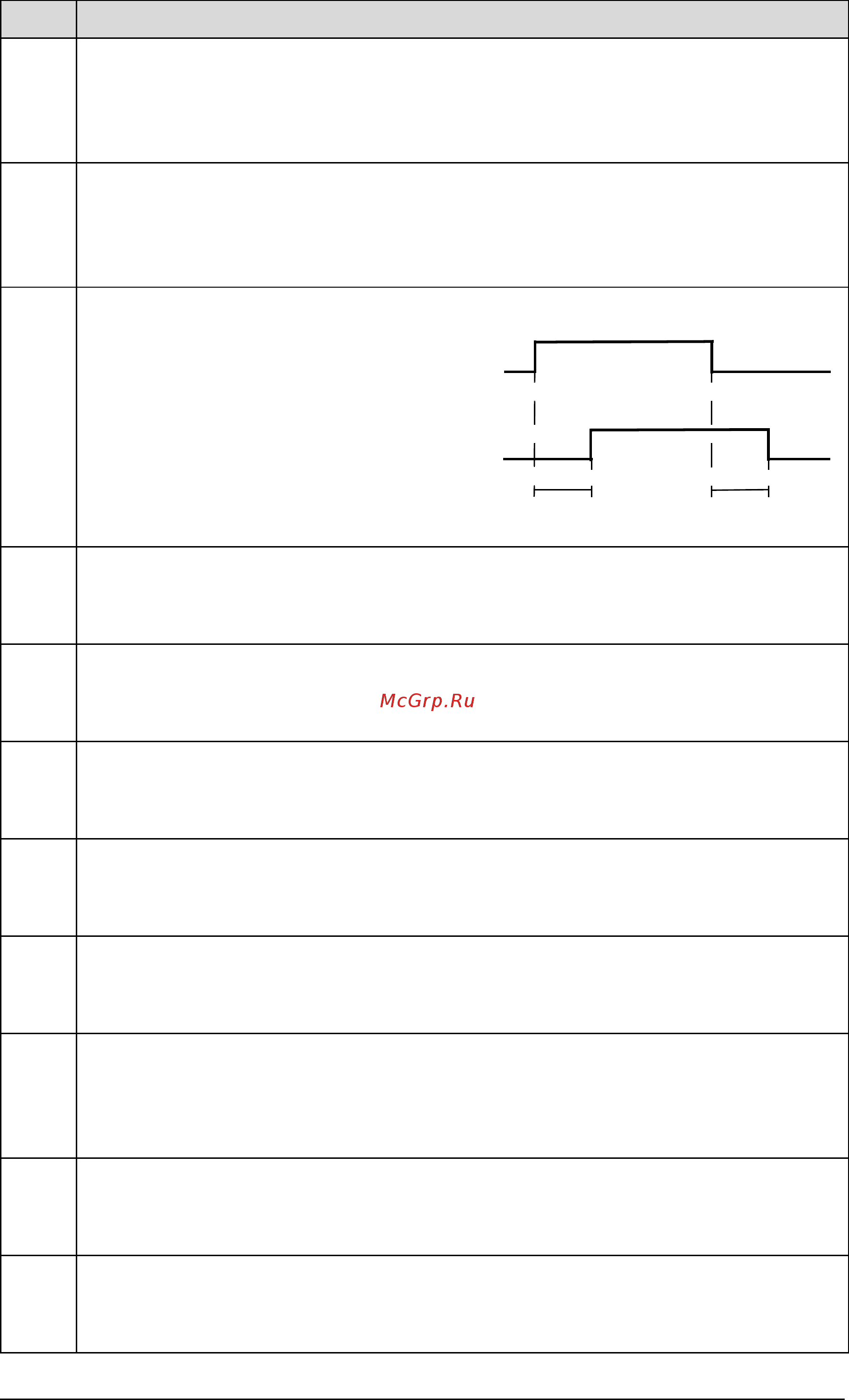

Code Description Range
1404 ON DELAY
1405 OFF DELAY
Control event
Relay status
