Installing the drive 49
ACH550-02 User’s Manual

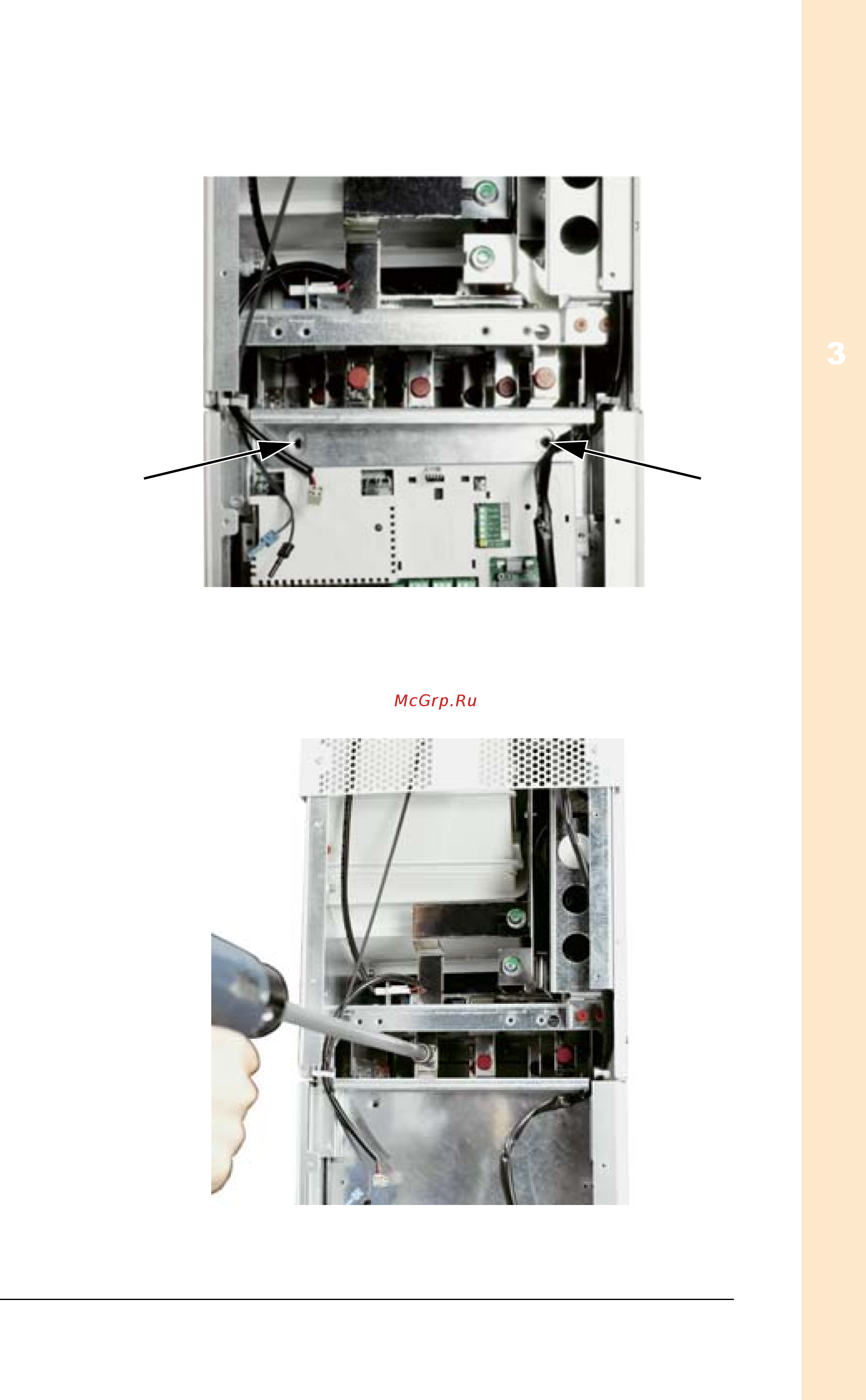

3. Undo the screws that fix the pedestal to the frame from
front.
4. Undo the screws that connect the busbars of the pedestal to
the upper frame. Use a torque wrench with an extension.
3
4
