Biostar T-Series TForce4/ TForce4 U
User’s Manual
10

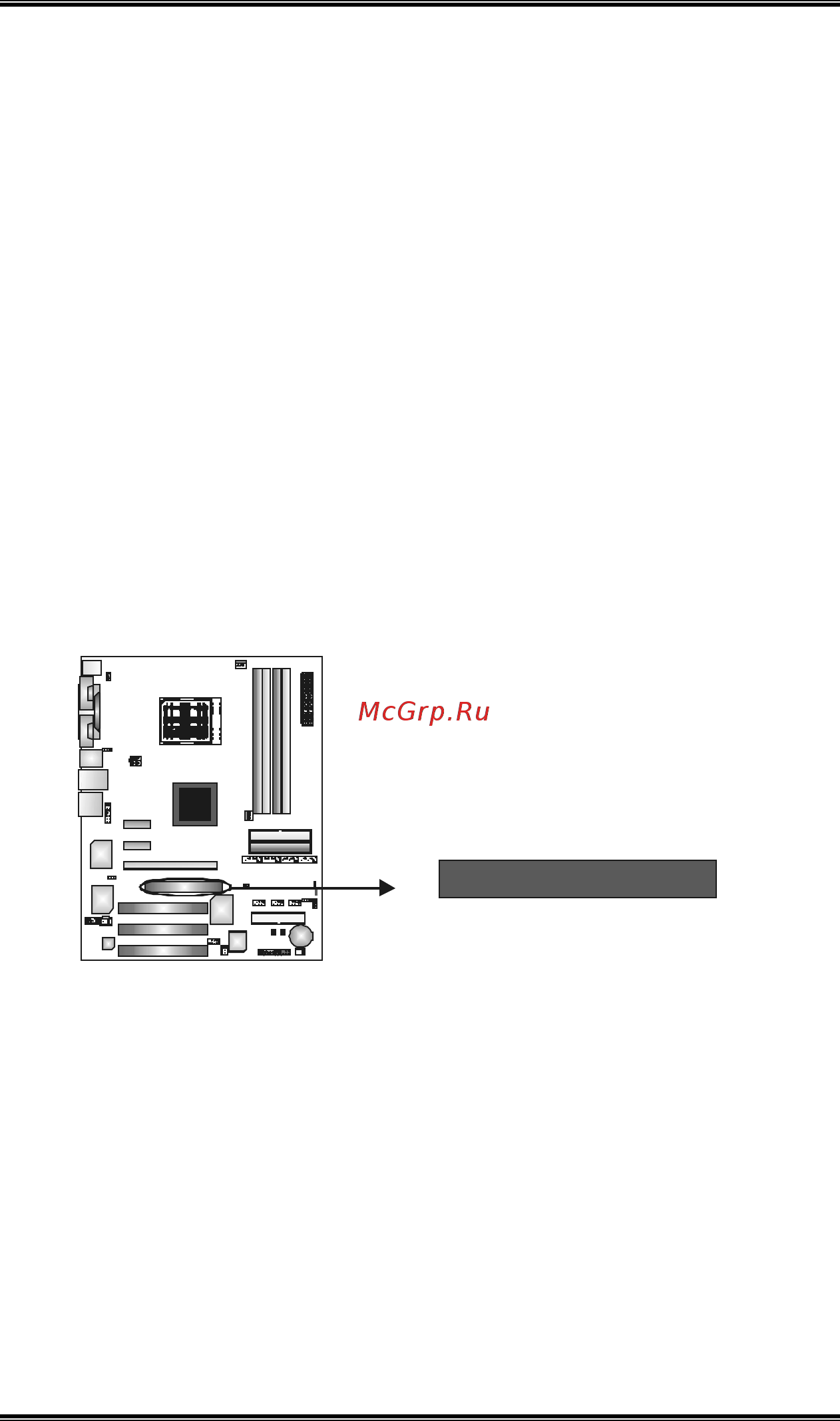

Xtreme Graphics Port Slot: XGP1
This XGP (Extreme Graphics Port) slot is a special design that only
supports compatible AGP VGA cards.
To install the system with an add-on AGP VGA card, please make
sure to install the driver of add-on AGP VGA card before onboard
VGA driver installation. If the onboard VGA driver has already been
installed before you install the add-on AGP VGA card, the system
will automatically set the onboard VGA as the primary graphics
adapter.
For the onboard VGA driver can’t be removed completely, and to
solve this problem, please follow the steps below,
Disable onboard VGA utility under the operating system, and reboot
PC. After PC restarts, the system will automatically set the AGP
VGA card as the graphics adapter.
Or, re-install your operating system to ensure the AGP VGA card
function can be used.
Note:
Please go to “http://www.biostar.com.tw” for more detailed
information about XGP compatible AGP cards.
XGP1
