Biostar T-Series TForce4/ TForce4 U
User’s Manual
15

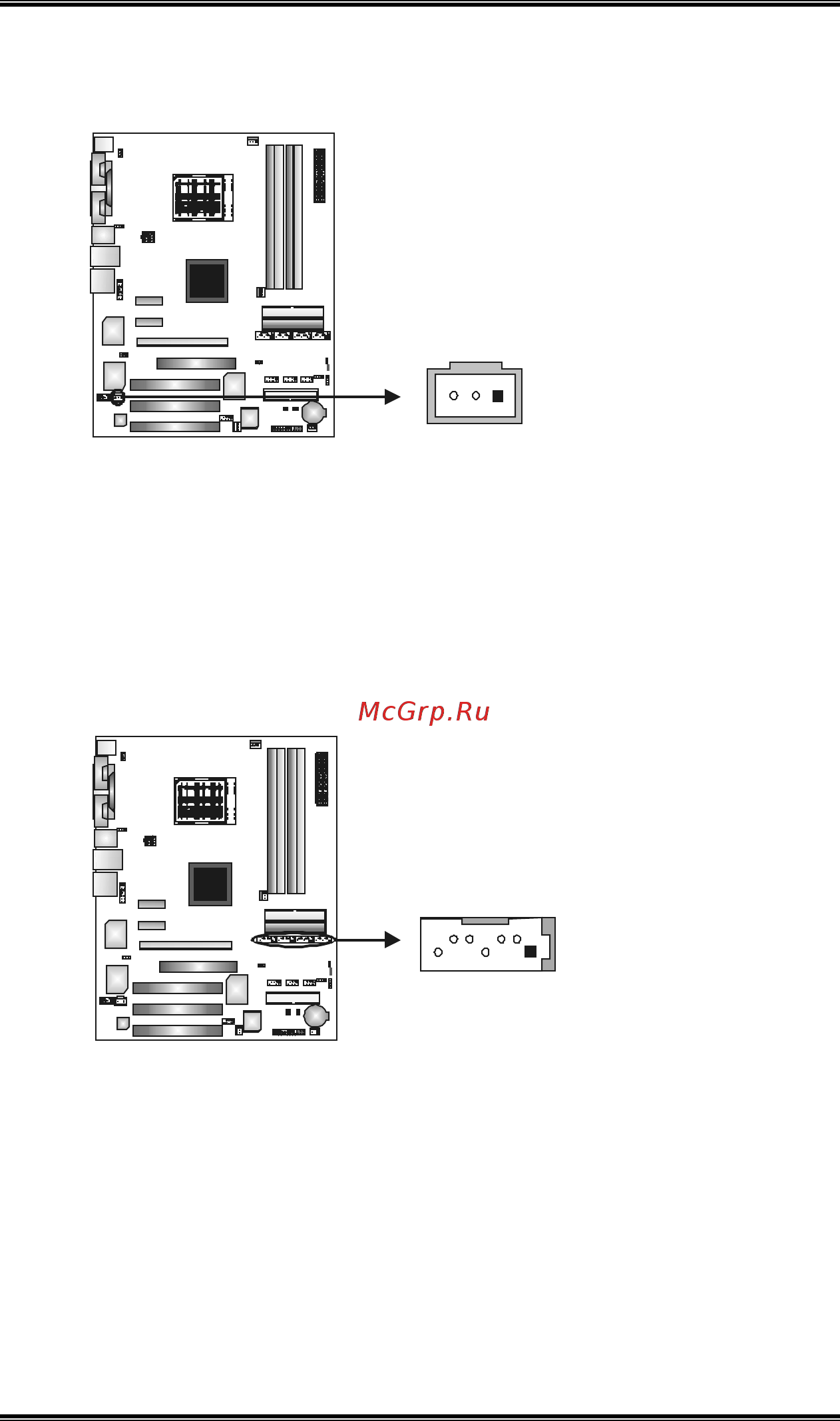

Digital Audio-out Connector: JSPDIF_OUT
This connector allows users to connect the PCI bracket SPDIF
output header.
Pin
Assignment
1 +5V
2 SPDIF OUT
13
3 Gro und
Serial ATA Connectors: JSATA1~JSATA4
The motherboard has an SATA Controller in nForce4 CK8-04 and
CK8-04 Ultra with 4 channels SATA interface, it satisfies the SATA
1.0 with transfer rate of 1.5 Gb/s and SATA 2.0 spec with transfer
rate of 3.0 Gb/s.
Pin
Assignment
1 Gro und
2 TX+
3 TX-
4 Gro und
5 RX-
6 RX+
147
JSATA1 JSATA2 JSATA3 JSATA4
7 Gro und
