TForce4 / TForce4 Ultra
3
1 Main Menu
Once you enter Award BIOS™ CMOS Setup Utility, the Main Menu will appear on the
screen. The Main Menu allows you to select from several setup functions. Use the arrow keys
to select among the items and press <Enter> to accept and enter the sub-menu.

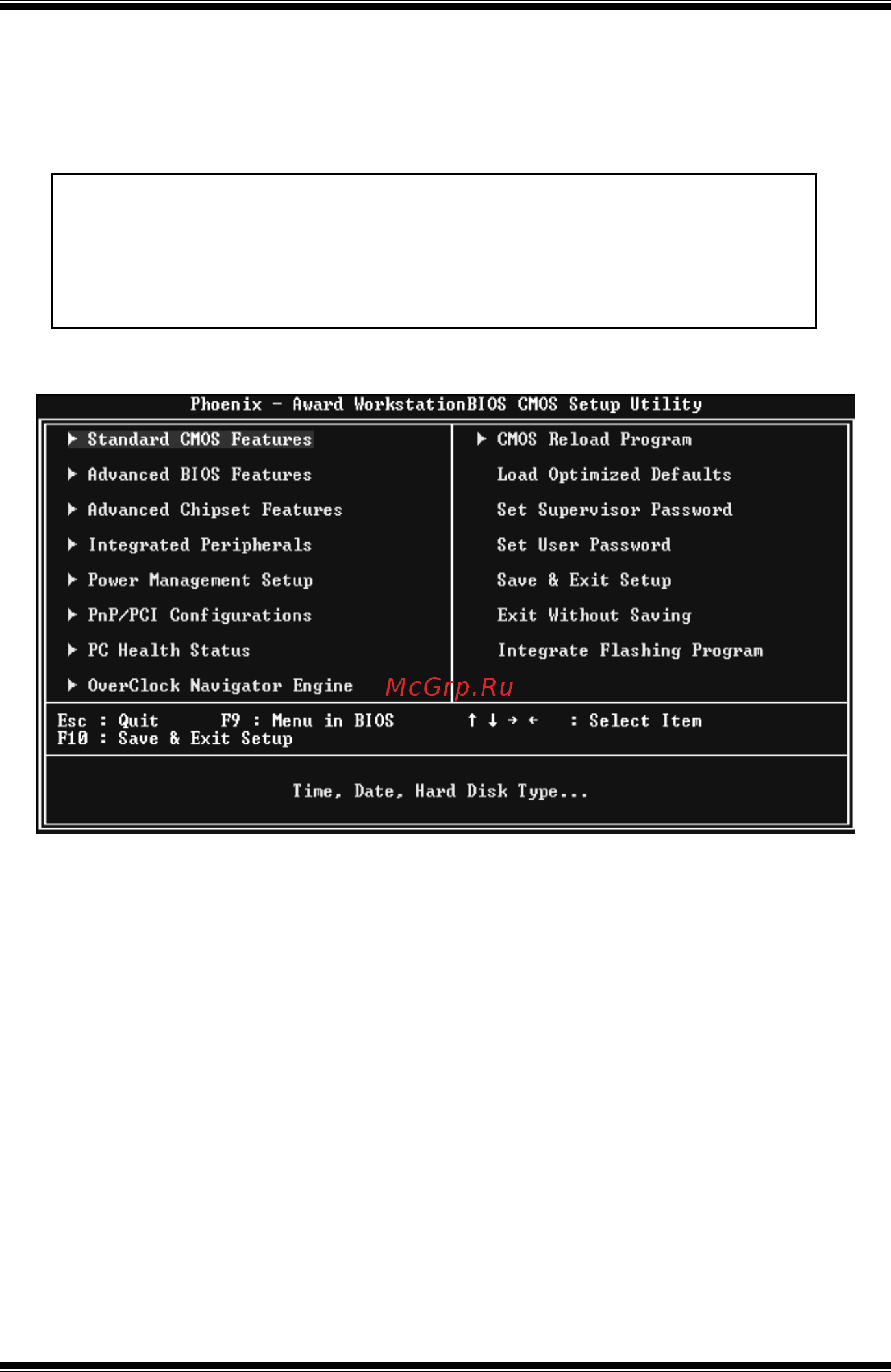

Fig ure 1. Main Menu
Standard CMOS Features
This submenu contains industry standard configurable options.
Advanced BIOS Features
This submenu allows you to configure enhanced features of the BIOS.
Advanced Chipset Features
This submenu allows you to configure special chipset features.
Integrated Peripherals
This submenu allows you to configure certain IDE hard drive options and
Programmed Input/ Output features.
Power Management Setup
This submenu allows you to configure the power management features.
!! WARNING !!
The information about BIOS defaults on manual (Figure 1,2,3,4,5,6,7,8,9) is
just for reference, please refer to the BIOS installed on board, for update
information.
