Biostar T-Series TForce4/ TForce4 U
User’s Manual
26
Notice: According to tests that have been done; AMD Athlon XP 3000+ CPU is
the best CPU type for overclock function.

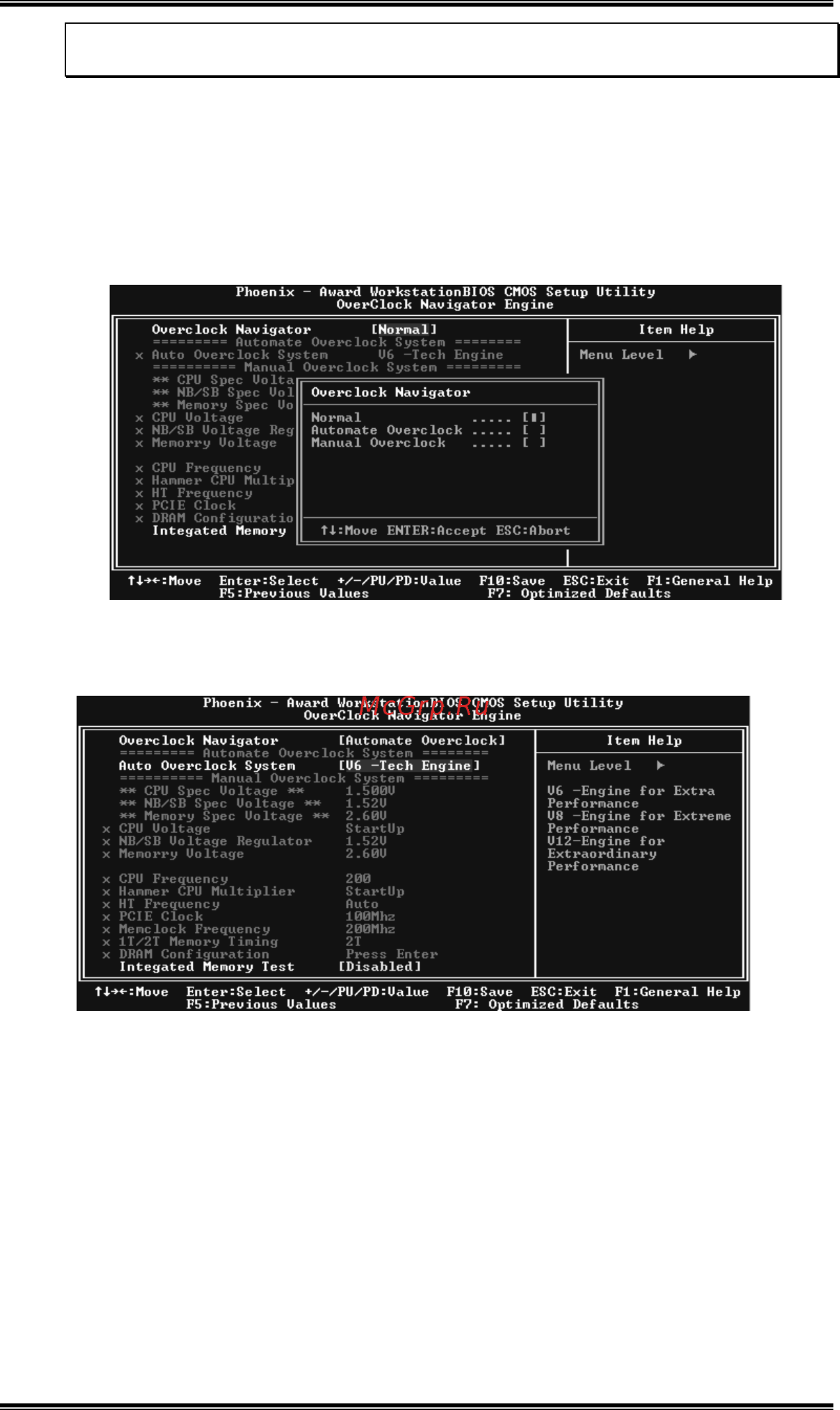

Automatic Overclock System (A.O.S.)
For beginners in overclock field, BET had developed an easy,
fast, and powerful feature to increase the system performance,
named A.O.S.
Based on many tests and experiments, A.O.S. provides 3 ideal
overclock configurations that are able to raise the system
performance in a single step.
V6 Tech Engine:
This setting will raise about 10%~15% of whole system
performance.
