Biostar T-Series TForce4/ TForce4 U
User’s Manual
18

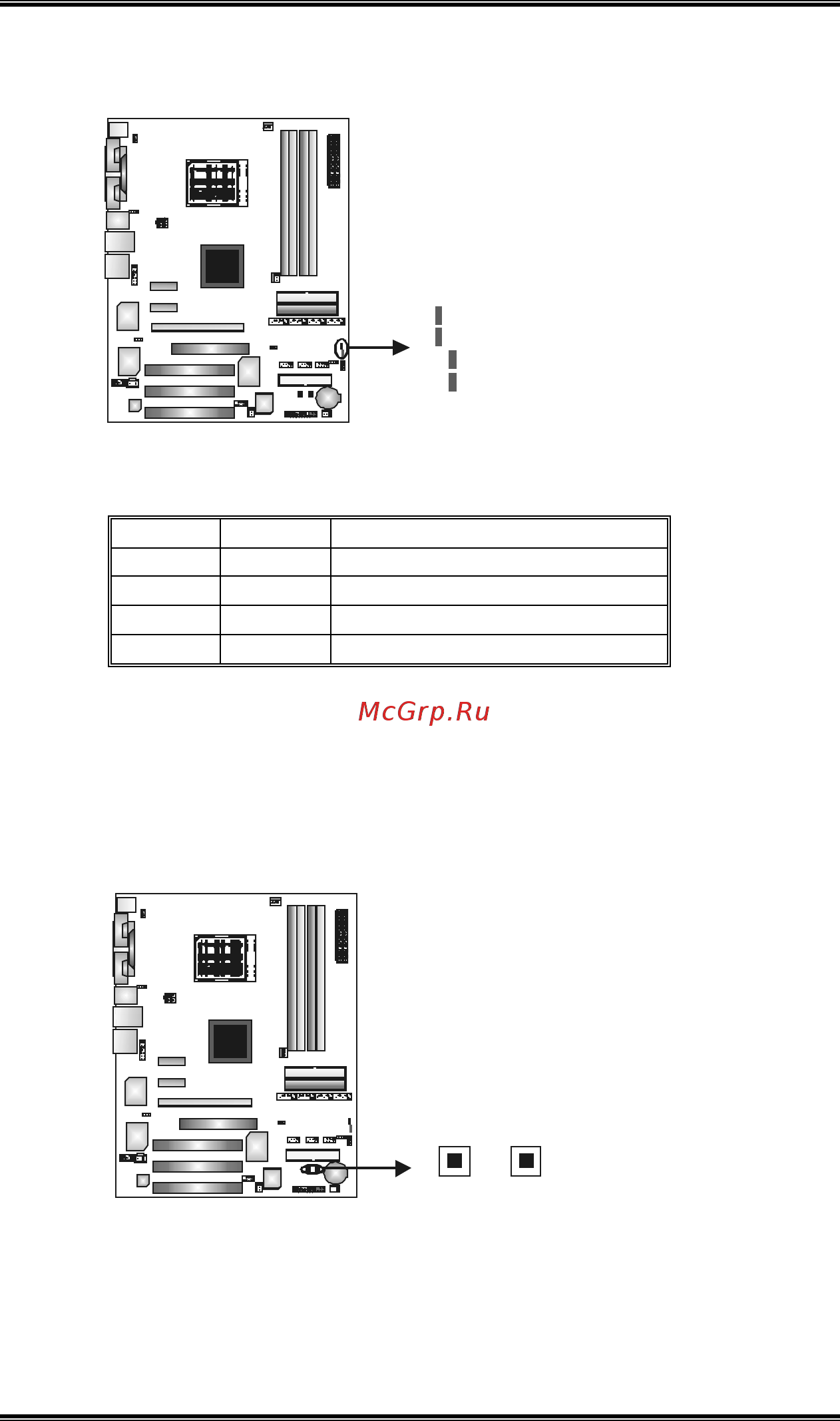

On-Board LED Indicators
There are 2 LED indicators on the motherboard to show system
status.
LED_D2
LED_D1
LED_DIMM
LED_5SB
LED_D1 and LED_D2:
These 2 LED indicate system power on diagnostics.
Please refer to the table below for different messages:
LED_D1 LED_D2 Message
ON ON Norma l
ON OFF Memory Error
OFF ON VGA Error
OFF OFF Abnormal: CPU / Chipset error.
LED_DIMM:
This LED indicates the voltage of memory is activated normally.
LED_5SB:
This LED indicates the system is ready for Power-on.
On-Board Buttons
There are 2 on-board buttons.
PWRSW RSTSW
PWRSW:
This is an on-board Power Switch button.
RSTSW:
This is an on-board Reset button.
