Biostar T-Series TForce4/ TForce4 U
User’s Manual
28

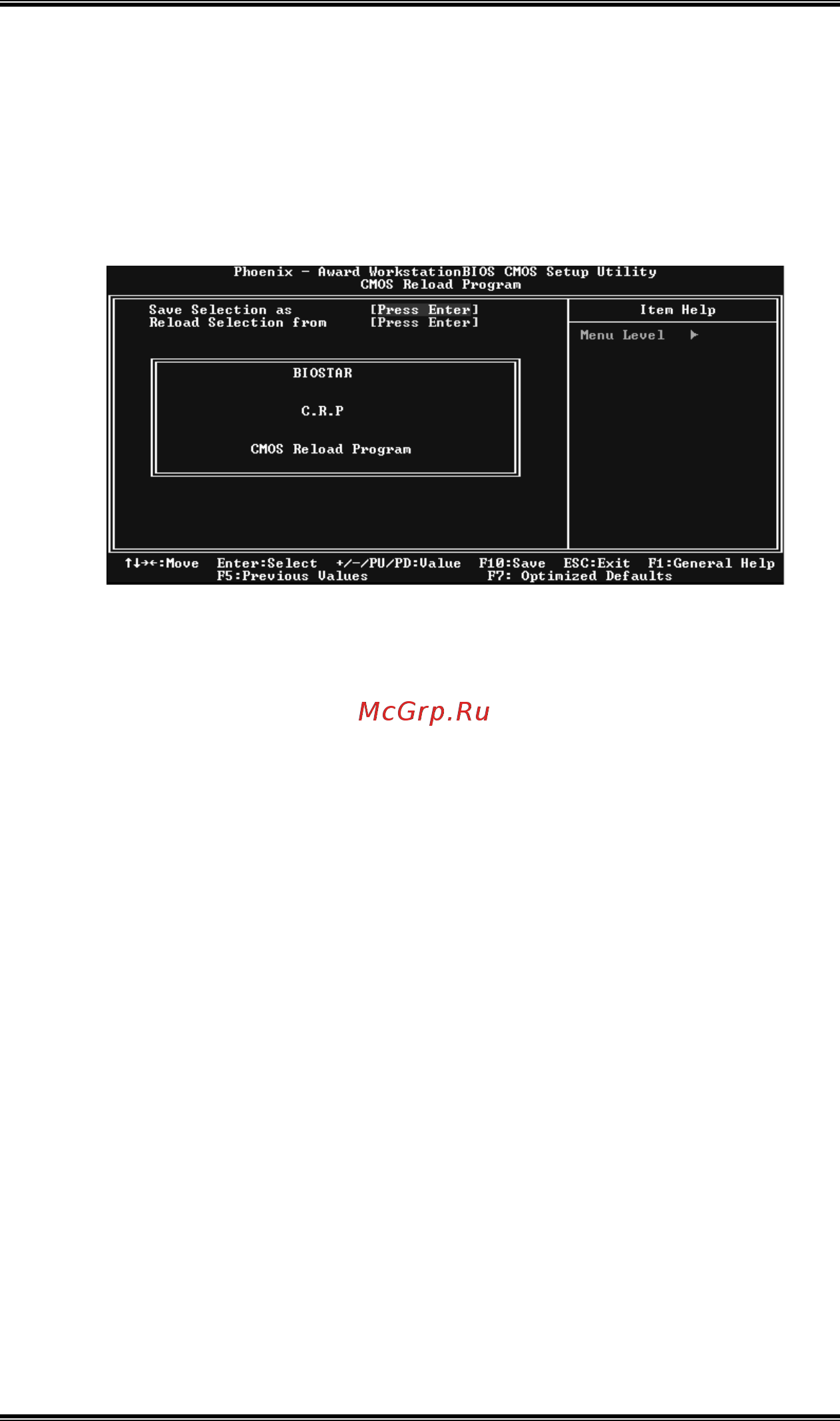

B. CMOS Reloading Program (C.R.P.):
It allows users to save different CMOS settings into BIOS-ROM.
Users are able to reload any saved CMOS setting for customizing
system configurations.
Moreover, users are able to save an ideal overclock setting during
overclock operation.
There are 50 sets of record addresses in total, and users are able to
name the CMOS data according to personal preference.
