Biostar T-Series TForce4/ TForce4 U
User’s Manual
13

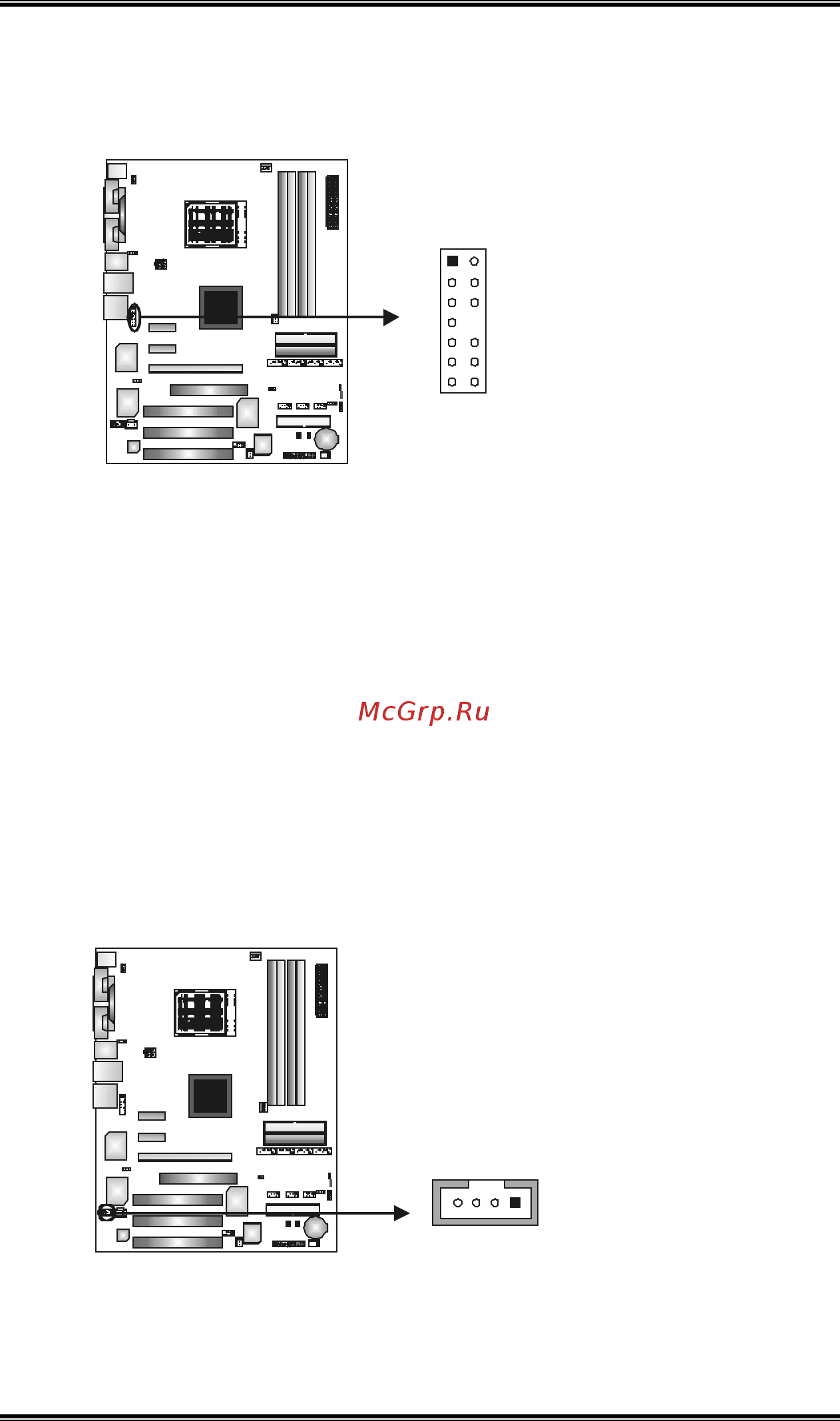

Front Panel Audio-out Header: JAUDIO2
This connector will allow user to connect with the front audio output
headers on the PC case. It will disable the output on back panel
audio connectors.
12
13 14
Pin Assignment Pin Assignment
1
Mic in/center
2
Gro und
3
Mic power/Bass
4
Audio power
5
Right li ne out/
Speaker out Right
6
Right li ne out/
Speaker out Right
7
Reserved
8
Key
9
Left li ne out/
Speaker out Left
10
Left li ne out/
Speaker out Left
11
Right li ne i n/
Rear speaker Right
12
Right li ne i n/
Rear speaker Right
13
Left li ne in/
Rear speaker Left
14
Left li ne in/
Rear speaker Left
CD-ROM Audio-in Connector: JCDIN1
This connector allows user to connect the audio source from a
variety of devices, like CD-ROM, DVD-ROM, PCI sound card, PCI
TV tuner card etc.
Pin
Assignment
1 Left channel
input
2 Ground
3 Ground
14
4 Right channel
input
