TForce4 / TForce4 Ultra
30
NB/SB Voltage Ragurator
The Choices:1.52V(default),1.60V,1.68V,1.76V.
Memorry Voltage
The Choices:2.60V(default),2.70V,2.80V,2.90V.
CPU Frequency
This item allows you to select the CPU Frequency.
The Choices: 200 (default),201,202,203,204,205,206,207,208,209…..450.(
Max.is 450)
Hammer CPU Multiplier
The Max. value will be different from the selected CPU types.
The Choices: StartUp (default),X4 800MHz, X5 1000MHz, X6 1200MHz, X7
1400MHz, X8 1600MHz, X9 1800MHz, etc.
HT Frequency
This item allows you to select the HT Frequency.
The Choices: 4x (default),1x,2x,3x,5x.Auto,x4.
PCIE Clock
The Choices:100MHz(default), 101MHz, 102MHz, 103MHz, 104MHz, 105MHz,
106MHz, 107MHz, etc.
Memclock Frequency
The Choices:200MHz(default), 100MHz, 133MHz, 166MHz, 200MHz, 216MHz,
233MHz, 250MHz.
1T/2T Memory Timing
The Choices:2T(default),1T.

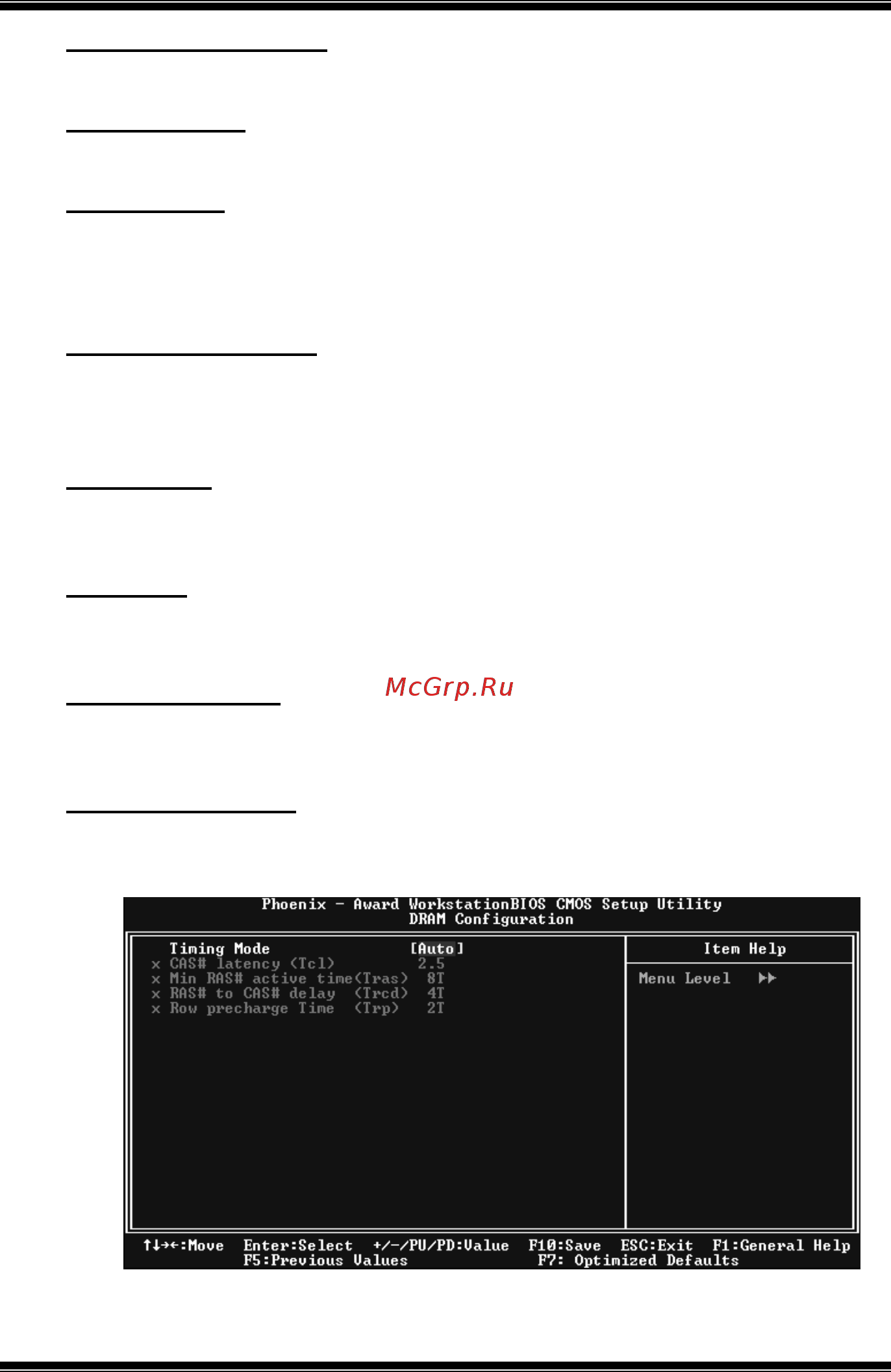

RAM Configuration
