Biostar T-Series TForce4/ TForce4 U
User’s Manual
17

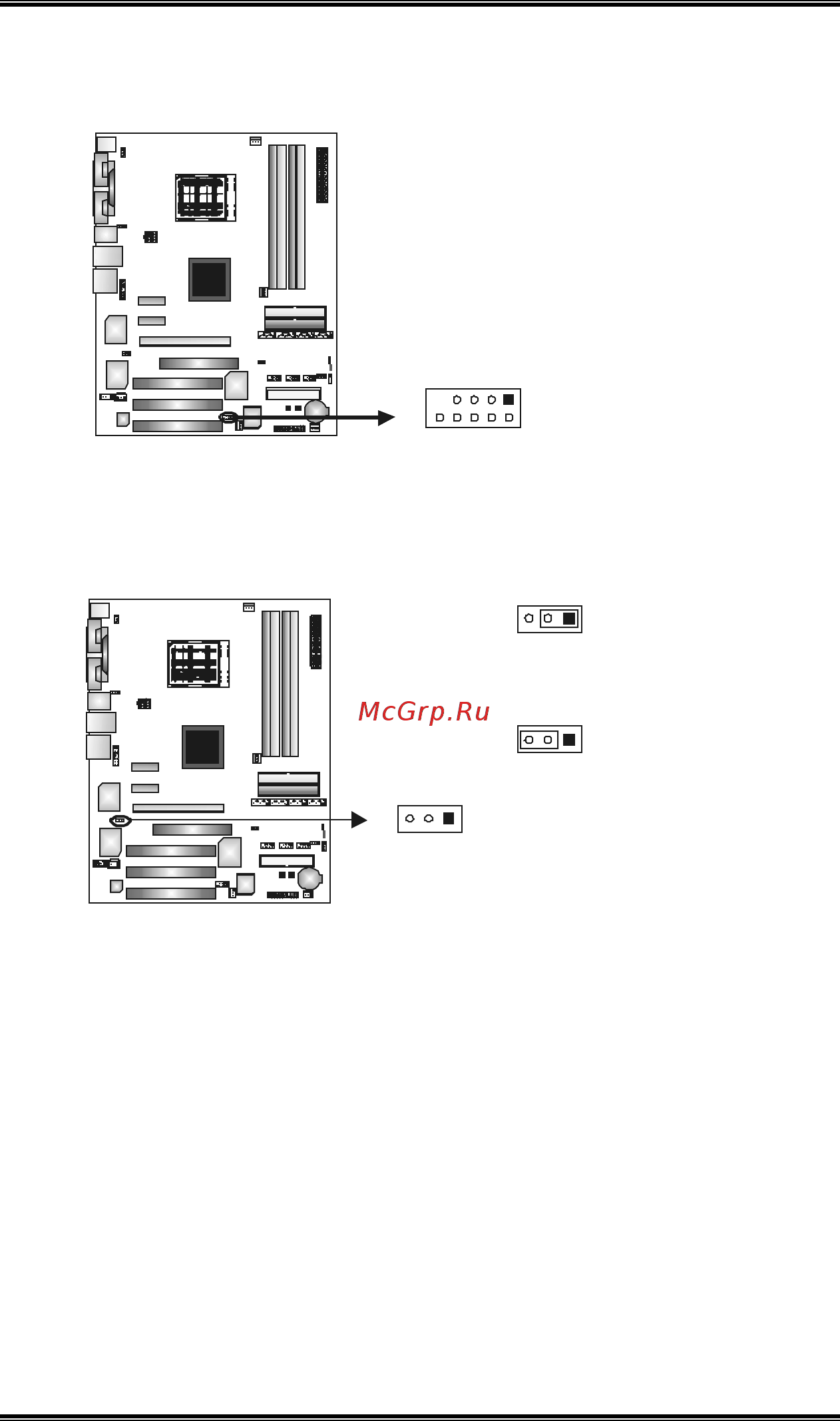

J1394A1: Header for 1394 Firewire Port at Front Panel
This header allows user to connect the digital image device, like DV,
D8, or V8, etc.
Pin
Assignment
1 A+
2 A-
3 Ground
4 Ground
5 B+
6 B-
7 +12V
8 +12V
9 Key
1
2
9
10
10 Ground
J1394PWR1: Power Source for 1394 Firewire Port
13
13
Pin 1-2 close
+3.3V for 1394 chipset (Default).
1
3
Pin 2-3 close
+3.3V SB for 1394 chipset.
