Biostar T-Series TForce4/ TForce4 U
User’s Manual
16

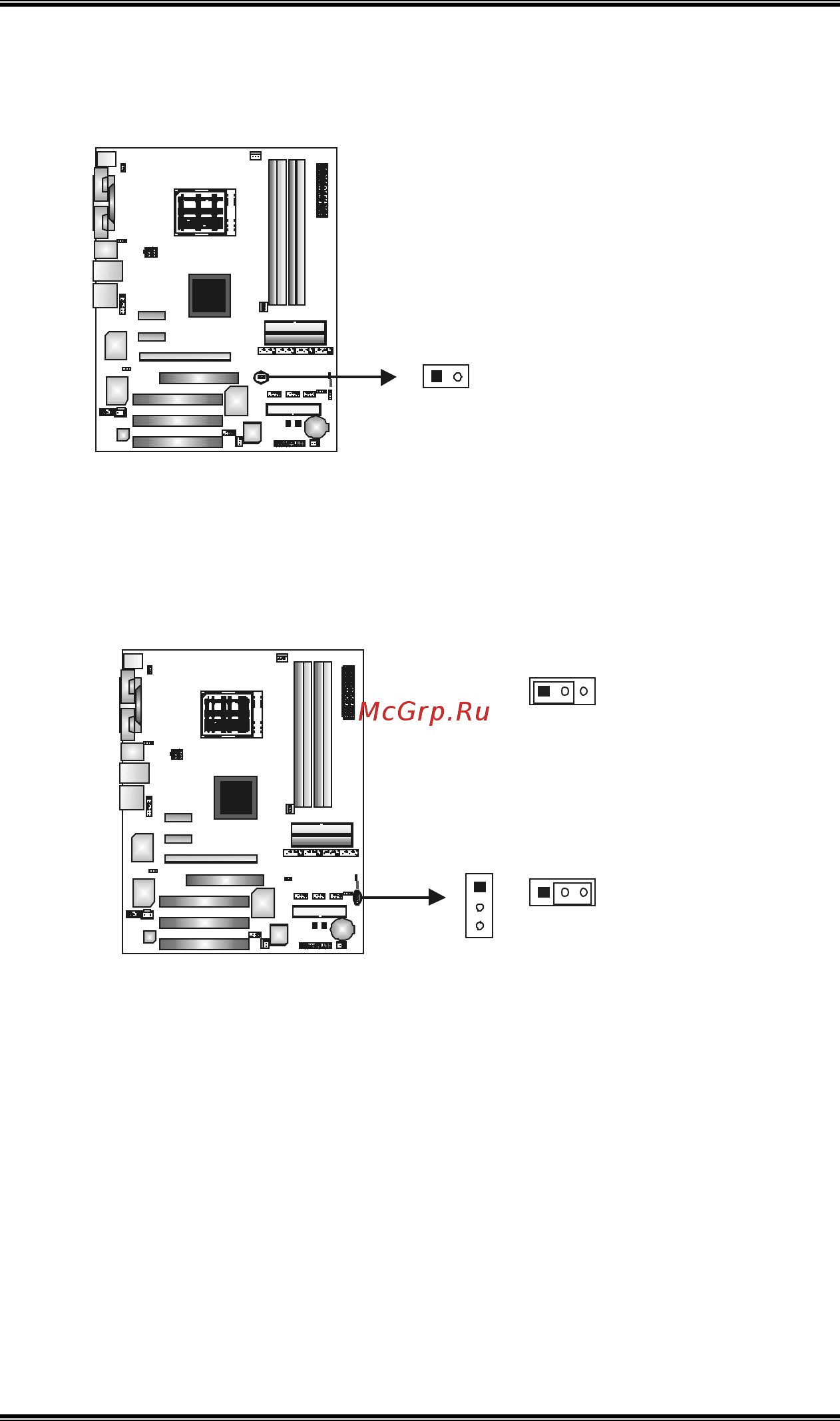

Case Open Header: JCI1
This connector allows system to monitor PC case open status. If the
signal has been triggered, it will record to the CMOS and show the
message on next boot-up.
Pin
Assignment
1 Case open signal
12
2 Gro und
Clear CMOS Header: JCMOS1
By placing the jumper on pin 2-3, it allows user to restore the BIOS
safe setting and the CMOS data, please carefully follow the
procedures to avoid damaging the motherboard.
13
Pin 1-2 close:
Normal Operation
(Default).
1
3
13
Pin 2-3 close:
Clear CMOS data.
Clear CMOS Procedures:※
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.1
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
