Biostar T-Series TForce4/ TForce4 U
User’s Manual
12

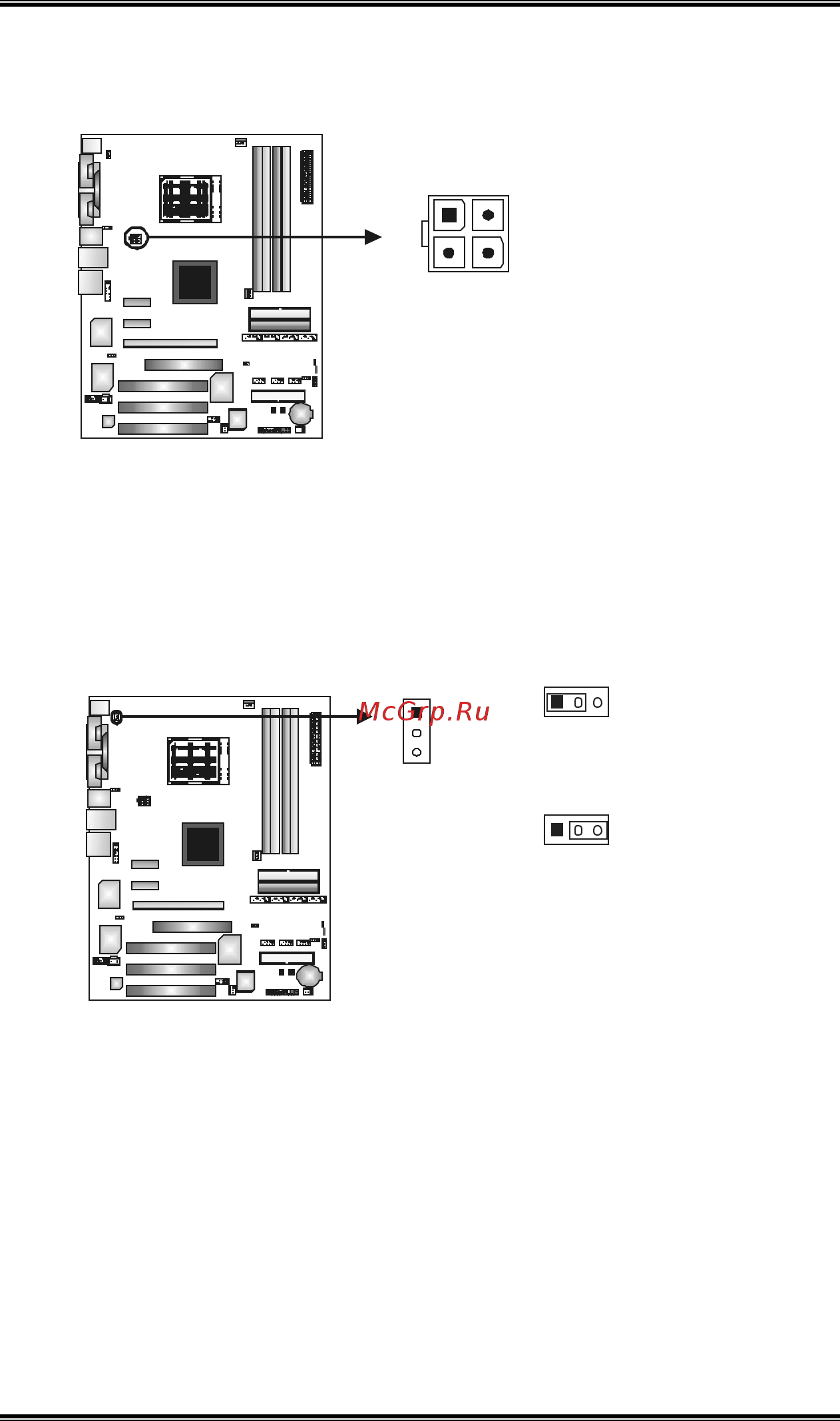

ATX Power Source Connector: JATXPWR2
By connecting JATXPWR2, it will provide +12V to CPU power
circuit.
Pin
Assignment
1 +12V
2 +12V
3 Gro und
12
34
4 Gro und
Power Source Header for PS/2 Keyboard/Mouse: JKBMSV1
Pin 1-2 Close: +5V for PS/2 keyboard and mouse.
(Factory default setting)
Pin 2-3 Close: PS/2 keyboard and mouse are powered with +5V
standby voltage.
1
3
13
Pin 1-2 close
(Default)
13
Pin 2-3 close
Note: In order to support
this function “Power-on
system via keyboard and
mouse,” JKBMSV1
jumper cap should be
placed on Pin 2-3.
