TForce4 / TForce4 Ultra
31
Timing Mode
DDR Timing Setting by SPD or ITEM.
The Choices: Auto (Default), Manual.
CAS# Latency(Tcl)
This field specify the cas# latency, i.e. cas# to read data valid.
The Choices: CL=2.5(Default), CL=3.0, CL=2.0,
Min RAS# active time (Tras)
This field specifies the minimum RAS# active time. Typically -45-60 Nsec.
The Choices: 8T(Default).
RAS# to CAS# Delay (Trcd)
This field specifies the RAS# to CAS# Delay to read/ write command to the
same bank. Typically -20 Nsec.
The Choices: 4T(Default).
Row precharge Time (Trp)
This field specifies the Row precharge Time. Precharge to Active or
Auto-Refresh of the same bank. Typically 20-24 Nsec.
The Choices: 2T (Default).

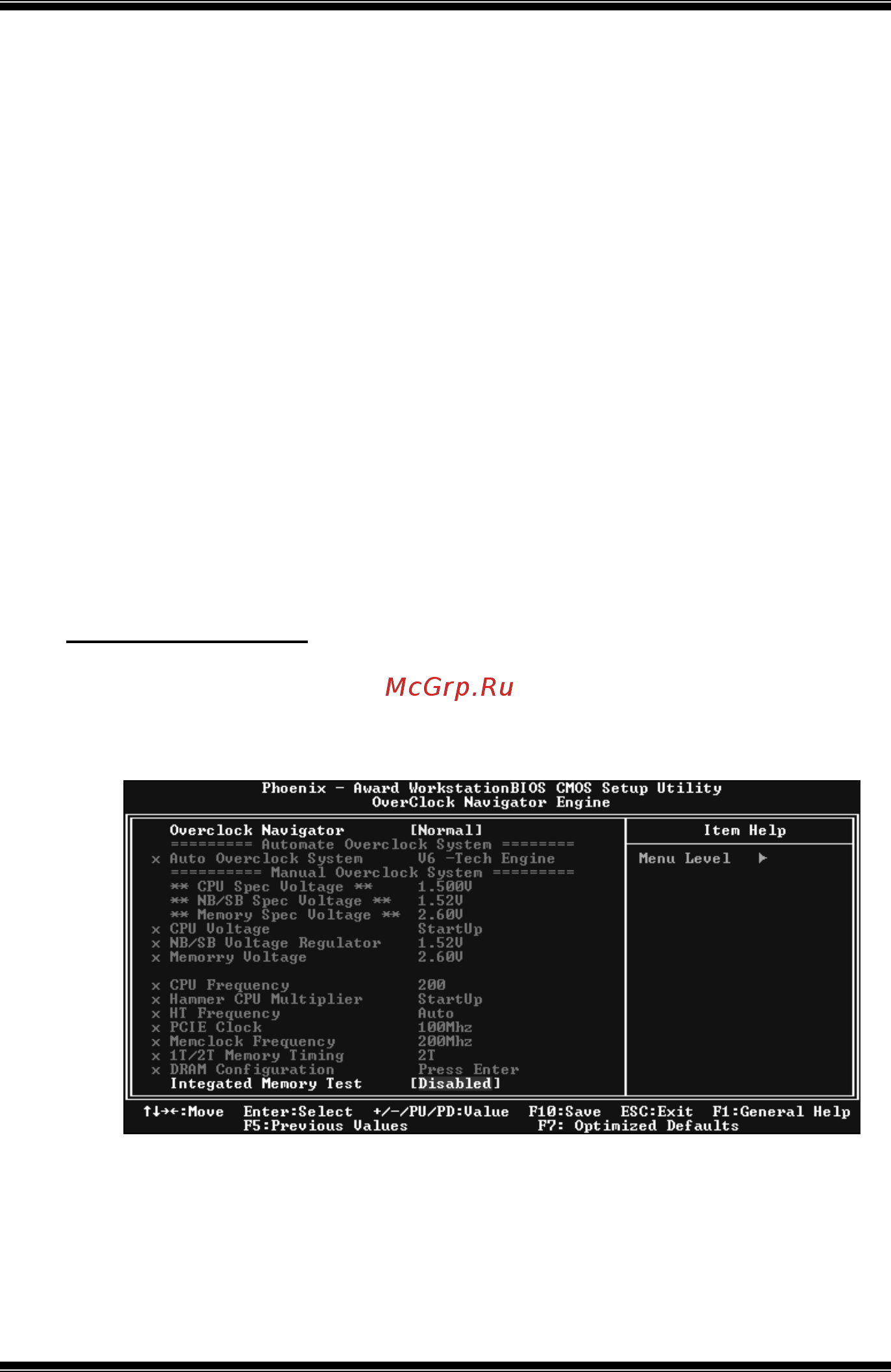

Integtated Memory Test
Integtated Memory Test allows users to test memory compatibilities, and no extra
devices or software are needed.
Ste p 1:
The default setting under this item is “Disable”, the condition should be change into
“Enable” to proceed this test.
