TForce4 / TForce4 Ultra
5

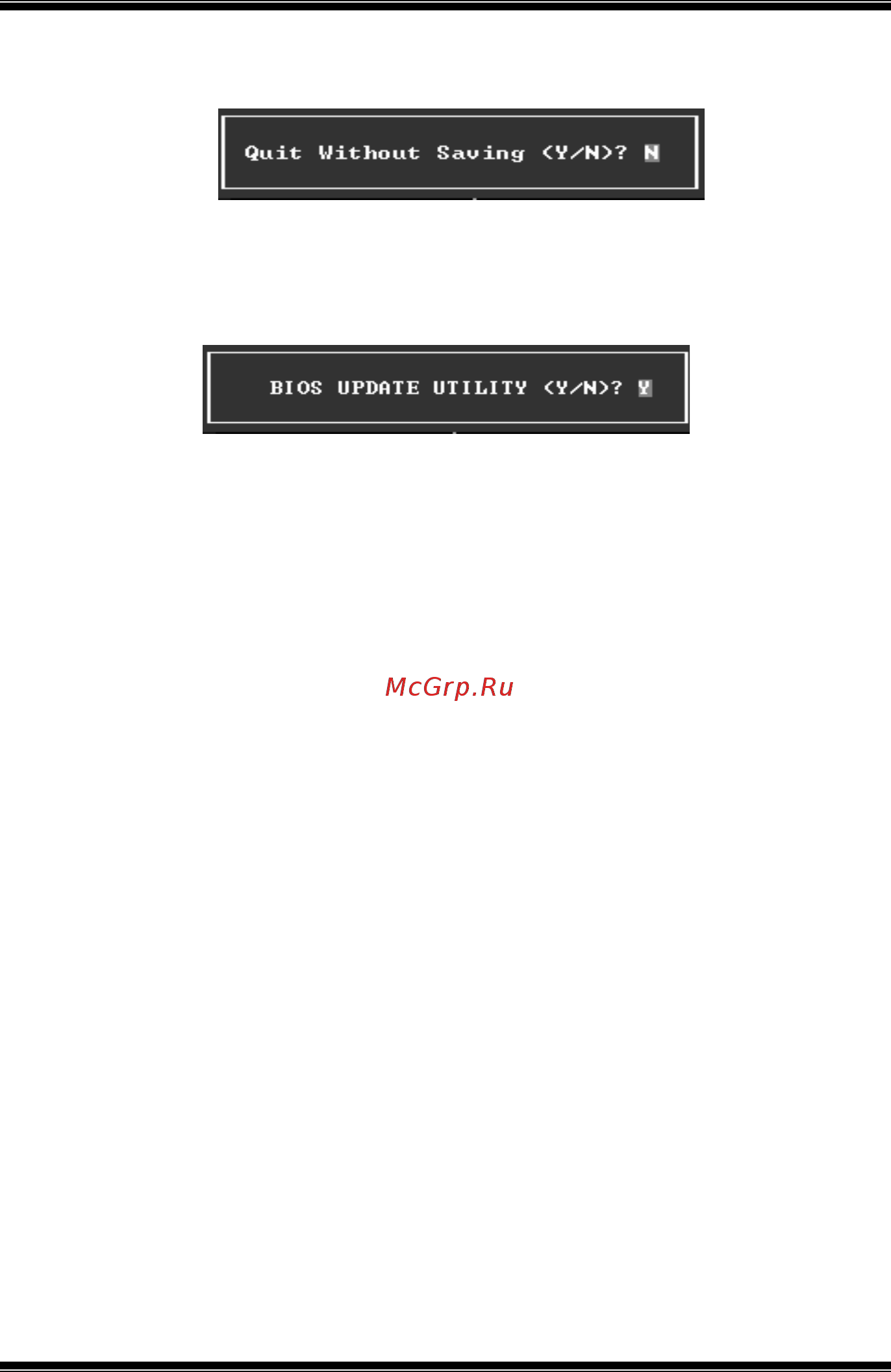

Exit Without Saving
Abandon all changes made during the current session and exit setup.
confirmation message will be displayed before proceeding.
Integrate Flashing Program
This is a very safe way to upgrade BIOS.
By pressing “Enter” key for three times, and the upgrading process will be
completed easily.
