TForce4 / TForce4 Ultra
14
5 Integrated Peripherals

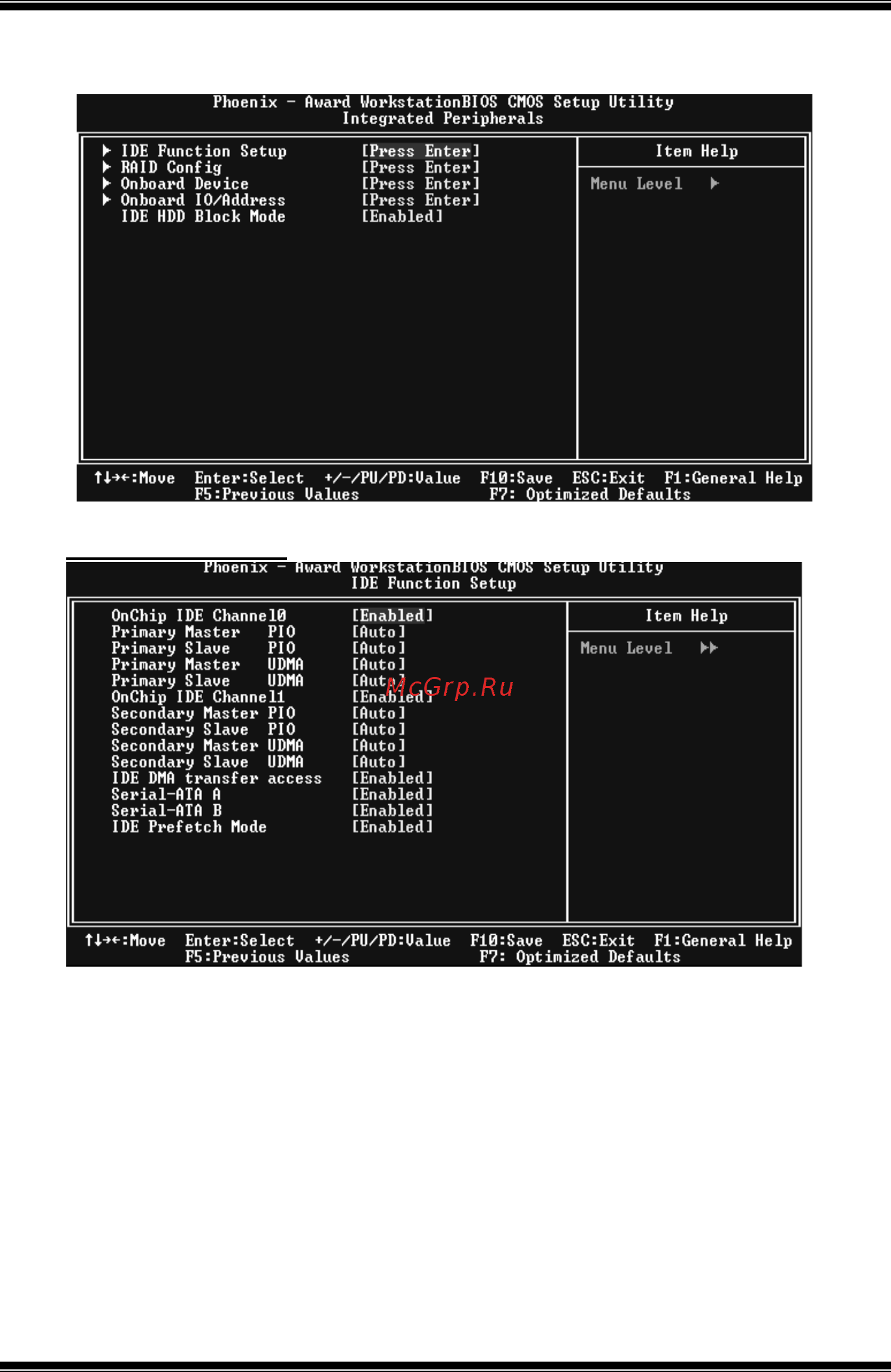

Figure 5. Integrated Peripherals
IDE Function Setup
If you highlight the literal “Press Enter” next to the “IDE Function Setup” label and
then press
the enter key, it will take you a submenu with the following options:
OnChip IDE Channel 0/1
The motherboard chipset contains a PCI IDE interface with support for two
IDE channels. Select “Enabled” to activate the first and/or second IDE
interface. Select “Disabled” to deactivate an interface if you are going to
install a primary and/or secondary add-in IDE interface.
The Choices: Enabled (default), Disabled.
