TForce4 / TForce4 Ultra
12
4 Advanced Chipset Features
This submenu allows you to configure the specific features of the chipset installed on your
system. This chipset manage bus speeds and access to system memory resources, such as
DRAM. It also coordinates communications with the PCI bus. The default settings that
came with your system have been optimized and therefore should not be changed unless you
are suspicious that the settings have been changed incorrectly.

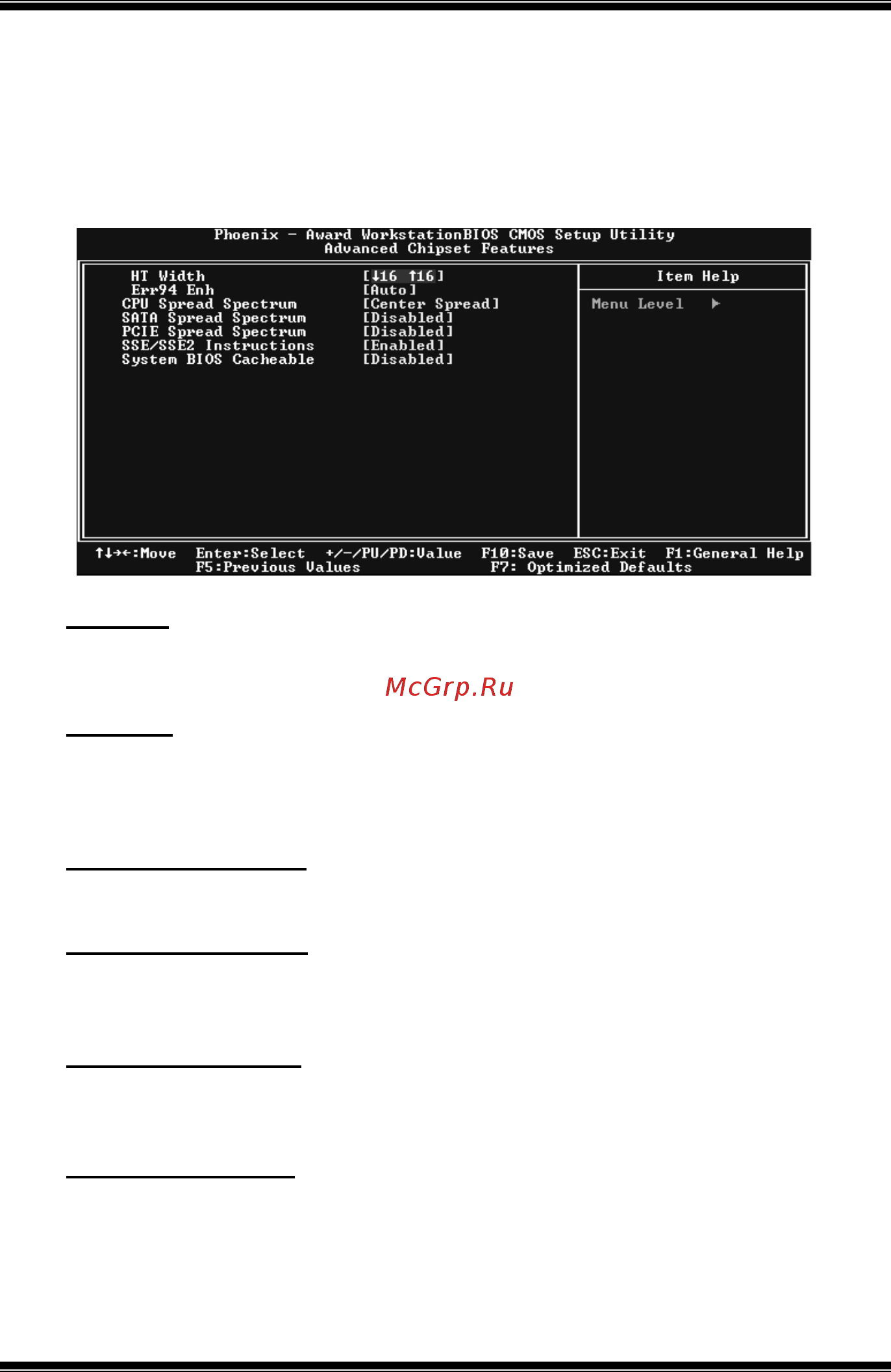

Figure 4. Advanced Chipset Setup
HT Width
This item allows you to control the utilized width of the outgoing side of the
HyperTransport link.
Err94 Enh
This item allows you to enable/disable the “sequential Prufetch Feature” of K8
CPU.
TheChoices: Auto (default).
CPU Spread Spectrum
The Choices: Center Spread (default).
SATA Spread Spectrum
This item allows you to disable \ enable the
SATA spread spectrum function.
The Choices: Disabled (default), enable.
PCIE Spread Spectrum
This item allows you to disable \ enable the SATA spread spectrum function.
The Choices: Disabled (default), enable.
SSE/SSE2 Instructions
The Choices:Enabled (default), Disabled.
