Biostar T-Series TForce4/ TForce4 U
User’s Manual
29
C. Memory Integration Test (M.I.T.):
This function is under “Overclocking Navigator Engine” item.
MIT allows users to test memory compatibilities, and no extra
devices or software are needed.

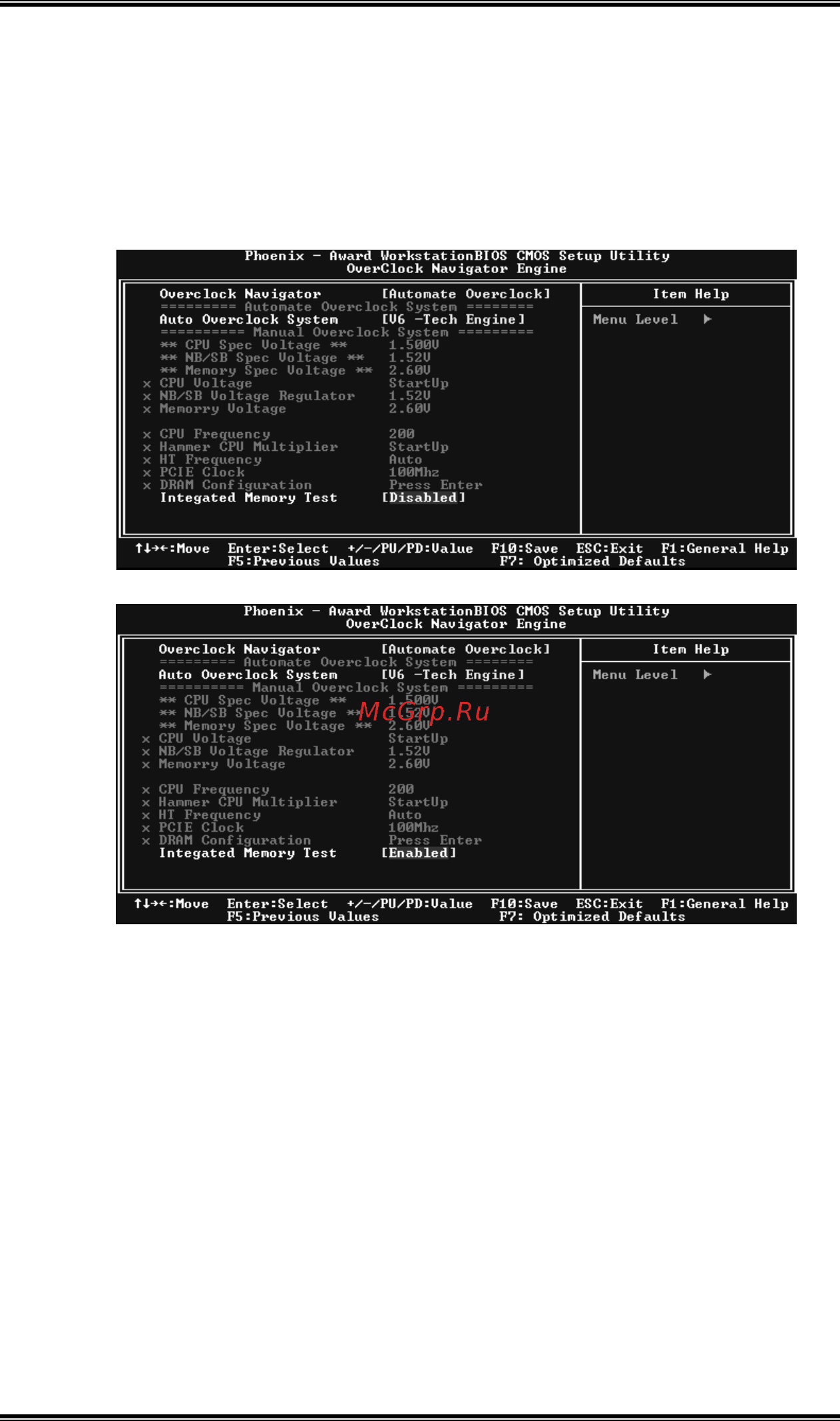

Step 1:
The default setting under this item is “Disabled”; the condition
parameter should be changed to “Enable” to proceed this test.
↓
Step 2:
Save and Exit from CMOS setup and reboot the system to activate
this test.
Run this test for 5 minutes (minimum) to ensure the memory
stability.
Step 3:
When the process is done, change the setting back from “Enable” to
“Disable” to complete the test.
