Biostar T-Series TForce4/ TForce4 U
User’s Manual
37

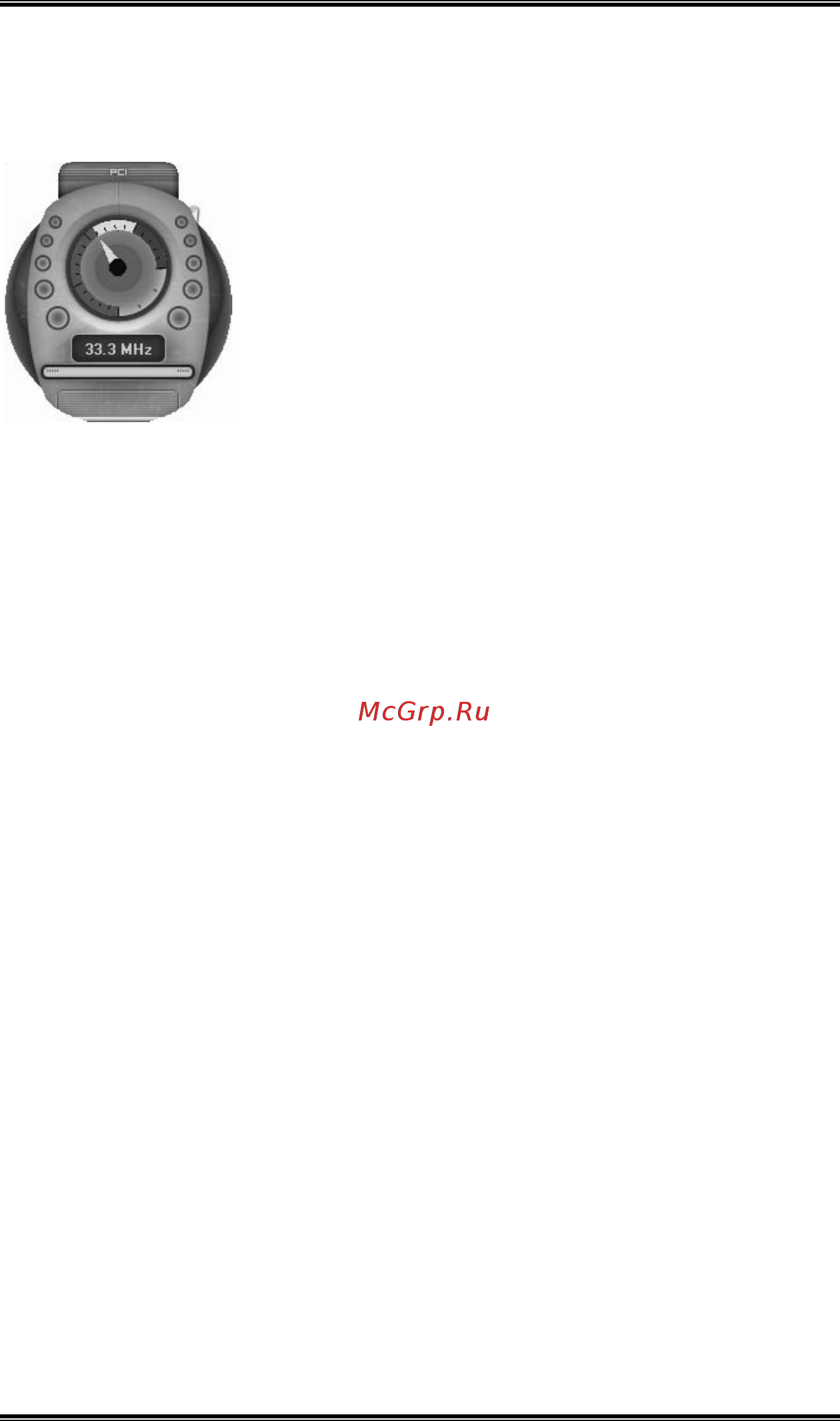

PCI Overclocking Setting:
This diagram shows present PCI working
status and helps to monitor PCI
peripherals working status.
This item cannot be adjusted.
