Using scan to e-mail operations
4-6 SU-502

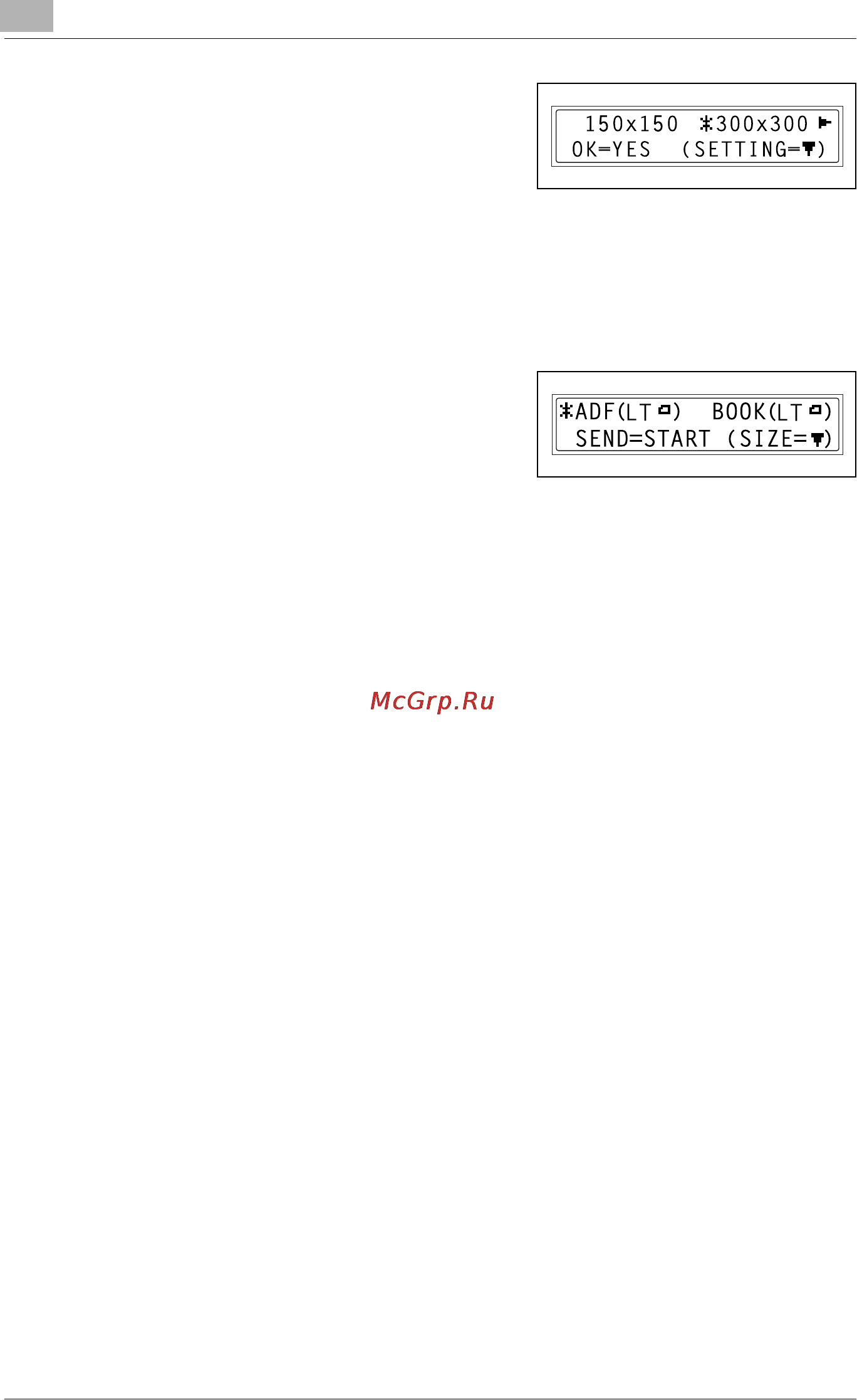

9 Press the * and ) keys to select the
resolution (150 × 150 dpi, 300 × 300
dpi, or 600 × 600 dpi), and then press
the [Yes] key.
– The 600 × 600 dpi resolution cannot be selected if GRAY was se-
lected as the scan mode in step 8.
– To specify detailed settings for the scan mode, press the , key.
– For information on specifying detailed settings, refer to “Changing
the scan mode settings” on page 4-10.
10 Press the * and ) keys to select
ADF.
– To change the size of the
scanned image, press the , key.
– For information on changing the size, refer to “Changing the
scanned image size” on page 4-12.
11 Press the [Start] key.
Scanning starts, and then the scan data is sent to the recipients.
