Getting ready

3-44 SU-502

Adding a new one-touch dial setting

1 Start up PageScope Web Connection.

– Refer to “Using PageScope Web Connection” on page 2-19.

2 Log in to the administrator mode.

3 Click [One-Touch Dial Setting] in the menu on the “Fax” tab.

4 Click the one-touch dial number where you wish to add a new address.

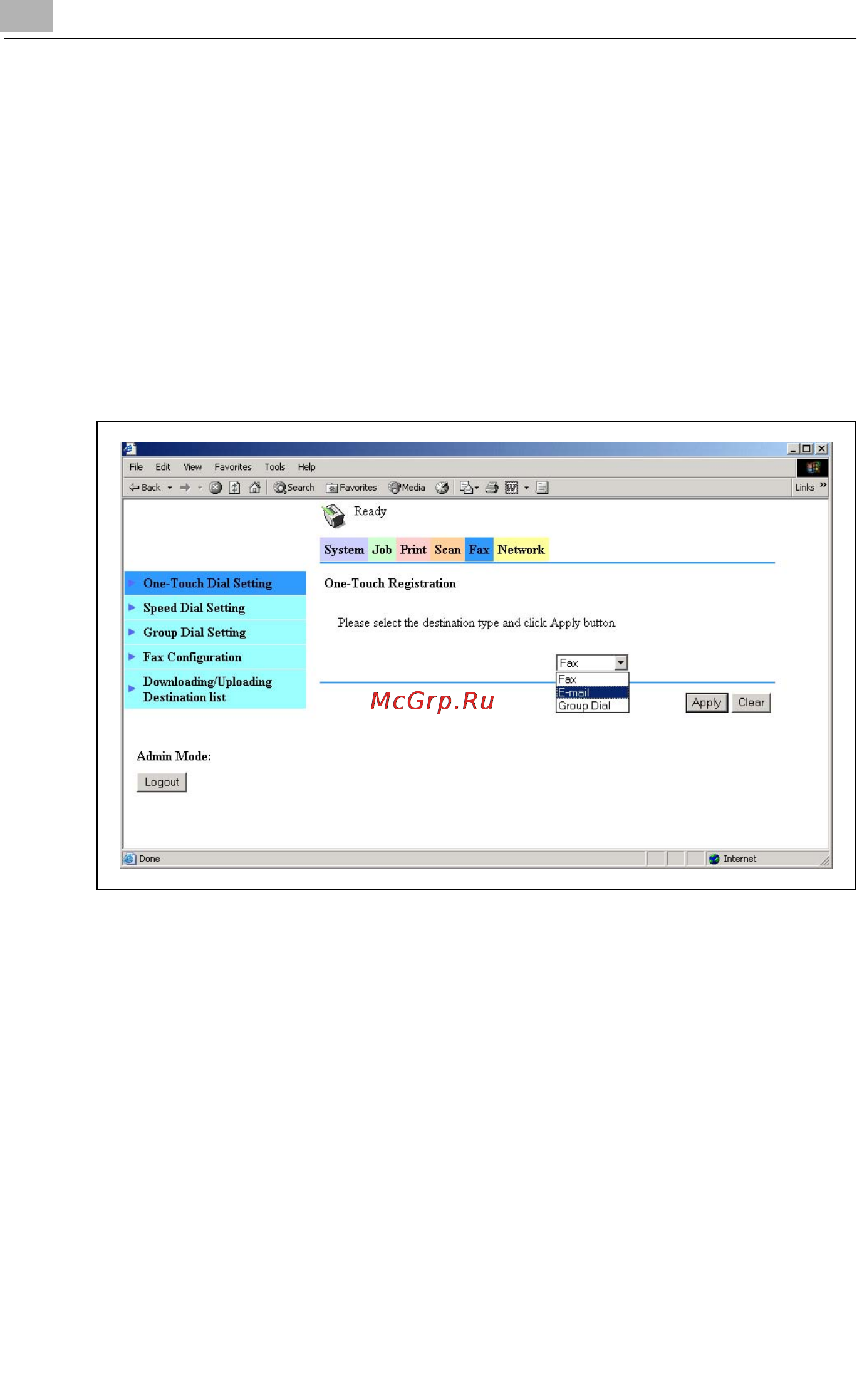

The one-touch registration screen appears.

5 Select E-mail from the drop-down list, and then click the [Apply] but-

ton.
