Konica Minolta bizhub 162fR [143/172] Checking e mail manually

Using internet faxing operations

SU-502 6-19

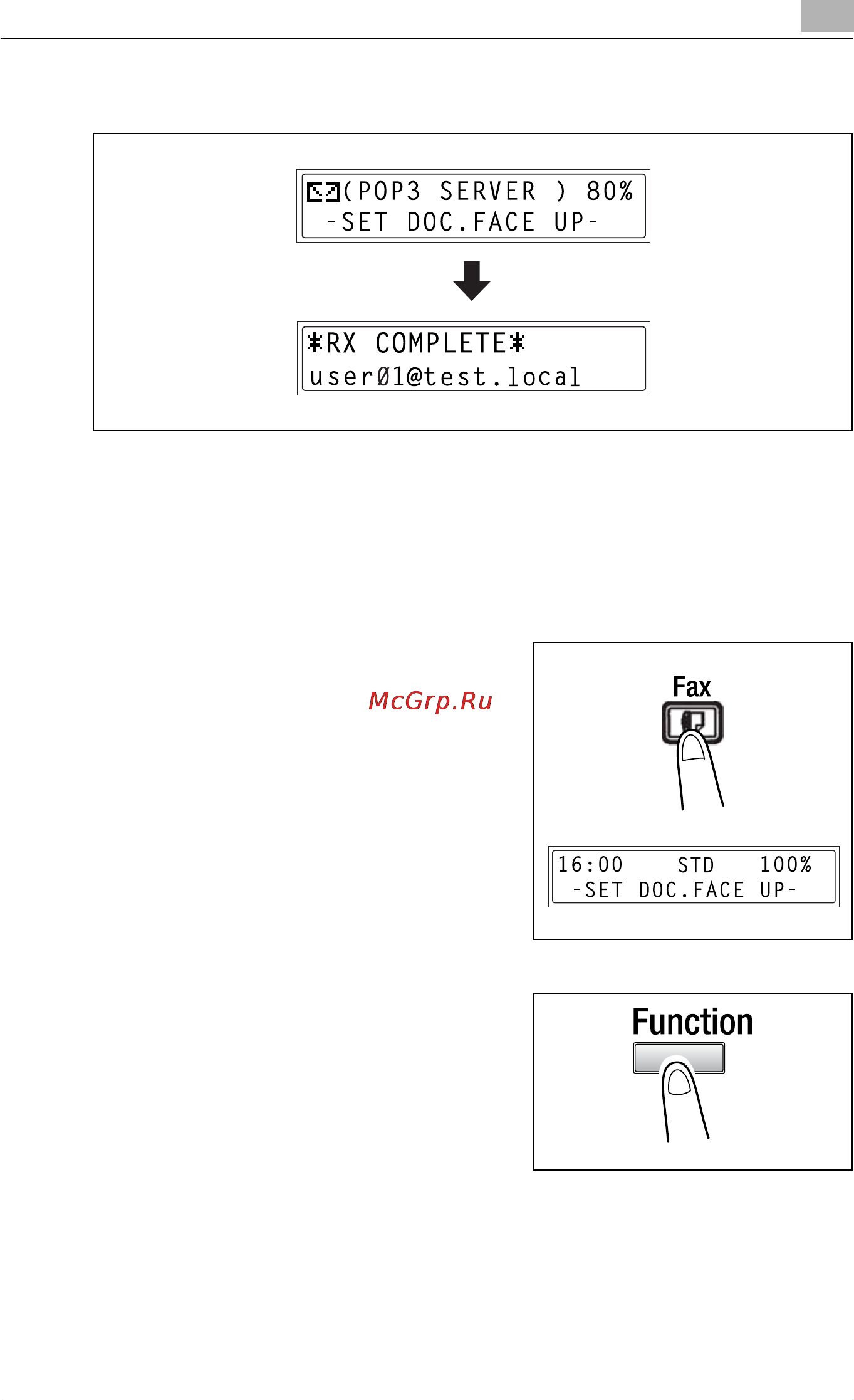

Screen during auto reception:

6.6.3 Manual reception

If the machine is not set to automatically retrieve messages, or you want to

check for messages immediately, e-mail can be checked manually.

Checking e-mail manually

1 Press the [Fax] key. The machine

switches to fax mode, and the fax

screen appears.

2 Press the [Function] key.

bizhub160_su502.book Page 19 Tuesday, May 17, 2005 8:19 AM
