Konica Minolta bizhub 162fR [90/172] Specifying the setting for speed dialing ftp server

Getting ready

3-52 SU-502

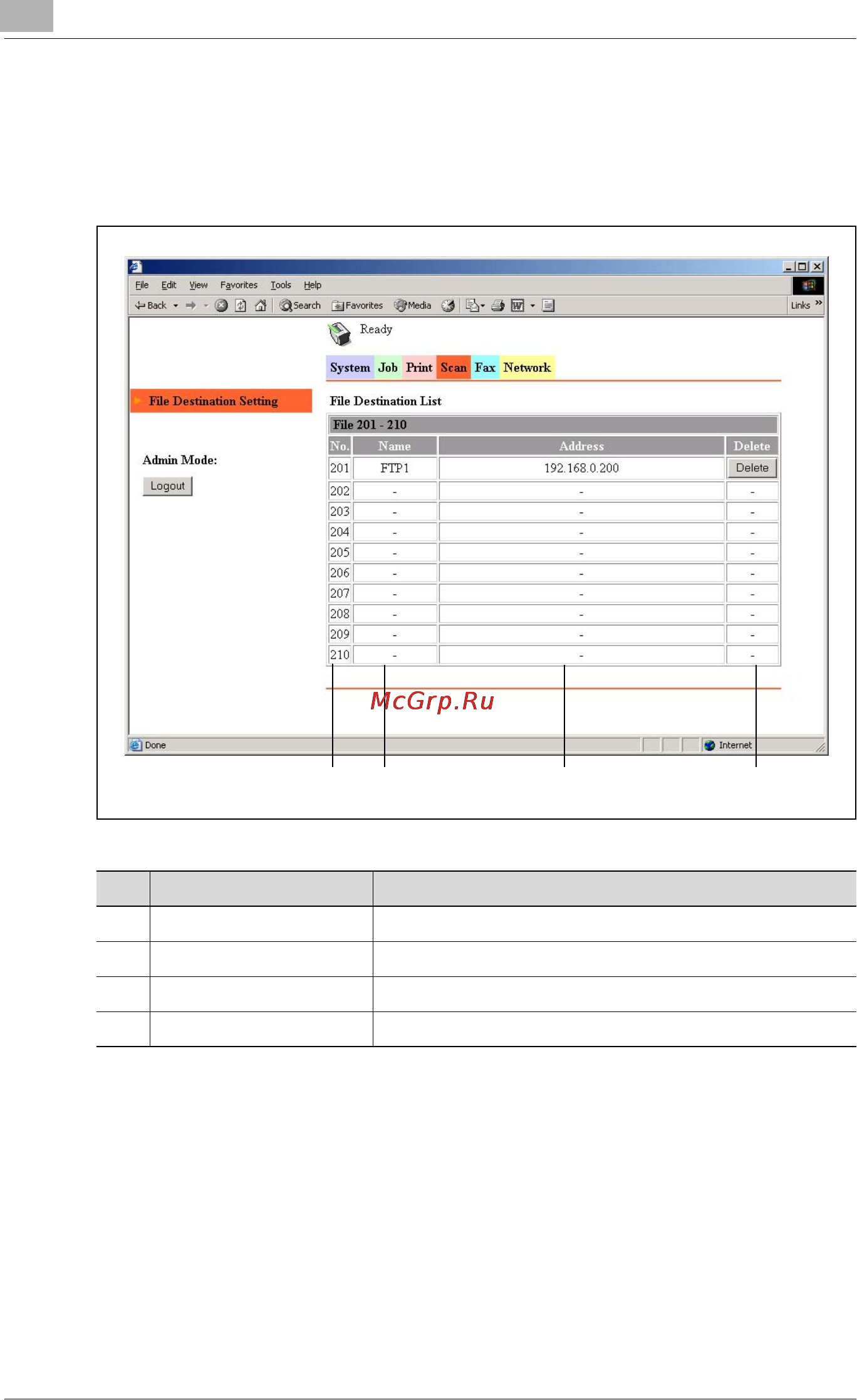

Specifying the setting for speed dialing (FTP server)

From the page displayed by clicking [File Destination Setting] in the menu on

the “Scan” tab, FTP servers can be specified for speed dial numbers on the

machine.

1 3 42

No. Part name Function

1 No. Speed dial number (201 to 210)

2 Name FTP server name

3 Address FTP server address

4 [Delete] button Click this button to delete the selected speed dial setting.

bizhub160_su502.book Page 52 Tuesday, May 17, 2005 8:19 AM
