Using scan to e-mail operations

SU-502 4-13

4.1.5 Specifying the default settings for the scan settings

The default settings for resolution, data format, and encoding method used

by the scan to e-mail and scan to server (FTP) functions can be specified.

Specifying the resolution

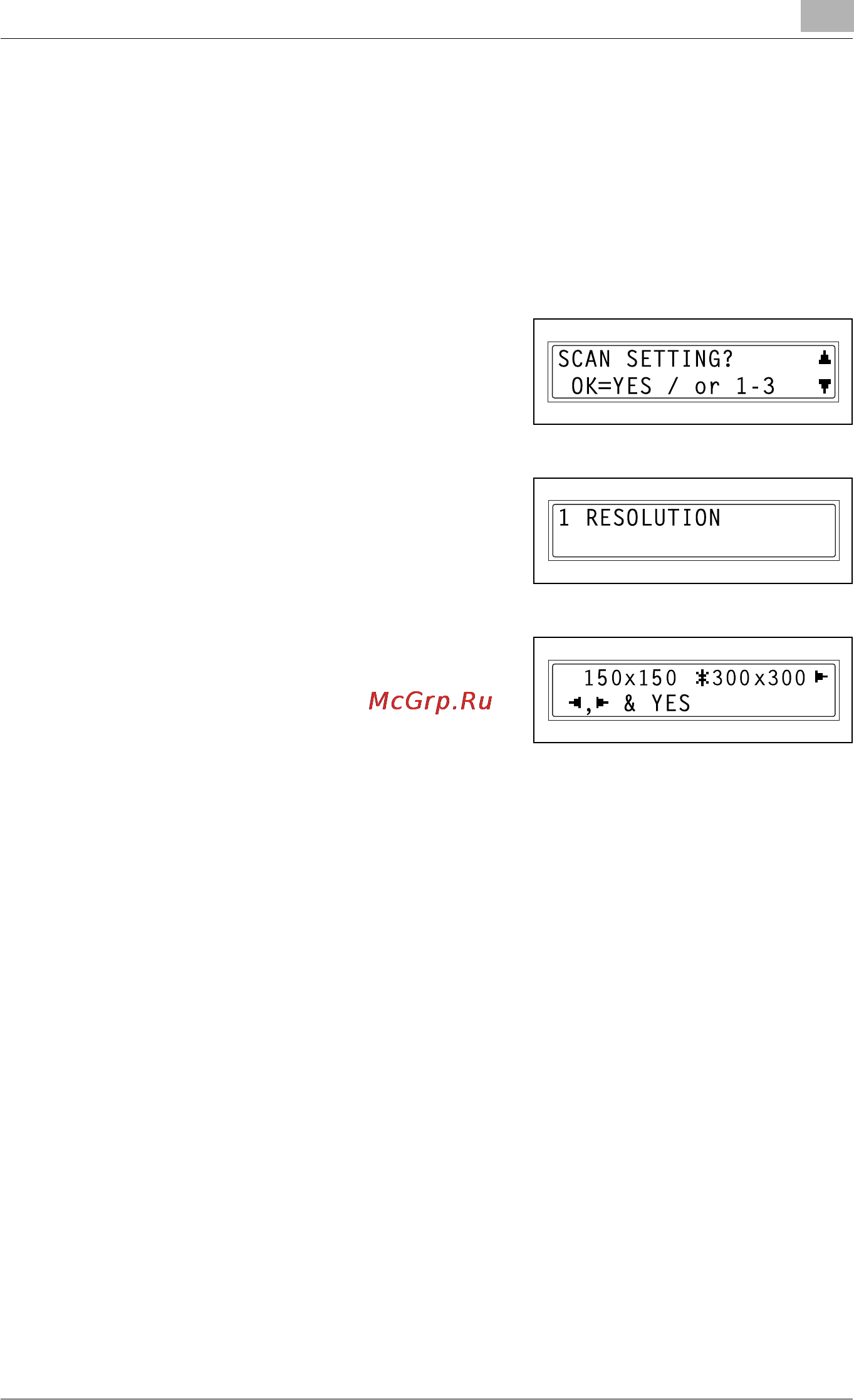

1 Press the [Utility] key.

2 Press the + and , key until SCAN

SETTING appears.

3 Press the [1] key on the 10-key pad

to select RESOLUTION.

4 Press the * and ) keys to select the

resolution (150 × 150 dpi, 300 × 300

dpi, or 600 × 600 dpi), and then press

the [Yes] key.

The scan setting screen appears.
