Using scan to e-mail operations
4-14 SU-502
Specifying the data format

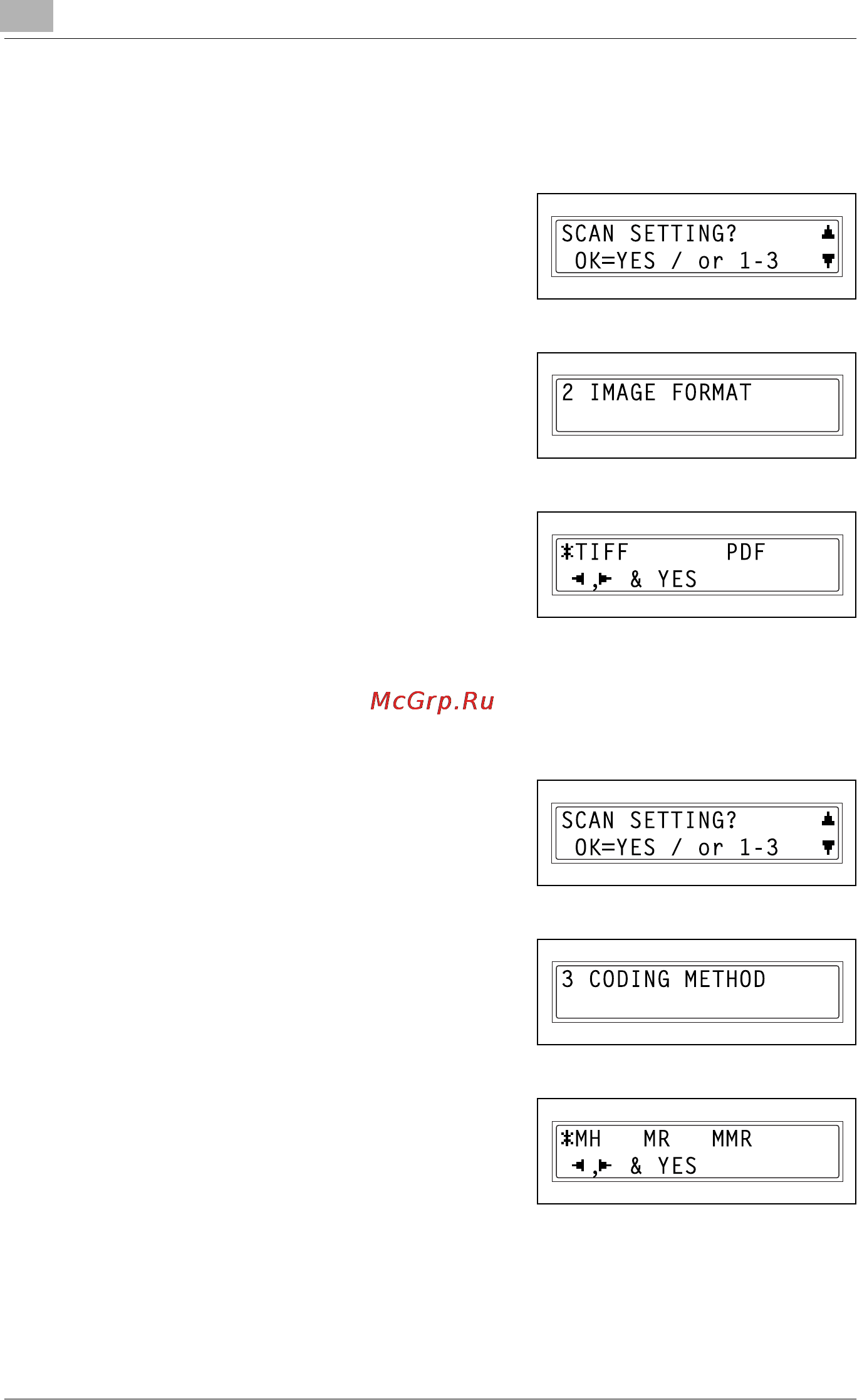

1 Press the [Utility] key.
2 Press the + and , key until SCAN
SETTING appears.
3 Press the [2] key on the 10-key pad
to select IMAGE FORMAT.
4 Press the * and ) keys to select the
data format (TIFF or PDF), and then
press the [Yes] key.
The scan setting screen appears.
Specifying the encoding method
1 Press the [Utility] key.
2 Press the + and , key until SCAN
SETTING appears.
3 Press the [3] key on the 10-key pad
to select CODING METHOD.
4 Press the * and ) keys to select the
compression encoding method (MH,
MR or MMR), and then press the
[Yes] key.
The scan setting screen appears.
bizhub160_su502.book Page 14 Tuesday, May 17, 2005 8:19 AM
