Getting ready
3-30 SU-502

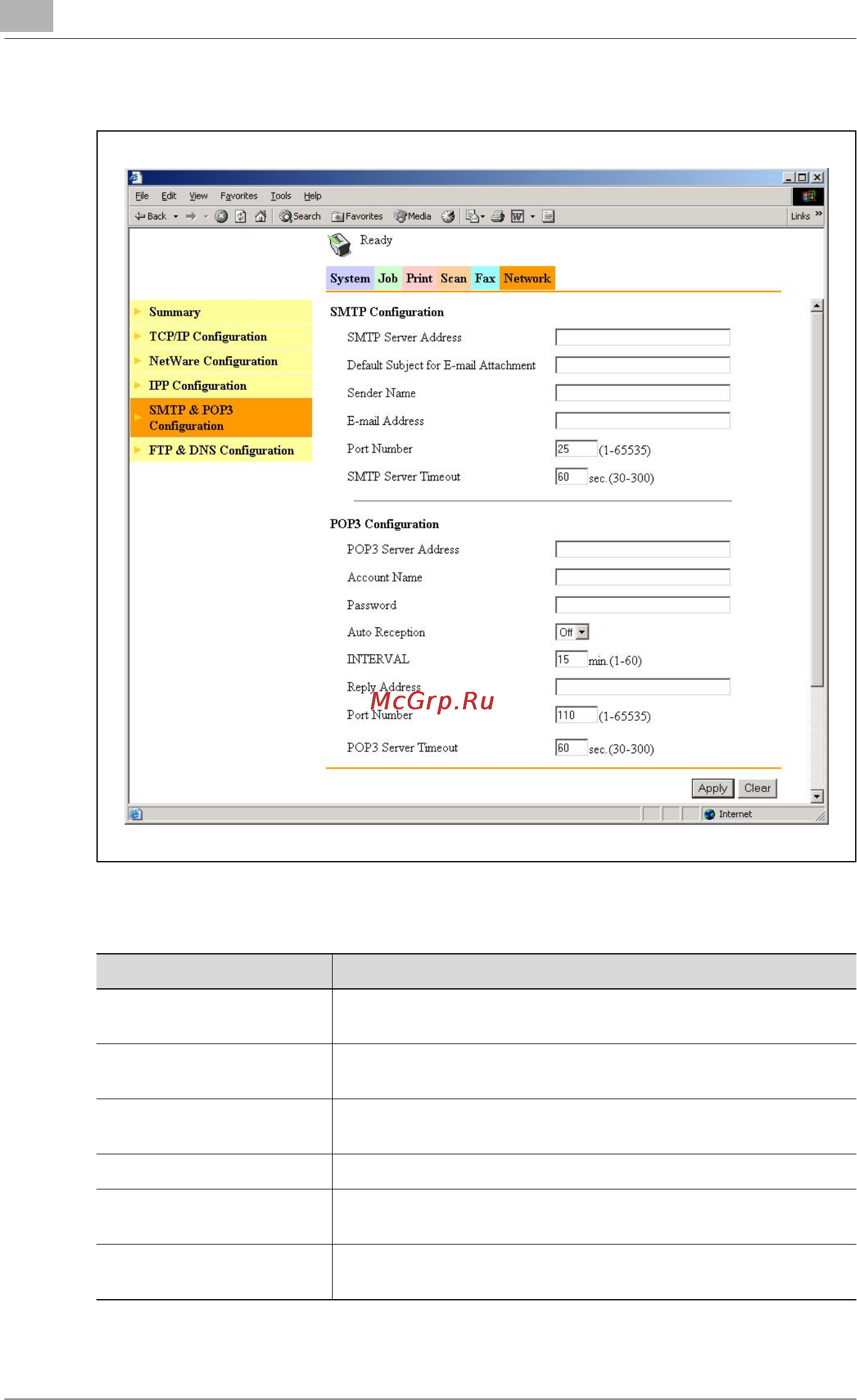

SMTP & POP3 configuration
SMTP configuration
Function Description
SMTP server address This function is used to specify the IP address or host name of an
SMTP server. (Up to 64 characters)
Default subject for e-mail
attachment
This function is used to specify the default subject line when
sending scan data as an e-mail attachment. (Up to 20 characters)
Sender name This function is used to specify the sender’s name when sending
scan data as an e-mail attachment. (Up to 20 characters)
E-mail address This function is used to specify the e-mail address of the sender.
Port number This function is used to specify the port number for the SMTP
server. Normally, port number 25 is used. (1 to 65535)
SMTP server timeout This function is used to specify the length of time (30 to 300 sec-
onds) until the connection to the SMTP server times out.
