Konica Minolta bizhub 162fR [101/172] Using the original glass

Using scan to e-mail operations

SU-502 4-7

4.1.2 Using the original glass

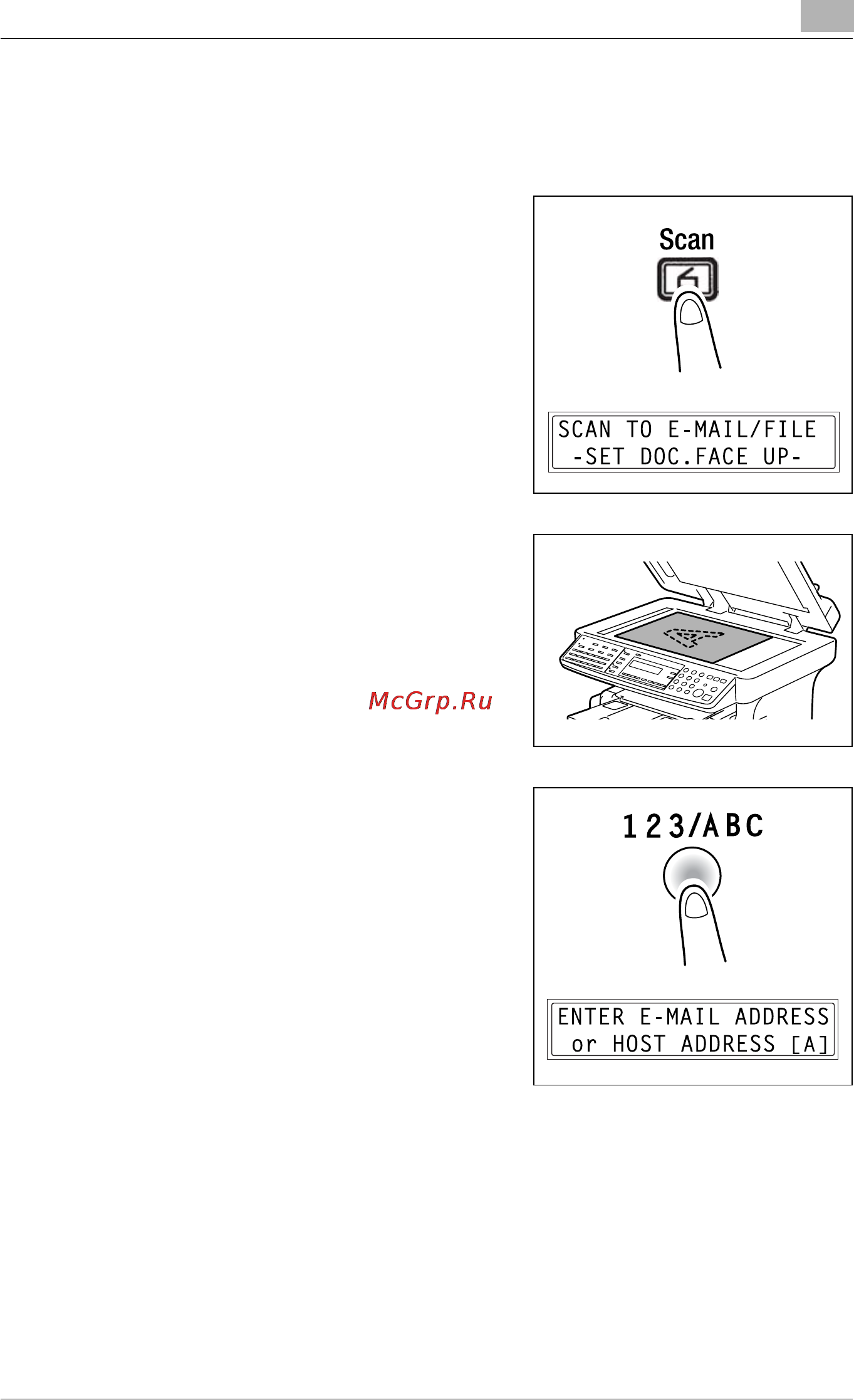

How to use the original glass

1 Press the [Scan] key.

The machine switches to scan mode,

and the scan screen appears.

2 Open the original cover and place the

document on the original glass.

– Load the document with the sur-

face to be scanned face down.

– Align the document with the

scale marks at the top and left

side of the original glass.

3 Press the [123/ABC] key.

bizhub160_su502.book Page 7 Tuesday, May 17, 2005 8:19 AM
