Konica Minolta bizhub 162fR [98/172] Transmission procedures

Using scan to e-mail operations

4-4 SU-502

4.1 Transmission procedures

4.1.1 Using the automatic document feeder

How to use the automatic document feeder

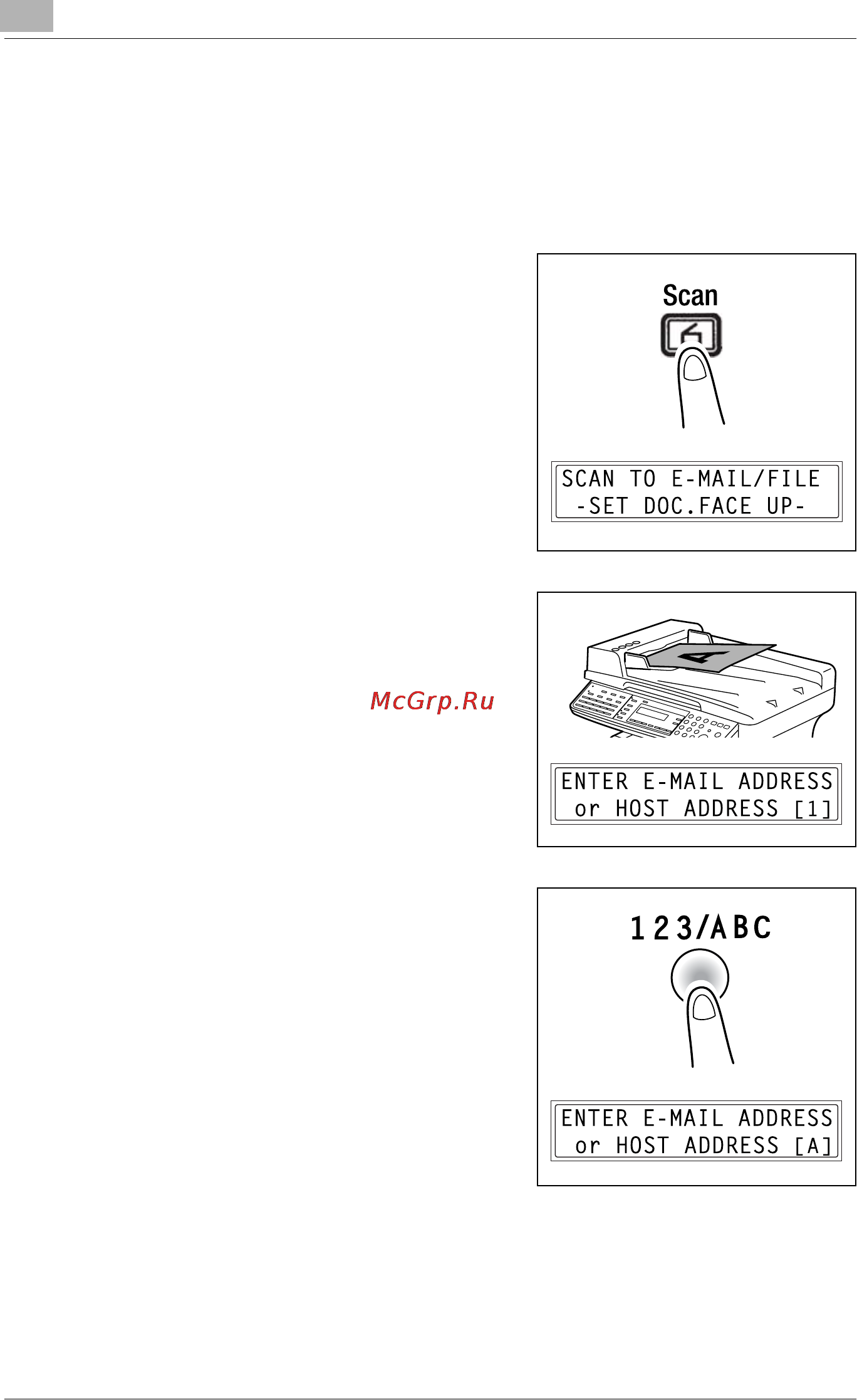

1 Press the [Scan] key.

The machine switches to scan mode,

and the scan screen appears.

2 Place the document to be scanned in

the automatic document feeder.

– Adjust the guides to the size of

the document.

– Load the document with the sur-

face to be scanned face up.

3 Press the [123/ABC] key.
