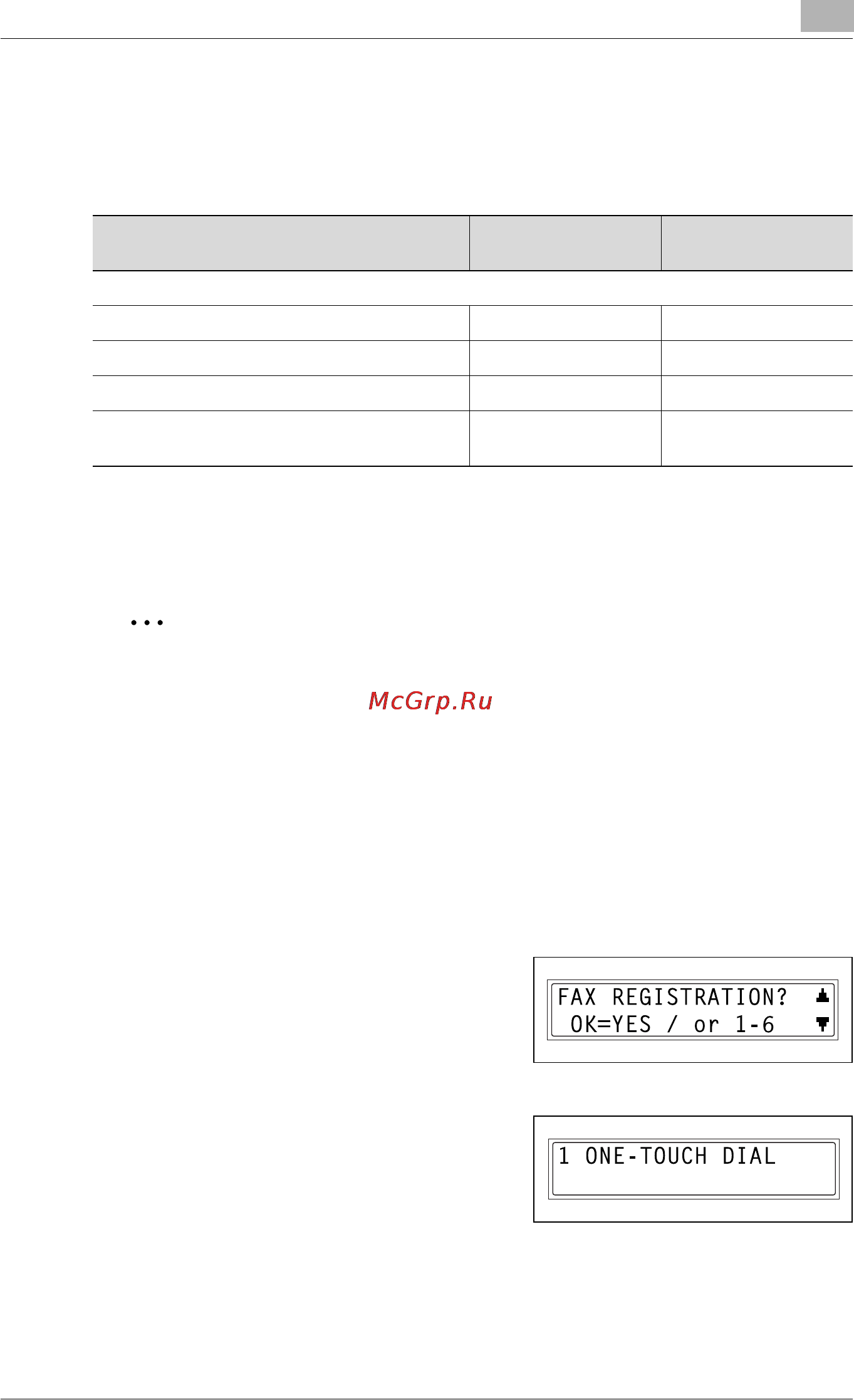

Getting ready
3
SU-502 3-37
3.5 Adding destinations
Destinations can be added using the control panel of the machine or using
PageScope Web Connection.
3.5.1 Using the control panel to add addresses
2
Note
For information on changing or deleting e-mail addresses from the con-
trol panel, refer to the manual provided with the machine.
Specifying the settings for a one-touch dial key
This procedure cannot be used to register FTP server addresses. Register
FTP server addresses from PageScope Web Connection. (For details, refer
to “Specifying the setting for speed dialing (FTP server)” on page 3-52.)
1 Press the [Utility] key.
2 Press the , key until FAX REGIS-
TRATION appears.
3 Press the [1] key on the 10-key pad
to select ONE-TOUCH DIAL.
E-mail address location Control panel PageScope
Web Connection
o: Can be added; -: Cannot be added
One-touch dial key oo
Speed dial number oo
Group dial key oo
Speed dial number
(with FTP server addresses added)
- o
