Getting ready
3-38 SU-502

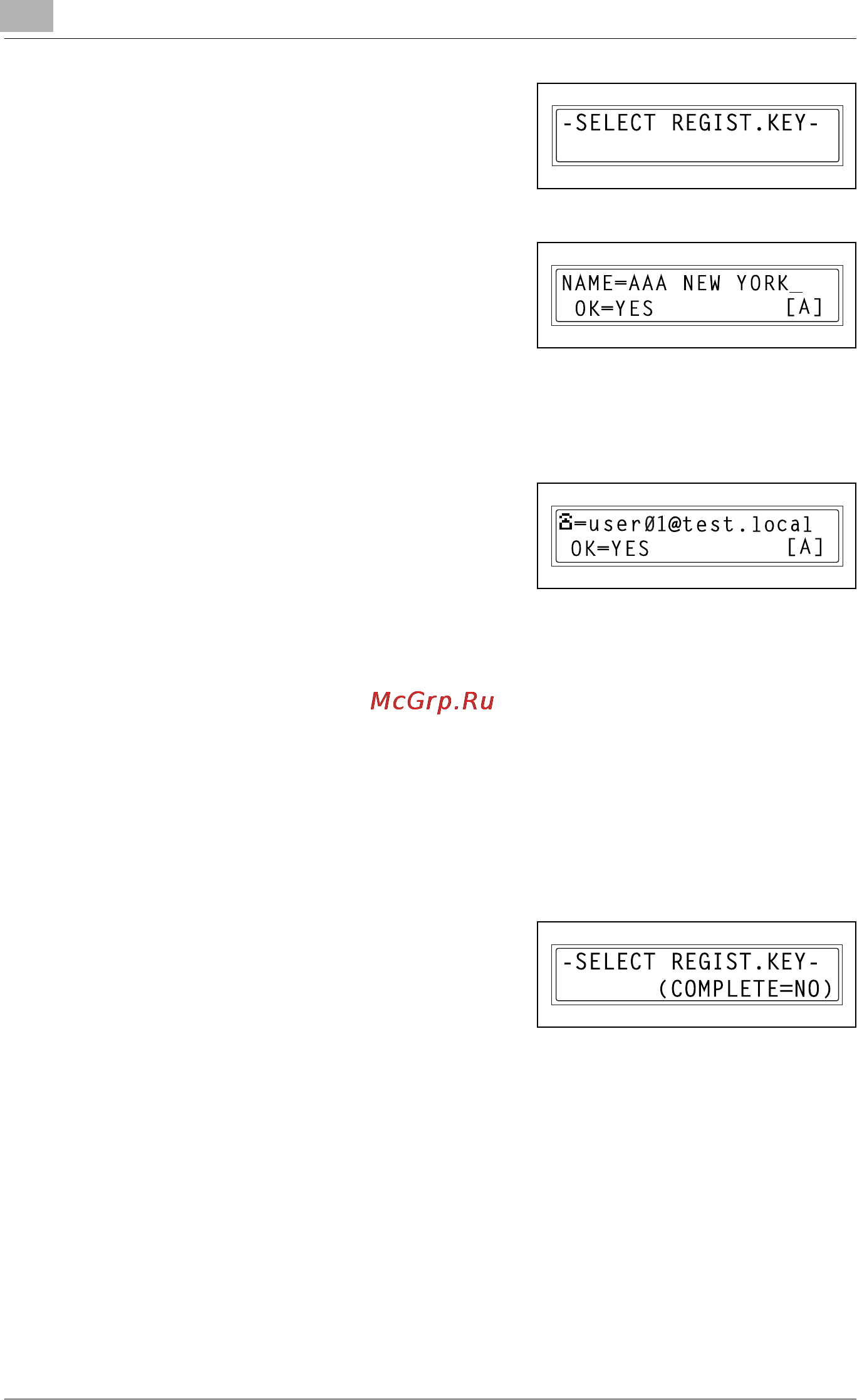

4 Press the one-touch dial key where
you wish to add an address.
5 Enter the recipient name.
– For information on entering text,
refer to “Entering text characters”
on page 2-15.
– Up to 20 characters can be entered for the recipient name.
6 Press the [Yes] key.
7 Enter the e-mail address of the recip-
ient.
– For information on entering text,
refer to “Entering text characters”
on page 2-15.
– Up to 64 characters can be entered for the e-mail address.
– If only numbers are entered for the address, it will be regarded as a
fax number.
8 Press the [Yes] key.
– The [Yes] key cannot be pressed if the e-mail address does not
contain “@”.
– The settings are registered. To add information for other one-touch
dial keys, repeat steps 4 through 8.
9 Press the [No/C] key when you have
finished adding addresses.
The fax registration screen appears
again.
