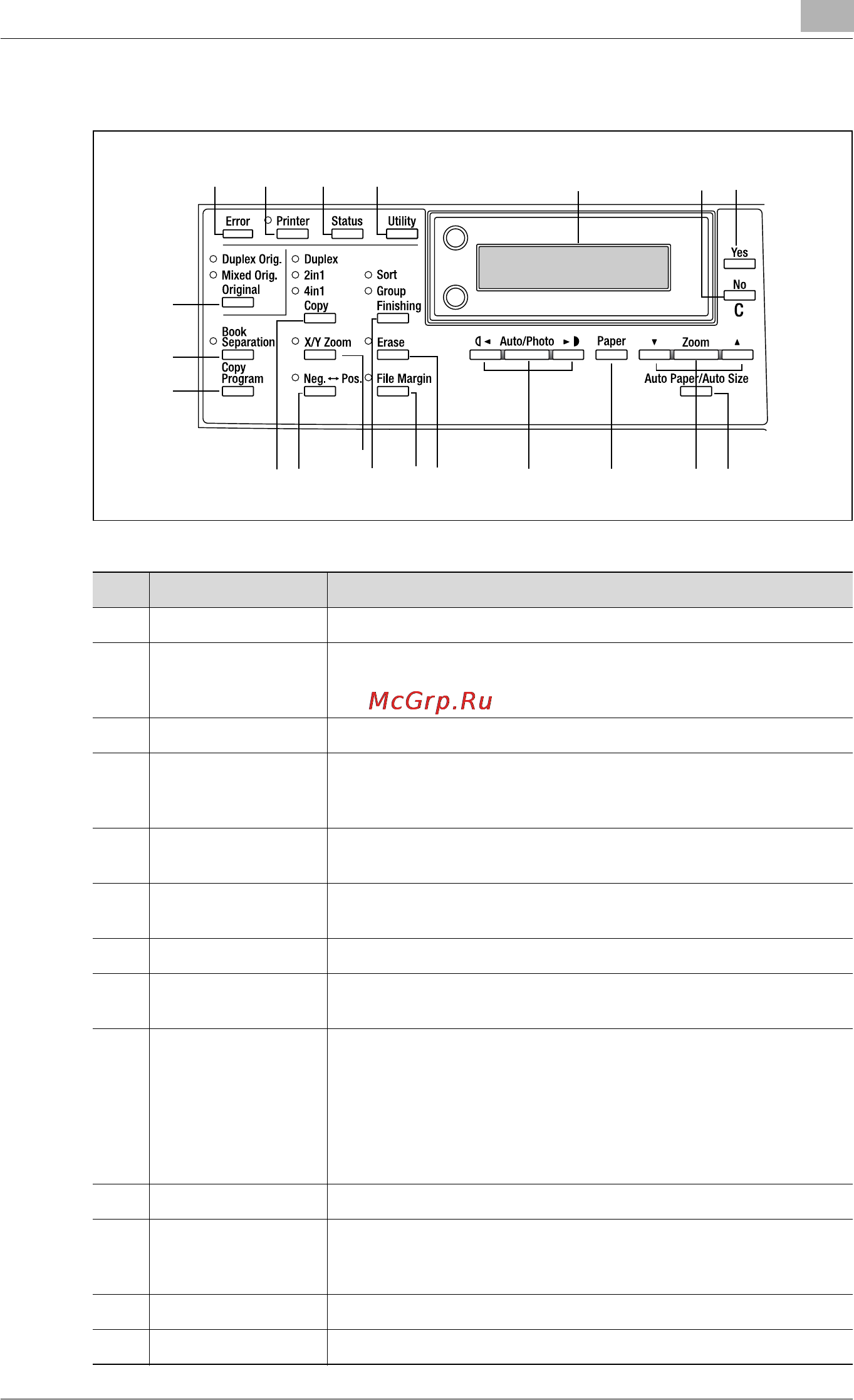

2.6.2 bizhub 162/210 – Control panel parts and their functions

1012

No. Part name Function

1 “Error” indicator Lights up or flashes if an error has occurred.

2 [Printer] key/indica-

tor

Lights up while data is being printed from the computer and flash-

es while data is being sent.

For details, refer to the Printer Controller User’s Guide.

3 [Status] key Used to view the counters.

4 [Utility] key Used to enter utility mode and display the first utility mode screen.

• Machine setting, paper source setup, user management, ad-

min. management, copy setting 1 & 2

5 Display Displays setting menus, error messages, and specified settings

such as the number of copies and the zoom ratio.

6 [No/C] key Erases the entered numbers and letters.

Returns to the previous screen.

7 [Yes] key Confirms the current setting.

8 [Auto paper/Auto

size] key

Used to select between the auto paper or the auto size function.

9 [Zoom] key,

, and + keys

• Used to select a preset enlargement or reduction ratio.

• A zoom ratio between × 0.25 and × 4.00 can be selected when

the paper size is selected manually. (Manual paper selection)

• A zoom ratio between × 0.50 and × 2.00 can be selected when

the paper size is selected automatically. (Auto paper)

• Used to specify the selection above or below in setting screens

and menus.

10 [Paper] key Used to select the size of the paper to be printed on.

11 [Auto/Photo] key,

* and ) keys

• Used to specify the scanning density of copies.

• Used to specify the selection at the left or right in setting

screens.

12 [Erase] key Used to select the area of the document that is erased.

13 [File margin] key Press to select the file margin function.
