Overview

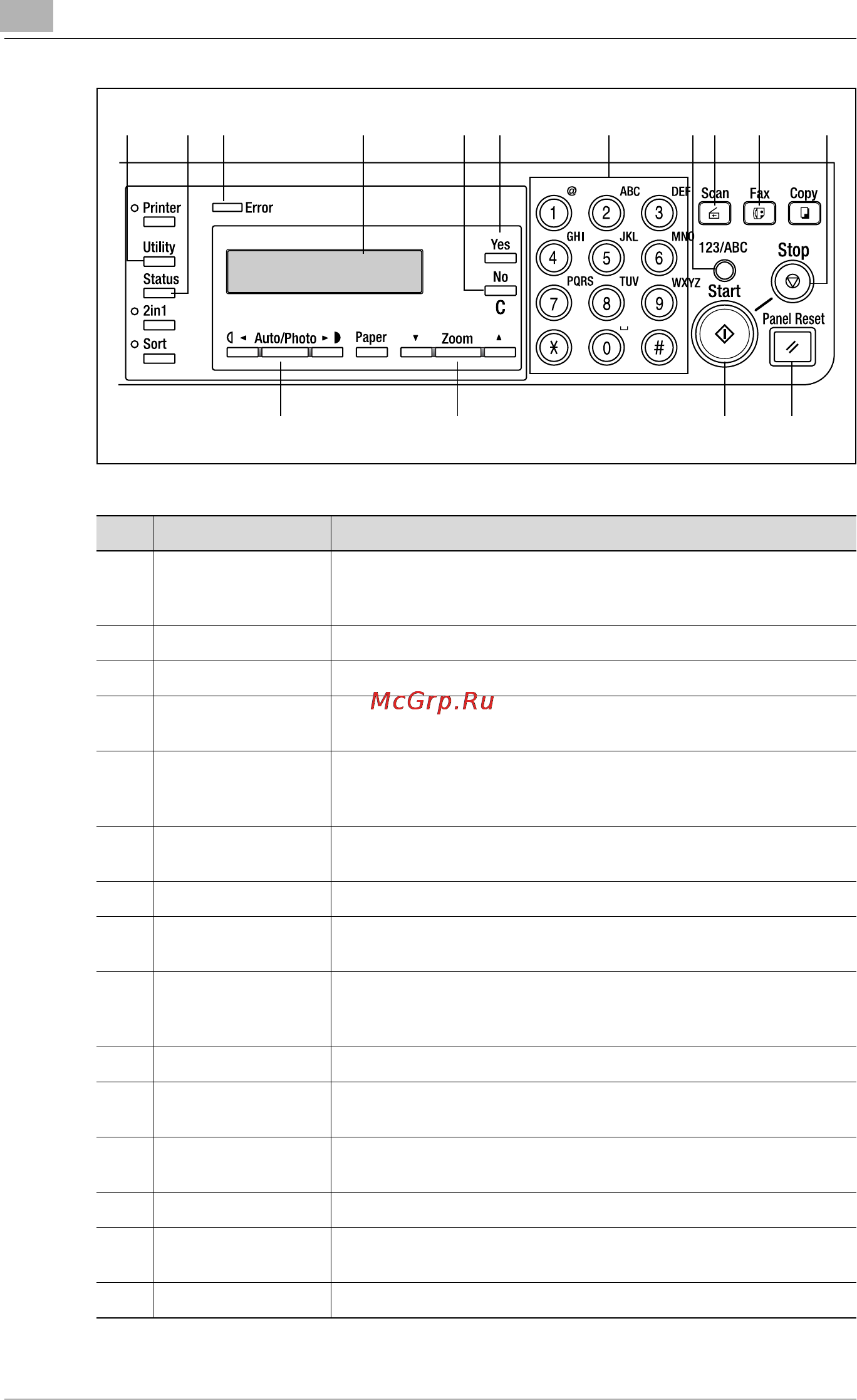

2-10 SU-502

169612

7 13

17 1915

18 20

No. Part Name Function

6 [Utility] key Used to display the different utility mode screens.

MACHINE SETTING, FAX REGISTRATION, E-MAIL SETTING 1,

E-MAIL SETTING 2, NETWORK SETTING, SCAN SETTING

7 [Status] key Used to check the status of a transmission.

8 “Error” indicator Lights up if an error has occurred.

9 Display Displays settings details, such as e-mail addresses, settings men-

us, and error messages.

10 * and ) keys

[Auto/Photo] key

Used to specify the scanning mode when using the network scan-

ning functions. Used to select the item to the left or right of the

current position in settings screens.

11 + and , keys

[Zoom] key

Used to select the item above or below the current position in set-

tings screens or lists.

12 [Yes] key Used to confirm settings.

13 [No/C] (clear) key Used to delete characters or numbers that have been entered in

a setting field. Used to return to the previous screen.

14 10-key pad Used to enter settings values. Used to enter numbers/characters.

E-mail addresses and other text can be entered with these keys.

Used to enter speed dial numbers.

15 [123/ABC] key Used to switch between number and character entry.

16 [Scan] key Used to switch between different scan modes. This key lights up

in green to indicate that the machine is in scan mode.

17 [Fax] key Used to send scan data or receive e-mail messages when using

the Internet fax function.

18 [Start] key Used to start scanning, or send e-mail messages/files.

19 [Stop] key Used to stop the scanning of documents, stop sending or receiv-

ing, or to stop printing.

20 [Panel Reset] key Used to cancel all current operations.
