Specifying the settings for a group dial key
FTP server addresses cannot be registered as a group.

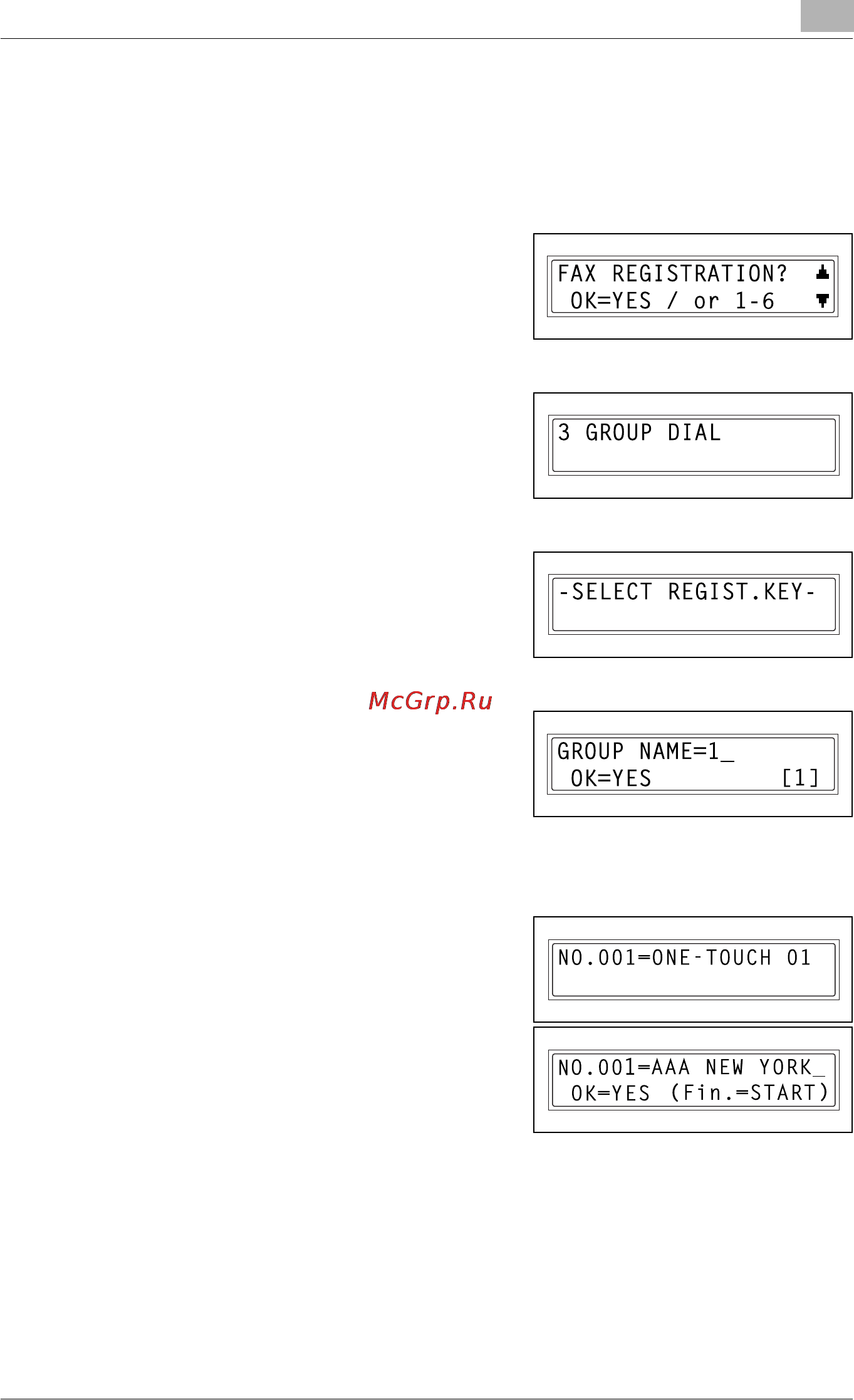

1 Press the [Utility] key.
2 Press the , key until FAX REGIS-
TRATION appears.
3 Press the [3] key on the 10-key pad
to select GROUP DIAL.
4 Press the one-touch dial key where
you wish to add a group dial setting.
5 Enter a group name, and then press
the [Yes] key.
– For information on entering text,
refer to “Entering text characters”
on page 2-15.
– Up to 20 characters can be entered for the group name.
6 Use the one-touch dial keys and
speed dial numbers to enter the ad-
dress for the recipient.
7 Select the next destination, and then
press the [Yes] key.
– Repeat steps 6 and 7 until all of
the destinations have been spec-
ified.
– Up to 50 destinations can be specified for one group dial key.
– In this case, the numbers of destinations specified for the one-
touch (group dial) key are added to the current group dial setting.
