Getting ready

3-40 SU-502

8 Press the [Yes] key.

– The [Yes] key cannot be pressed if the e-mail address does not

contain “@”.

– The settings are registered. To add information for other speed dial

numbers, repeat steps 4 through 8.

9 Press the [No/C] key when you have

finished adding addresses.

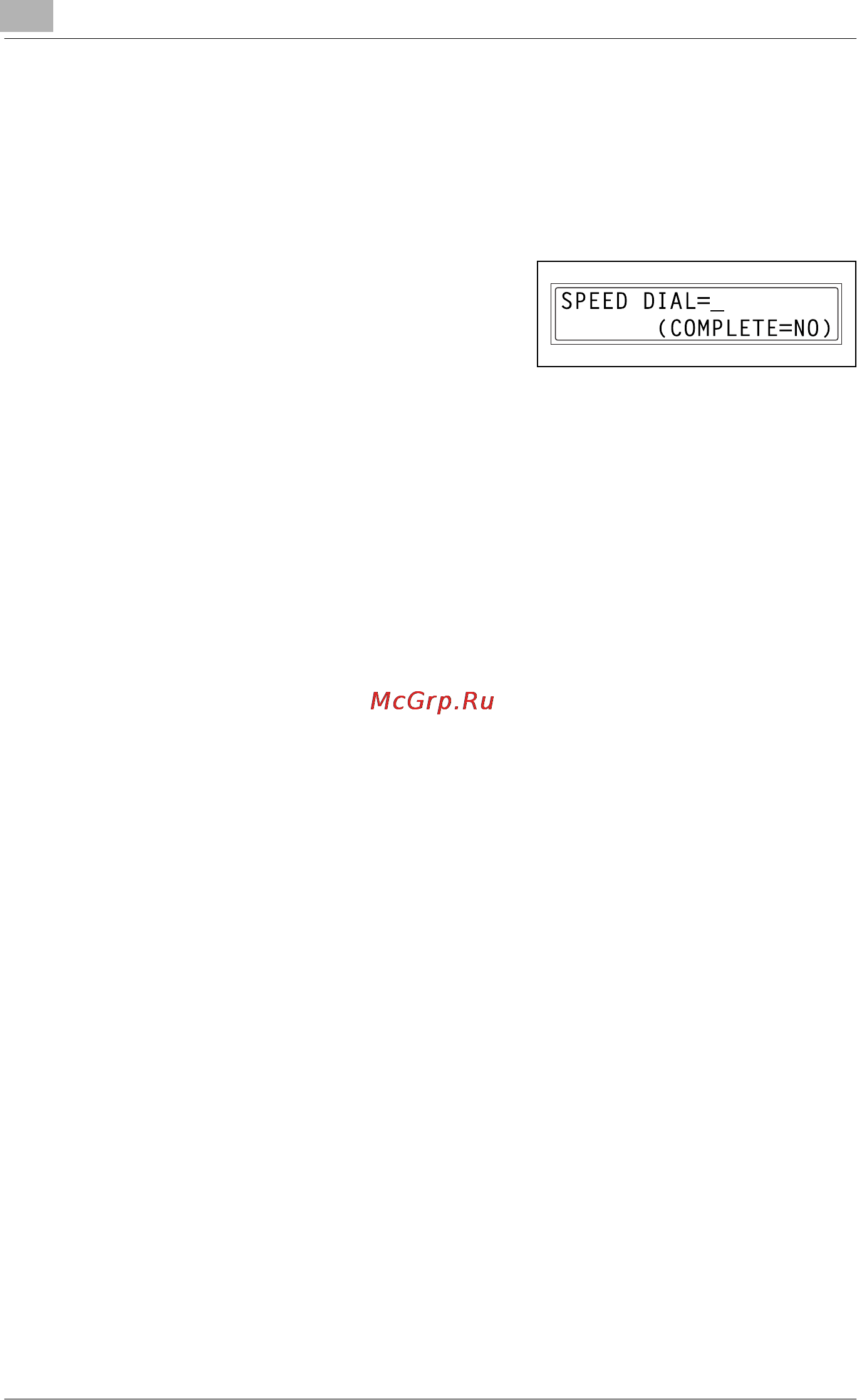

The fax registration screen appears

again.

bizhub160_su502.book Page 40 Tuesday, May 17, 2005 8:19 AM
