Konica Minolta bizhub 162fR [128/172] Using the automatic document feeder

Using internet faxing operations

6-4 SU-502

6.1 Procedure for sending internet faxes

6.1.1 Using the automatic document feeder

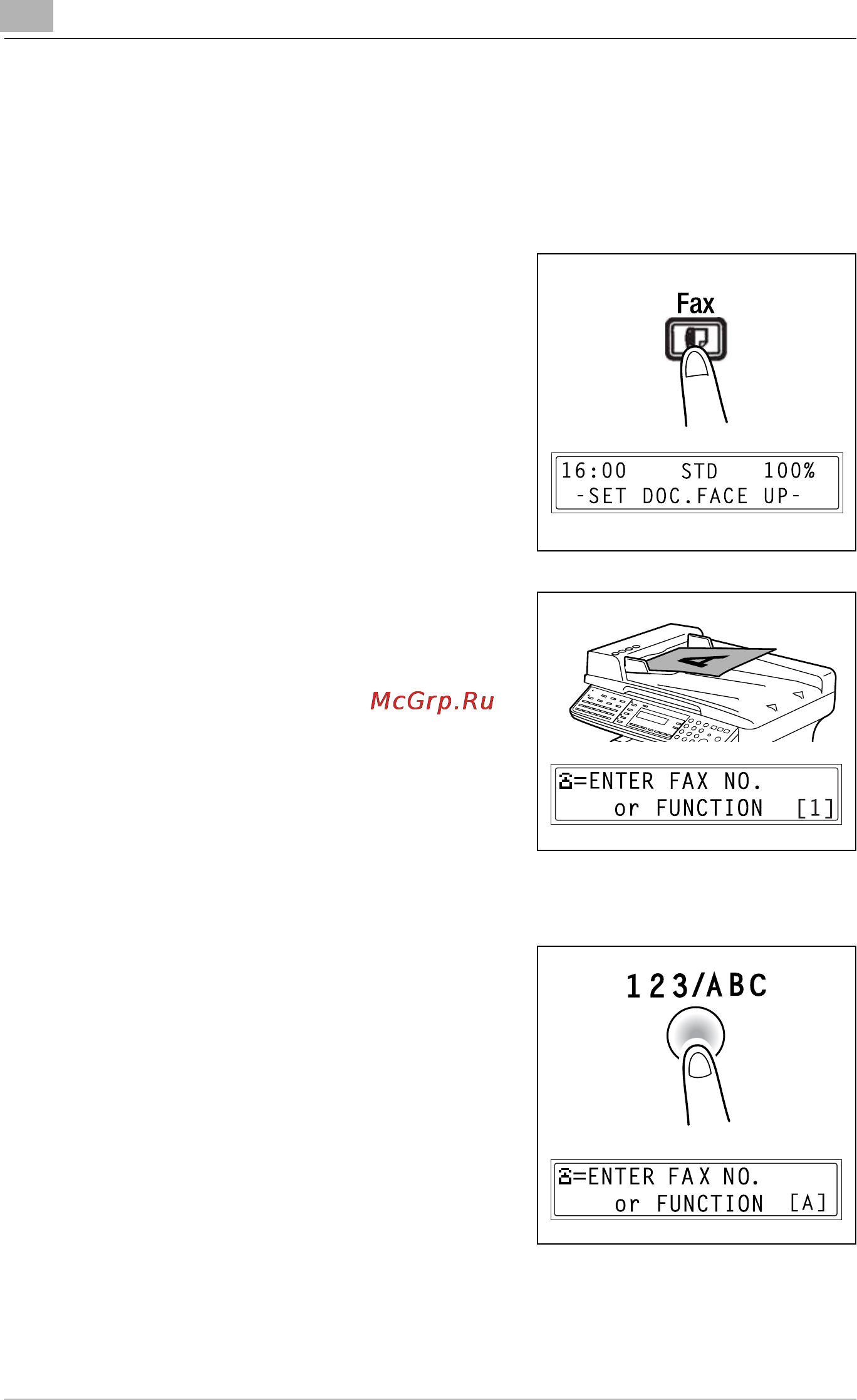

How to use the automatic document feeder

1 Press the [Fax] key.

The machine switches to fax mode,

and the fax screen appears.

2 Place the document to be scanned in

the automatic document feeder.

– Adjust the guides to the size of

the document.

– Load the document with the sur-

face to be scanned face up.

3 If necessary, adjust the fax resolution setting (p. 6-8).

4 Press the [123/ABC] key.

bizhub160_su502.book Page 4 Tuesday, May 17, 2005 8:19 AM
