2
Overview
2-22 SU-502

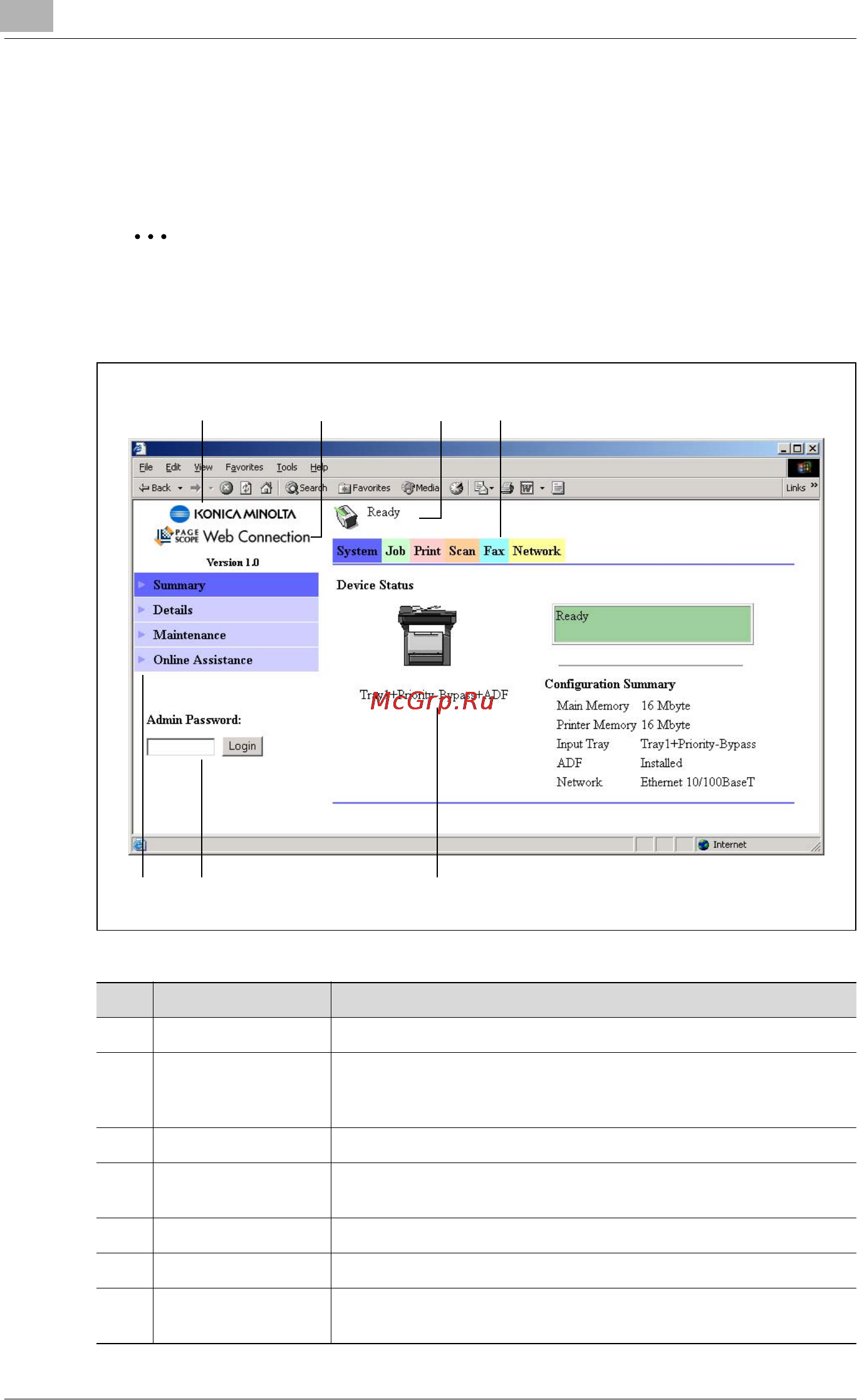

2.7.6 About the screen layout
The following screen appears when you access PageScope Web Connec-
tion.
2
Note
Screen images used in this manual may differ from the actual screen dis-
play. They are also subject to change without notice.
46
3 5
7
2
1
No. Part name Function
1 Logo Click this logo to jump to the manufacturer’s web site.
2 Logo Click to display the new screen containing the version informa-
tion. If the PageScope Web Connection logo is clicked in the
screen that appeared, the Web site for PageScope is displayed.
3 Status display Displays the current status of the machine.
4 Administrator pass-
word
Enter the administrator password to log in to the administrator
mode.
5 Tabs These are used to select the various categories of settings.
6 Menu This is used to select various setting items or display information.
7 Information/set-
tings display
Displays the details for the item selected from the menu.
bizhub160_su502.book Page 22 Tuesday, May 17, 2005 8:19 AM
