Getting ready
3
SU-502 3-11
Setting the IP address

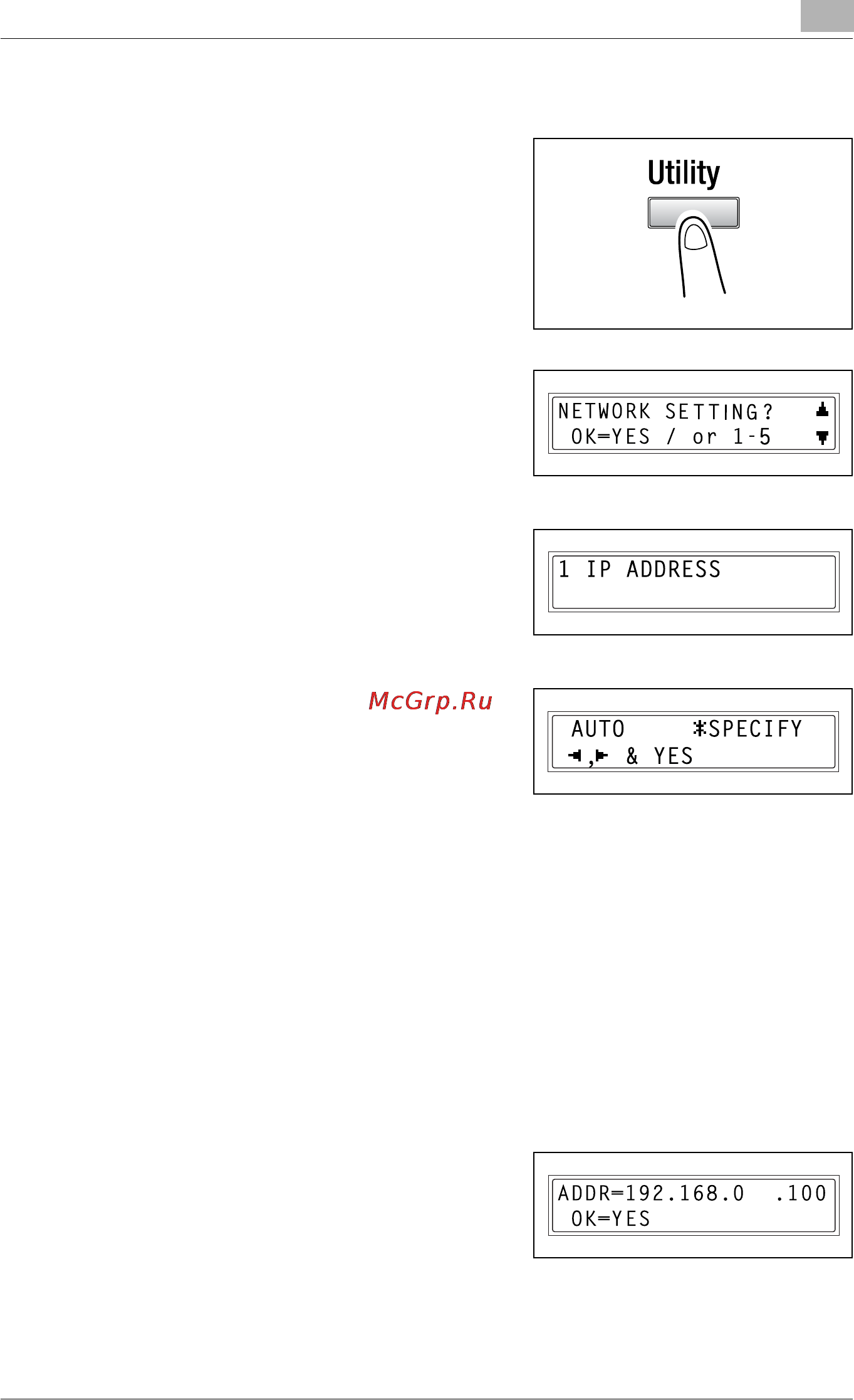

1 Press the [Utility] key.
The utility mode menu appears.
2 Press the + or , key until NET-
WORK SETTING appears.
3 Press the [1] key on the 10-key pad
to select IP ADDRESS.
4 Press the * and ) keys to select
AUTO or SPECIFY, and then press
the [Yes] key.
–If AUTO is selected, the IP ad-
dress is automatically acquired from the DHCP server. The network
setting screen appears.
–If SPECIFY is selected, the screen for entering the IP address ap-
pears. (Go to step 5.)
?
Is AUTO not available?
% AUTO is only available if there is a DHCP server on the network.
When AUTO is selected, there is no need to set the subnet mask or
gateway setting. If a fixed IP address is being used, “IP Address in
NVRAM” must be selected in PageScope Web Connection. Select
this option from the screen displayed after clicking [TCP/IP Config-
uration] in the menu on the “Network” tab.
5 Using the 10-key pad, enter the IP
address for the machine.
– The illustration at the right is an
example of an IP address. Con-
sult your network administrator for details about these settings.
6 Press the [Yes] key.
