Getting ready

3-42 SU-502

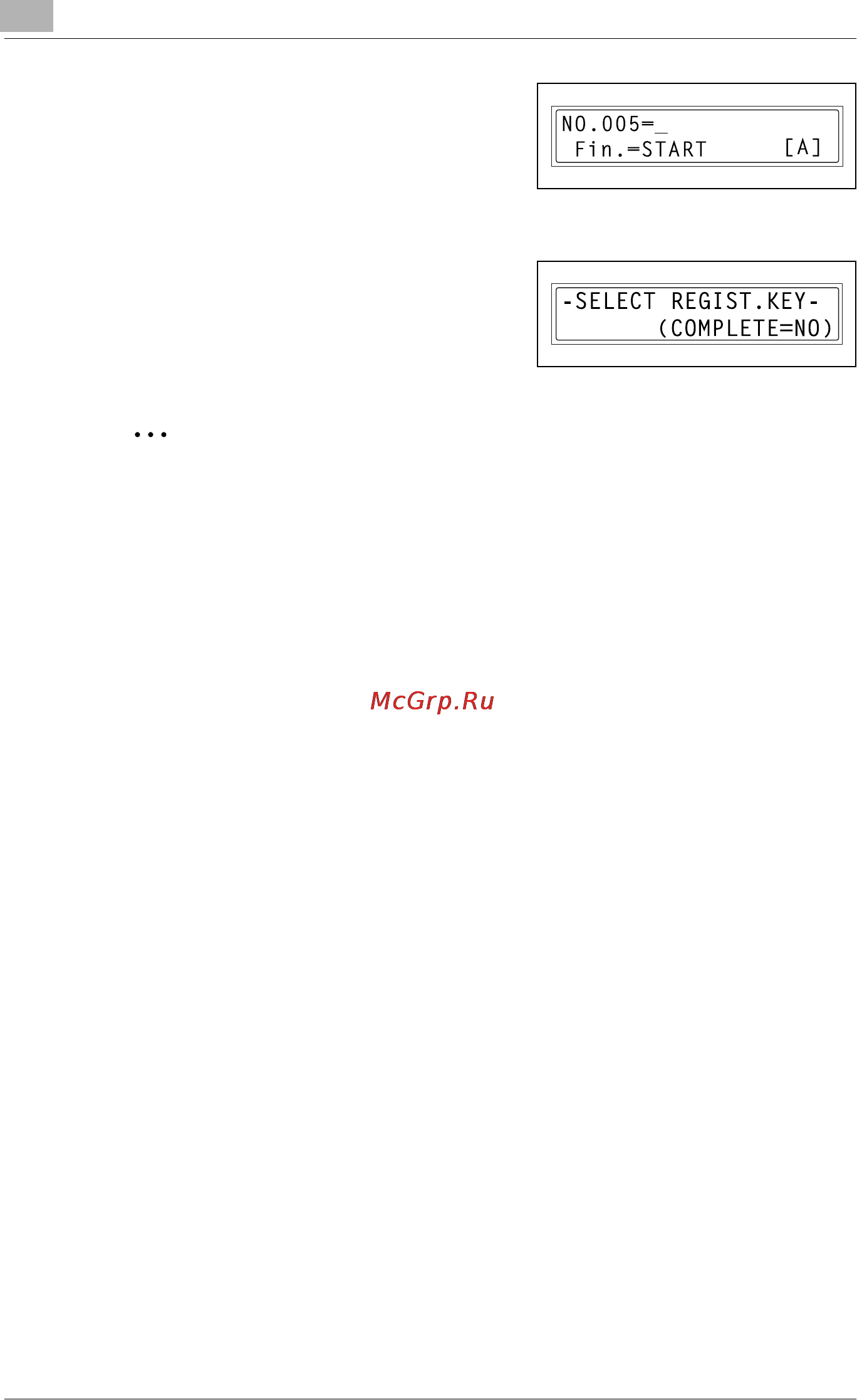

8 Press the [Start] key when you have

finished adding addresses.

– The settings are registered. To

add information for other group

dial keys, repeat steps 4 through 8.

9 Press the [No/C] key when you have

finished adding addresses.

The fax registration screen appears

again.

Note

For information on changing or deleting e-mail addresses that have al-

ready been registered, refer to the manual provided with the machine. To

delete the currently displayed destination, press the [No/C] key, and then

select a new recipient.

bizhub160_su502.book Page 42 Tuesday, May 17, 2005 8:19 AM
