Using internet faxing operations

6-20 SU-502

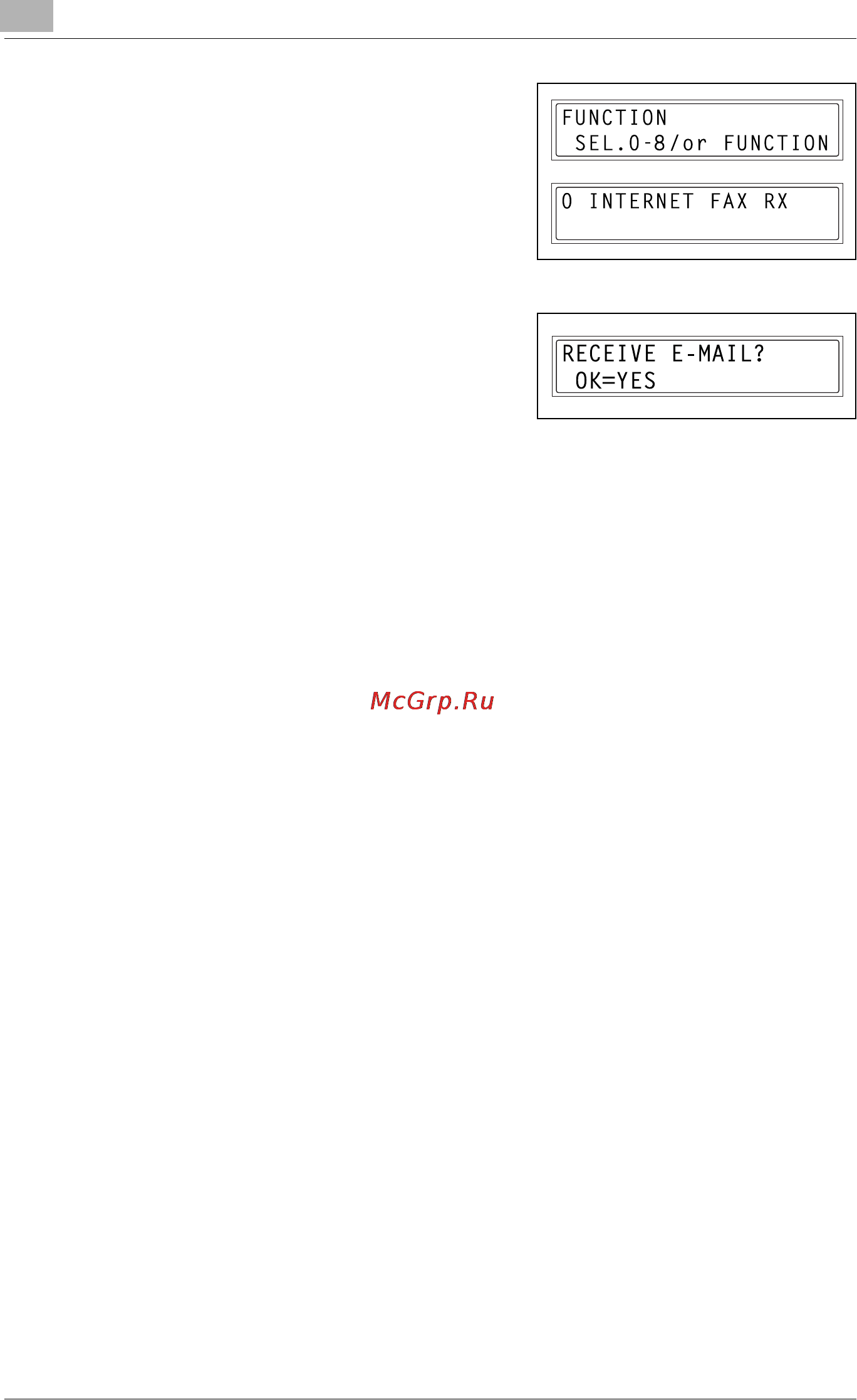

3 Press the [0] key on the 10-key pad.

Alternatively, press the [Function]

key 9 times to select INTERNET FAX

RX, and then press the [Yes] key.

4 Press the [Yes] key. The machine

checks the POP3 server for received

e-mail messages, then begins to

print any messages that have been

received. After checking for received

e-mail messages and printing them, the fax screen appears again.
